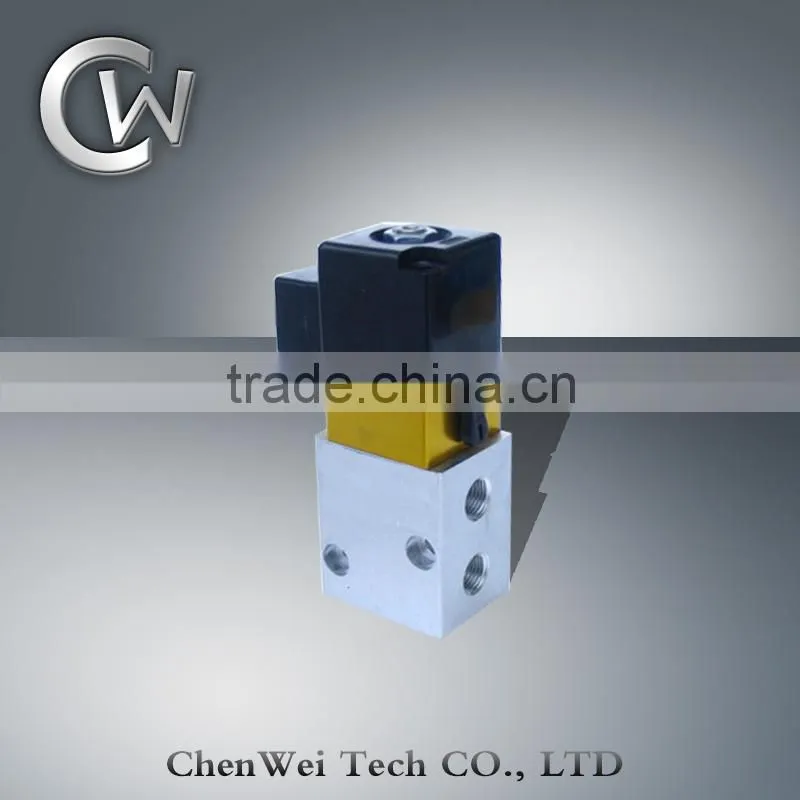

YH Series High Pressure Solenoid Valve-3 Way Solenoid Valve

Specifications

1:YH Series High Pressure Solenoid Valve-3 Way Solenoid Valve
2:3 way 2 position.
2:Port size:G1/4,G1/2
4:1 year warranty

YH Series High Pressure Solenoid Valve-3 Way Solenoid Valve

1.Orifice diameter: 8mm,15mm

2.Working pressure: 0.15-2.4Mpa

3.Max change frequency: ≤0.4s

4.Environment temperature: -10-50^oC

5.Apply temperature: 5-50^oC

6.Life: ≥1,500,000 times

How To Order:

Specification:

Specification	YH23JD-8	YH23JD-15
	YH23JD-8P²	YH23JD-15P²
Pressure Range	0.15~2.4MPa
Medium Temperature	~5~60℃
Applicable Medium	Air
Lubrication	Needles
Nominal Diameter	8mm	15mm
Direction Change Time	≤0.04S	≤0.08S
Pipe Size	G1/4	G1/2



Dimensions and Sizes:
