Home > Products > Directional Control Valve > Angle Seat Valve-2 Way 2 Position Pneumatic Angle Seat Valve

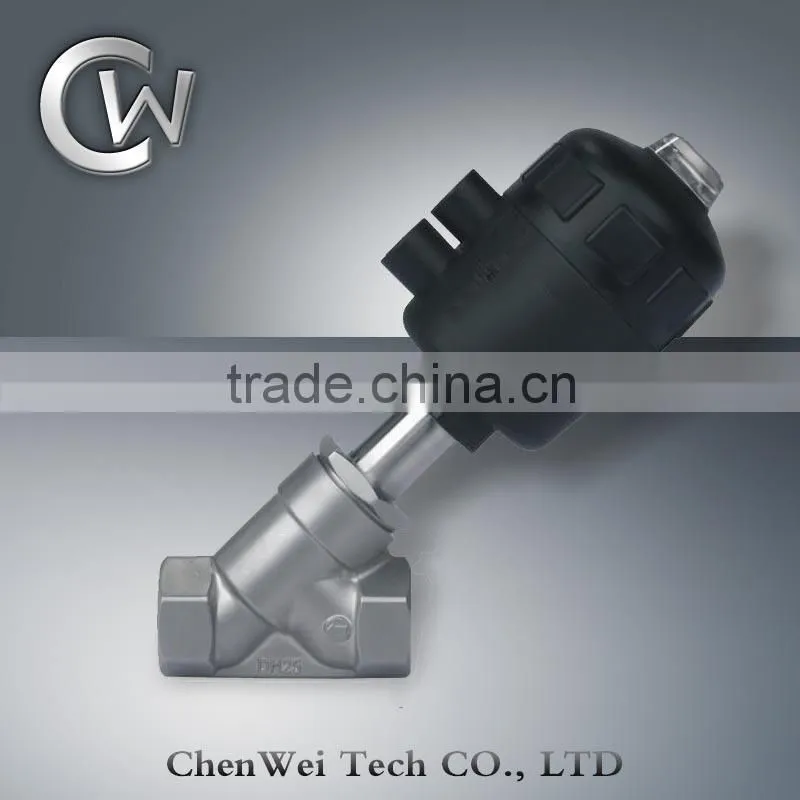

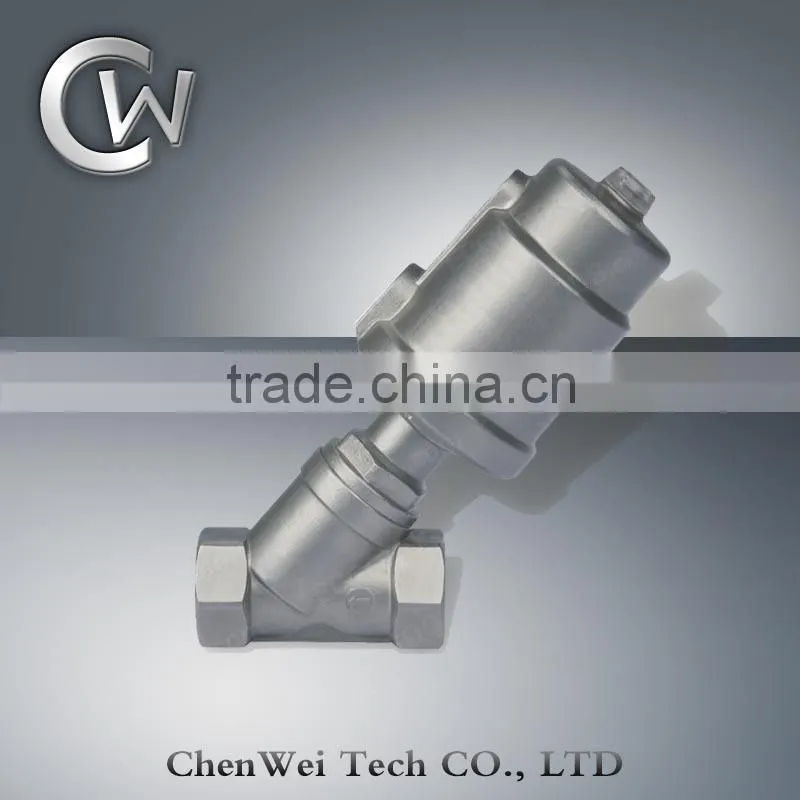

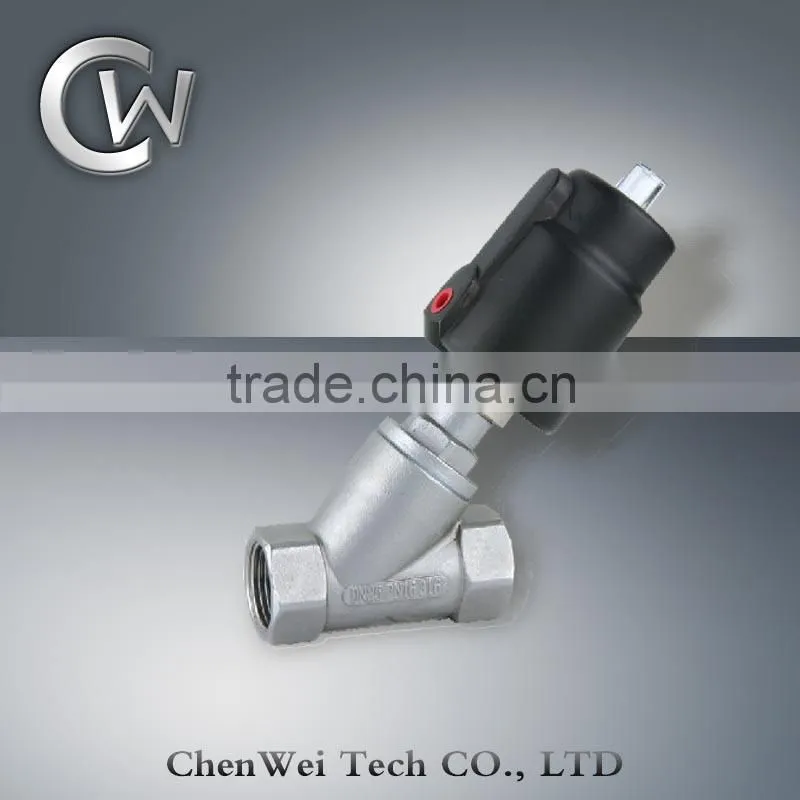

Angle Seat Valve-2 Way 2 Position Pneumatic Angle Seat Valve
- 1000 Piece / Pieces per Month
- ningbo or shanghai
- T/T Credit Card PayPal
Product Details
| Standard or Nonstandard: | Standard | Structure: | Regulating | Pressure: | Medium Pressure |
| Power: | Pneumatic | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
| Media: | Other, air | Port Size: | G1/2" TO G3" | Place of Origin: | Zhejiang, China |
| Model Number: | JZF15 TO JZF100 | Brand Name: | CW |
Product Description
Angle Seat Valve-2 Way 2 Position Pneumatic Angle Seat Valve
Features:
1) Connection type: female thread, flange.
2) Without a pilot solenoid valve
3) Simple frame, reliable action, easy maintenance
4) Valve body: 304 or 316 stainless steel
5) Anti-corrosive
6) Through flow, low fluid resistance
7) Light weight, low volume
8) Piston type air-operated valve
9) Open / close air source pipeline to control main valve
10) Easy to install, with infinitely rotatable actuator
11) With pilot air pressure, zero leakage, long service life
12) Optional anti-water-hammer function.
Specification:
Orifice size (mm) | Port size (G or NPT) | Kv (m3/h) | Operating pressure (bar) | Min. pilot pressure (bar) | Flow direction |
13 | 1/2” | 4.2 | 0~16 | 2.7~3.0 | Above seat |
20 | 3/4” | 8 | 2.7~3.4 | ||
25 | 1” | 19 | 2.7~5.0 | ||
32 | 11/4 | 27.5 | 3.6~5.0 | ||
40 | 11/2 | 42 | 3.6~6.2 | ||
50 | 2” | 52 | 3.6~7.4 | ||
65 | 21/2 | 77 | 3.6~10 | ||
80 | 3” | 110 | 3.6~10 | ||
For steam more than 180°C, max. Operating pressure is 10 bar | |||||
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
