Home > Industrial Equipment & Components > Valve > Ball Valve > 2 Way Electronic Auto Drain Water Valves

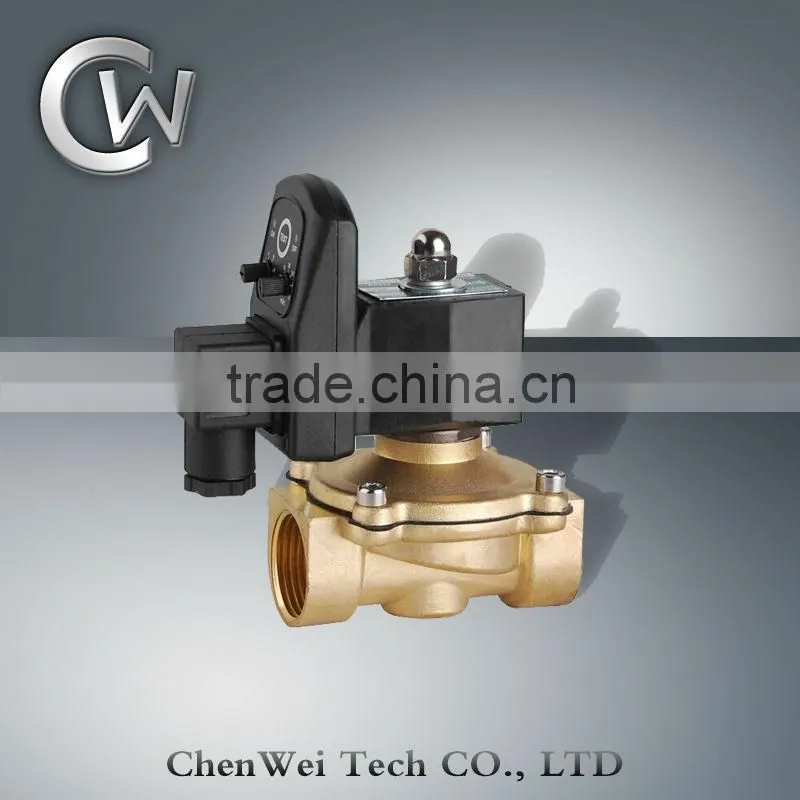

2 Way Electronic Auto Drain Water Valves

US$ 4 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Regulating

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Shanghai Chenwei Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Regulating

Pressure Medium Pressure

Power Pneumatic

Material Brass

Temperature of Media Medium Temperature

Media Other, air

Port Size G1/8, G1/4

Place of Origin Zhejiang, China

Model Number 2W250-25

Brand Name CW

Specifications

1.2 Way Electronic Auto Drain Water Valves
2.Port size:1/8", 1/4" ,3/8" ,1/2",3/4", 1" ,1-1/4" ,1-1/2" ,2"
3.1 year warranty

2 Way Electronic Auto Drain Water Valves

Features:

1:Electronic drain valve is combined by solenoid valve and electronic timer.

2:It is to timing automaticly discharge of condensed water from compressed air.

3:It is widely used in filter, oil-water separator, freeze dryer, air compressor, storage tanks, drop foot compressed air system components.

4:The discharge time and interval time can be adjusted according to different needs.

Specification:

Timer	MIC DRAIN
Time interval (OFF)	0.5-45minutes
Emission time (ON)	0.5-10 Seconds
Manual test button	A, micro switch
The power supply voltage	24-240V AC/DC 50/60Hz (voltage 380VAC can special order)
Current consumption	The maximum 4mA
Environmental temperature	-40°C—+60°C
Protection grade	IP65
Shell material	Flame retardant ABS
Electrical connections	DIN43650A
The indicating lamp	LED indicates the power on / off
Design standard	VDE 01 10C
Valve	MIC-A/B
Species	Two two straight valve
In / out interface size	1/2 "3/8" or 1/4"
The maximum working pressure	16Bar;40Bar;60Bar;80Bar
Minimum / maximum ambient temperature	2°C/55°C
The maximum temperature of the medium	90°C
The valve body	Forging brass, flow aperture 5.0mm (all stainless steel valve can special order)
Insulation	Heat group H
Protection grade	IP65
Voltage	24-230V AC/DC(voltage 380VAC can special order)
Voltage range	+/-10%
Installation position	Arbitrarily
