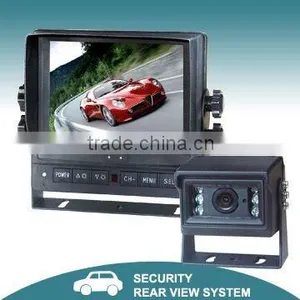

5.6 Inch Digital Color reversing camera kits features:
Features of monitor:
5.6 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
8 languages selectable for user operation
Automatic back-lights for buttons.
Full-function remote controller.
Multiple video formats available: AUTO /PAL/ NTSC
13-Pin: 3 cameras inputs
22-Pin: 4 cameras inputs, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Speaker available and users can control the sound level from control panel.
The LOGO displays on the monitor when switched on, and disappears while there is video signal. Auto switch off if video signal losts in 3 minutes.
5.6” COLOR TFT LCD DIGITAL MONITOR- MO-115D SPECIFICATIONS:
Product: 5.6" TFT- LCD Color digital monitor.
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (10-32V) , Automobile adapter.
Power consumption: about 5W .
Outer dimension: 145mm(W)x136mm(H)x31.5mm(T) (without flush mount),
182mm(W)x155mm(H)x42.5mm(T) (with flush mount),
Dot pitch: 0.0588 (H) × 0.1764 (V).
Resolution : 640 x 3(RGB) x 480
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20~+70oC,RH90%.
Storage temperature: -30~+80oC,RH90%.

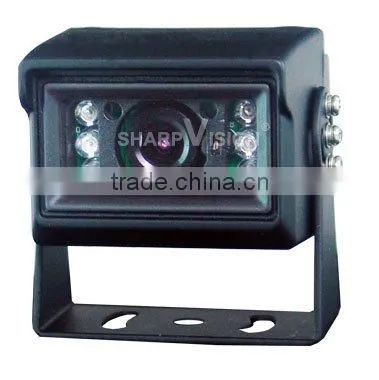

Features of Camera:
Compact size for more convenient installation
Waterproof and vandalproof
Night vision available, day/ night sensor for automatic adjustment
IR distance: 8 m
Infrared LED light: 6
Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed
