5" Digital Rear View System
Features:
5 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image adjustable for Horizontal, Vertical, Mirror and Normal viewing
8 languages selectable for user operation
Automatic backlighting for buttons.
Full-function remote control.
Multiple video formats available: AUTO/ PAL/ NTSC.
Up to 3 AV inputs.
On-board speaker.
Operates from 10 - 32V. Supports 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
OSD keeps normal image even if it is mirror image in horizontal.

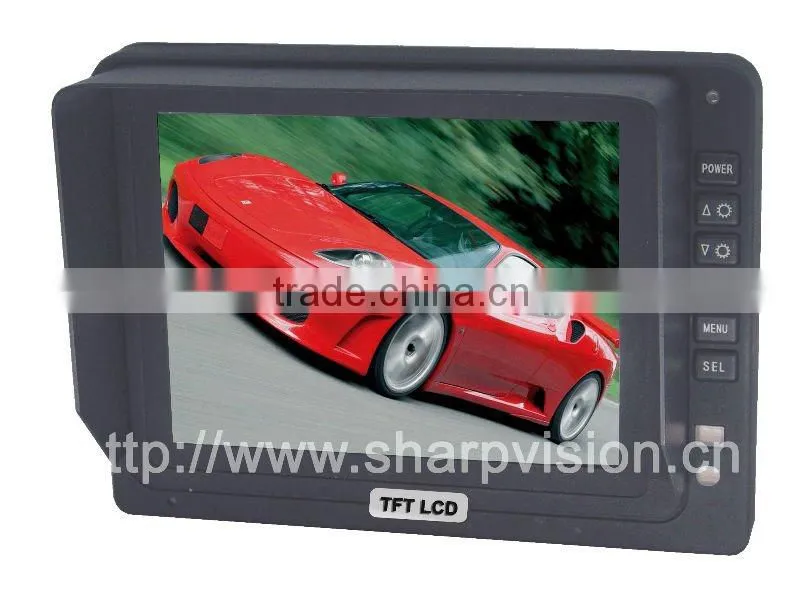

5" TFT LCD Color Monitor with Digital Screen Specifications:
Product: 5" TFT LCD color monitor with digital screen
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (10-32V).
Power consumption: about 5 W .
Outer dimension: 147.6mm (W) × 109mm (H) × 26.5mm (T) (without flush mount),
165mm (W) × 126mm (H) × 29.2mm (T) (with flush mount).
Dot pitch: 0.0529(H) × 0.1587 (V).
Resolution: 640 x 3(RGB) x 480 .
Color depth:24 bit
Display colors:16.7M dithering.
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20 oC ~+70oC,RH90%.
Storage temperature: -30 oC ~+80oC,RH90%.

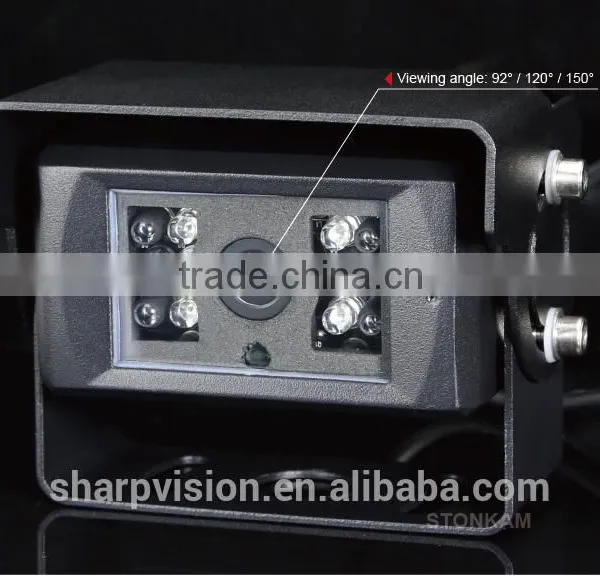

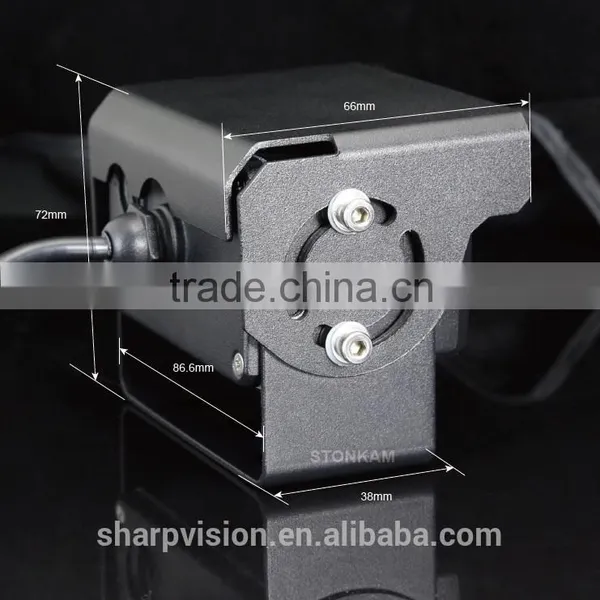

Features of camera:
Super wide angle (180°)
Automatic heating when the camera's running temperature is below 10 (optional)
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Excellent night vision
IR distance: approx. 10m
Infrared LED light: 12

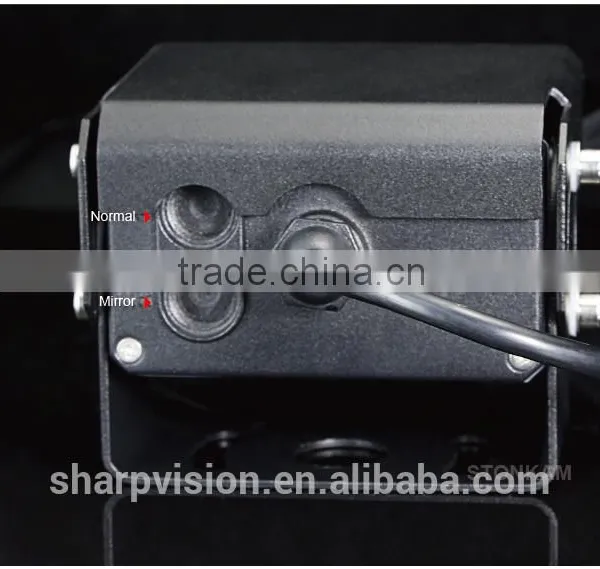

Mirror / Normal image switch (depending on the chips)
Testing Standard: MIL-STD-105E
Tests
Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
