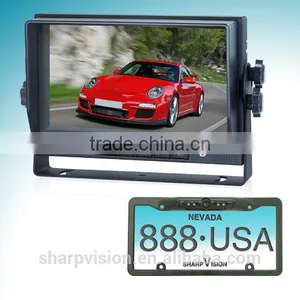

7" color digital car rear view systems:
Features of monitor:
7 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
Multi-languages of display available: English, French, Portuguese,Spanish, Russian, Dutch, German, Italian.
Automatic front panel LED activation at night convenient for the users
Mirror and normal image switch available
Full-function remote controller
Multiple video formats available: PAL /AUTO/NTSC
13-Pin: 3 cameras inputs and 1 DVD input.
22-Pin: 4 cameras inputs, 1 DVD input, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Built-in speaker
Automatically switches to back-up, left or right side camera views.

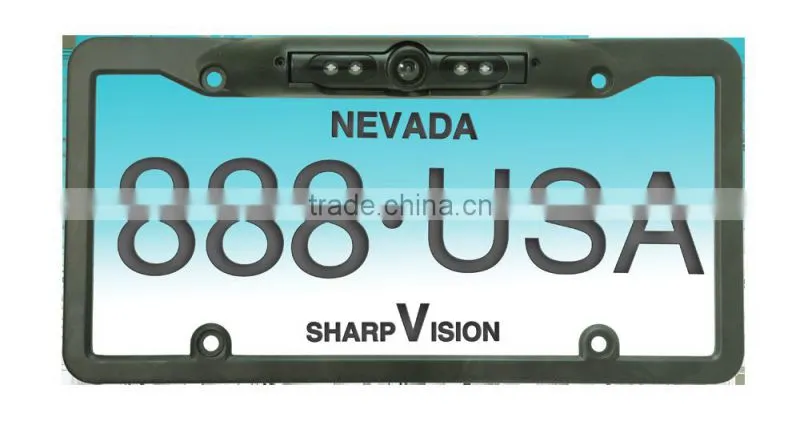

Features of Camera:
Night vision available
Waterproof camera
Easy to install
Super wide angle (180° )
Super low illumination
Distance label selectable to be open or closed
Black and silver housing available
Specification:
7" COLOR TFT LCD Monitor- MO-127
Display component: 7" TFT-LCD monitor
Audio output: 1W
Loudspeaker: one 4.0cm round loudspeaker
Connecting Terminal: Earphone jack, audio / video (AV) input jack, external power supply input jack,
Camera connector.
Power supply: automobile storage battery(12-32V), automobile adapter
Power consumption: about 12W
Outer dimensions: 182mm(W) x 122mm(H) x 26(T) without back shield;
198mm(W) x 138mm(H) x 31mm(T) withback shield
Dot pitch: 0.321(H) x 0.370(V)
Resolution: 480 x 3(RGB) x 234
Contrast: 400:1
Brightness: 350cd/m²
Viewing angle: U: 45 / D: 65, R/L: 65
Operating temperature: -20~+70°C, RH90%
Storage temperature: -30~+80°C, RH90%
