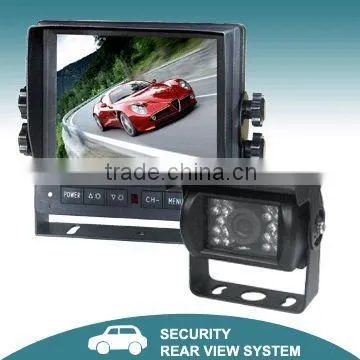

5.6" Digital Vehicle Reversing System, Car Reversing System

5.6" Digital Vehicle Reversing System, Car Reversing System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Reverse Camera System
Voltage:
DC 12V
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Reverse Camera System
Voltage DC 12V
Place of Origin Guangdong, China
Brand Name OEM
Model Number MO-115D,CW-073

5.6" Digital Vehicle Reversing System, Car Reversing System features:



Features of monitor:

5.6 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
8 languages selectable for user operation
Automatic back-lights for buttons.
Full-function remote controller.
Multiple video formats available: AUTO /PAL/ NTSC
13-Pin: 3 cameras inputs
22-Pin: 4 cameras inputs, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Speaker available and users can control the sound level from control panel.
The LOGO displays on the monitor when switched on, and disappears while there is video signal. Auto switch off if video signal losts in 3 minutes.

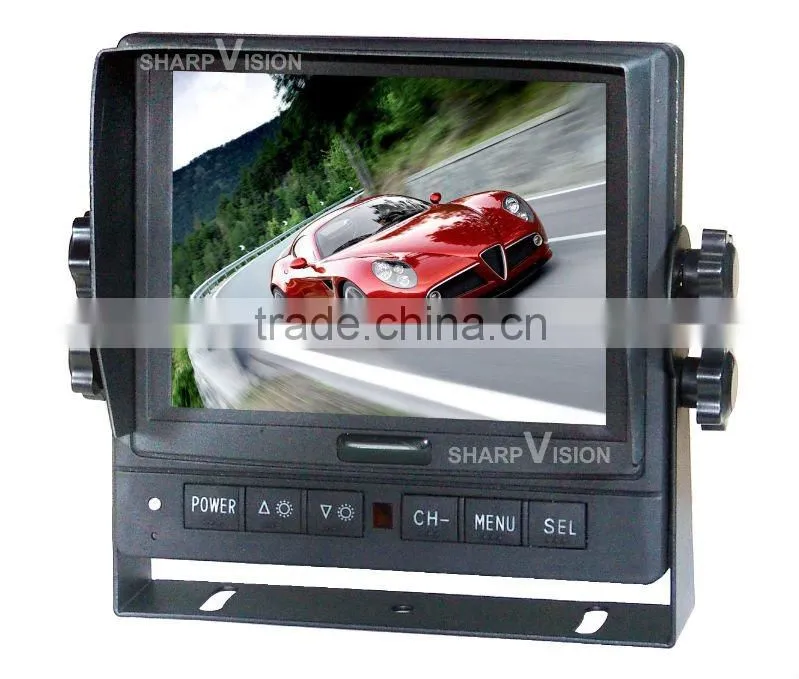

5.6” COLOR TFT LCD DIGITAL MONITOR- MO-115D  SPECIFICATIONS:
Product: 5.6" TFT- LCD Color digital monitor.
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (10-32V) , Automobile adapter.
Power consumption: about 5W .
Outer dimension: 145mm(W)x136mm(H)x31.5mm(T) (without flush mount),
182mm(W)x155mm(H)x42.5mm(T) (with flush mount),
Dot pitch: 0.0588 (H) × 0.1764 (V).
Resolution : 640 x RGB x 480
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20~+70oC,RH90%.
Storage temperature: -30~+80oC,RH90%.

5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System

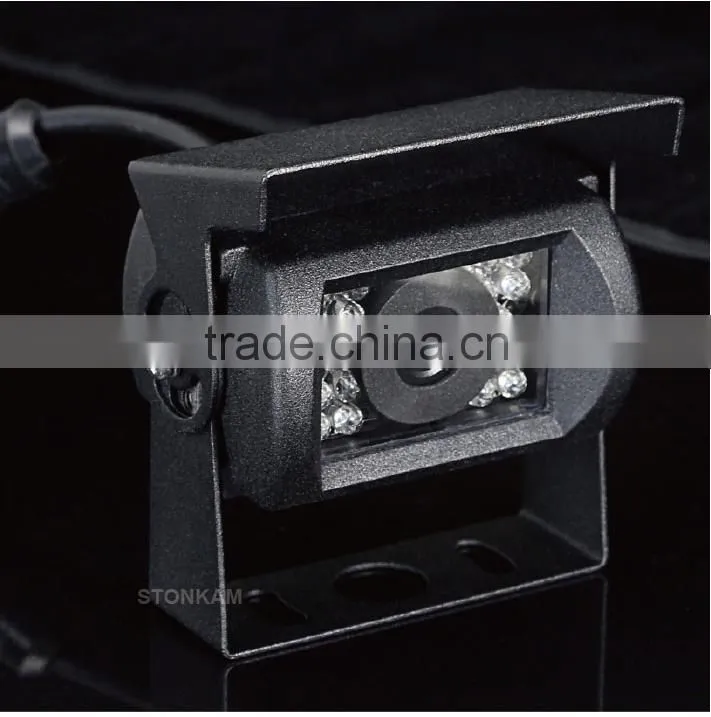

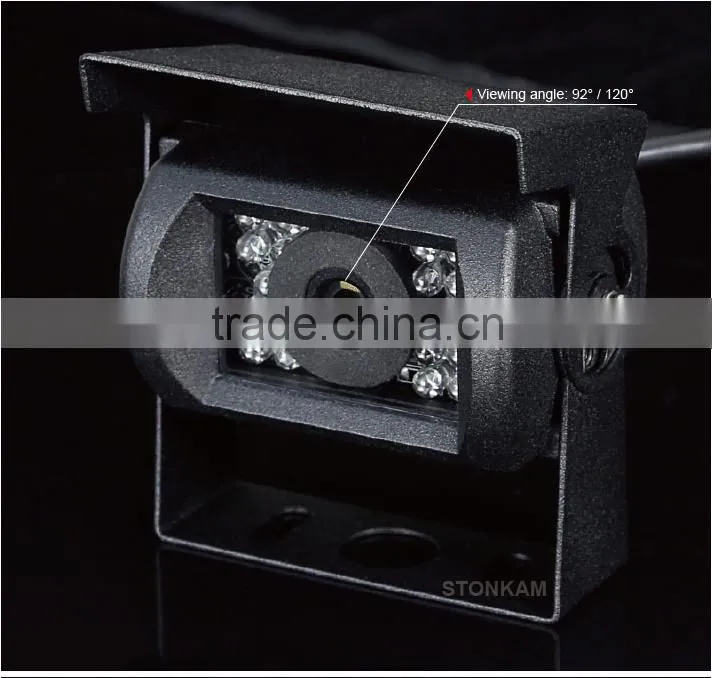

Features of Camera:

Waterproof and weather resistant housing for outdoor use

Night vision available, day/ night sensor for automatic adjustment

IR distance:  15m

Infrared LED light: 18

Mirror/ Normal image switch

Distance label selectable to be open or closed





5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System







5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System5.6" Digital Vehicle Reversing System, Car Reversing System
