4.3 inch car reversing mirror system :

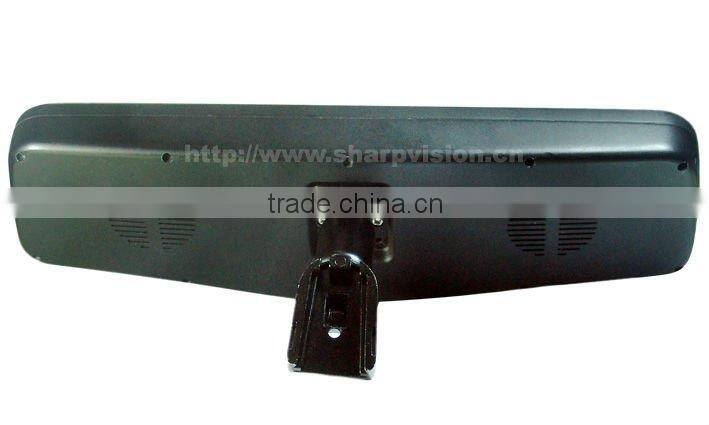

Mounting position: inner side of vehicle windshield (rear mirror position of vehicles)

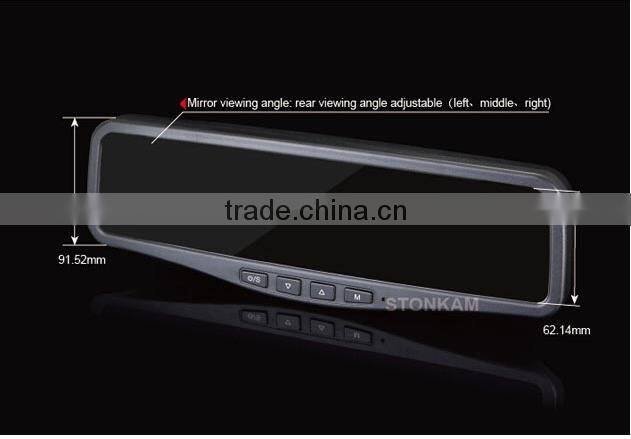

Mirror viewing angle: rear viewing angle adjustable
Shatterproof standard:2.84G
Working condition: Performs in rugged conditions; operating temperature: -20°C~+70°C
Distance label can be turned on or off, and can be adjusted up and down.
Backlighting for buttons: automatic backlighting in dim light.
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
Power supply for camera, easy installation.
Wide voltage input: support 12V and 24V system

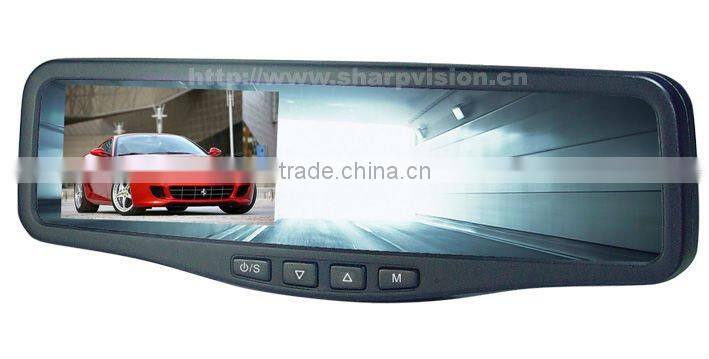

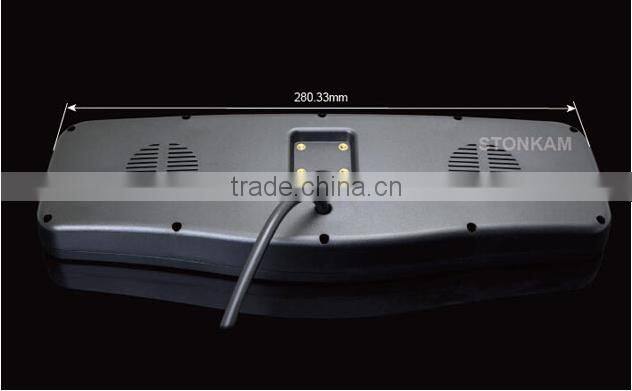

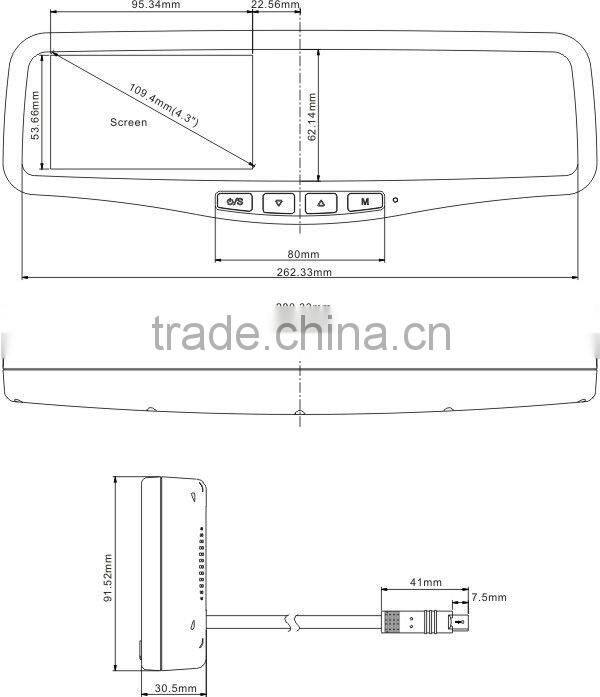

4.3 inch rearview mirror monitor (MO-144D)
Main chip: MST703.
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 2 video inputs and power supply for camera
Distance label: Can be adjusted up and down
Auto trigger:2 camera trigger wires,once triggered, automatically switches to its corresponding camera
Frame ratio: 16:9
Dot pitch: 0.198(H) ×0.198(V)
Resolution: 480(H) ×272(V)
Brightness: 500 Cd/m2
Contrast: 600:1
Viewing angle: U:60°,D:70°, L/R:75°
Power consumption: 3W
Power supply: DC12-32V
Operating temperature: -20°C~+70°C
Storage temperature: -40°C~+80°C

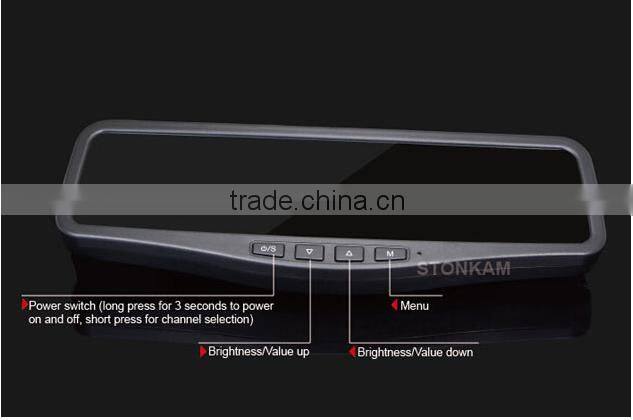

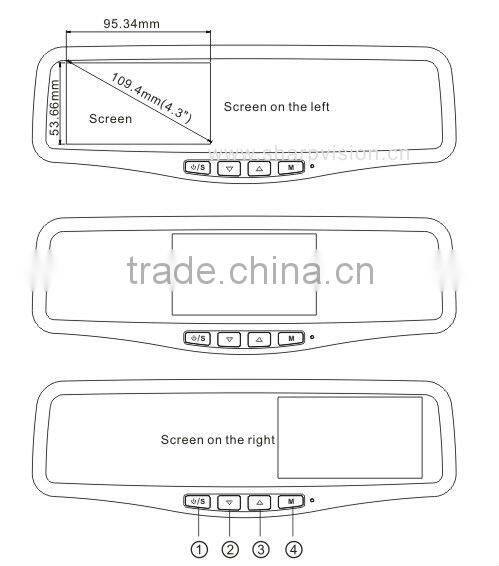

| 1 | Power switch (long press for 3 seconds to power on and off, short press for channel selection) |
| 2 | Volume/Value up |
| 3 | Volume/Value down |
| 4 | Menu |

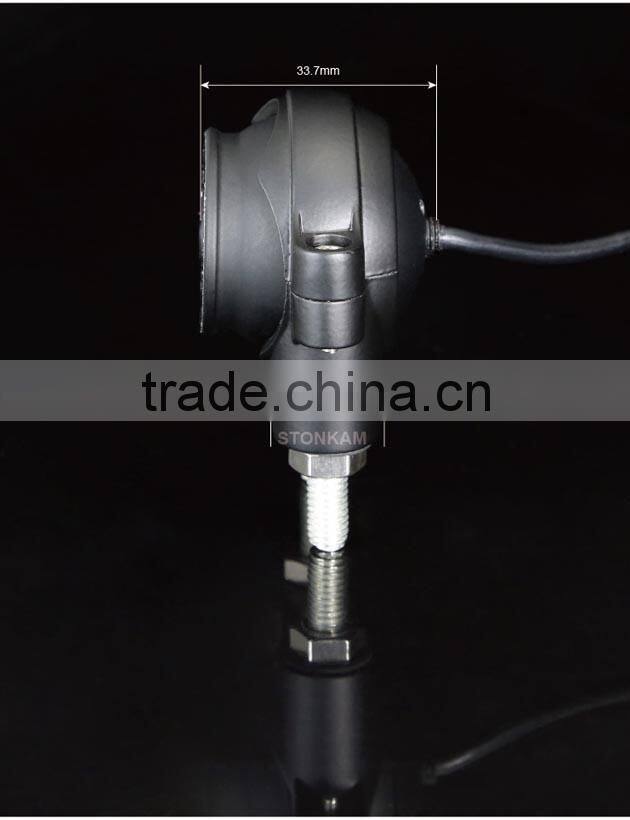

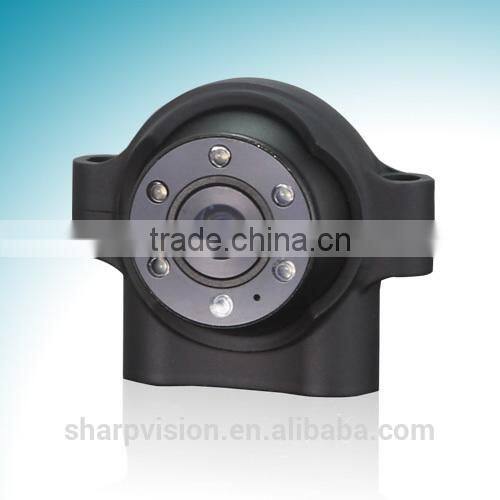

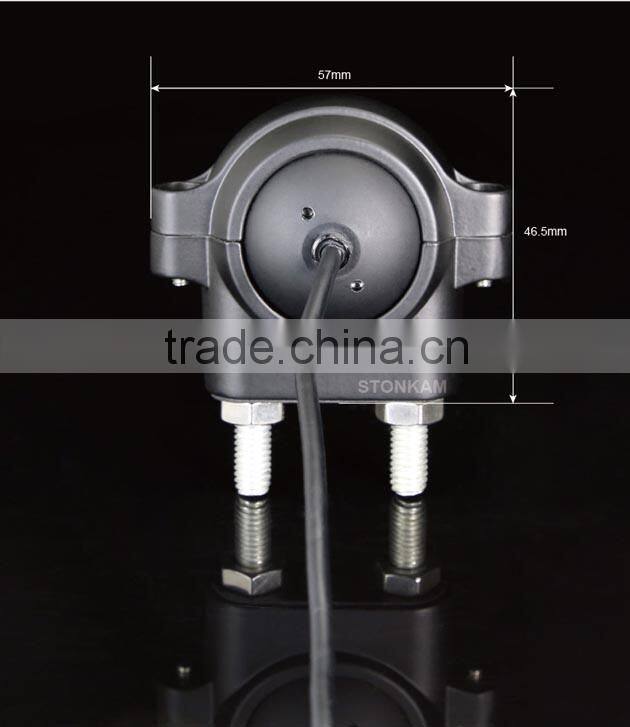

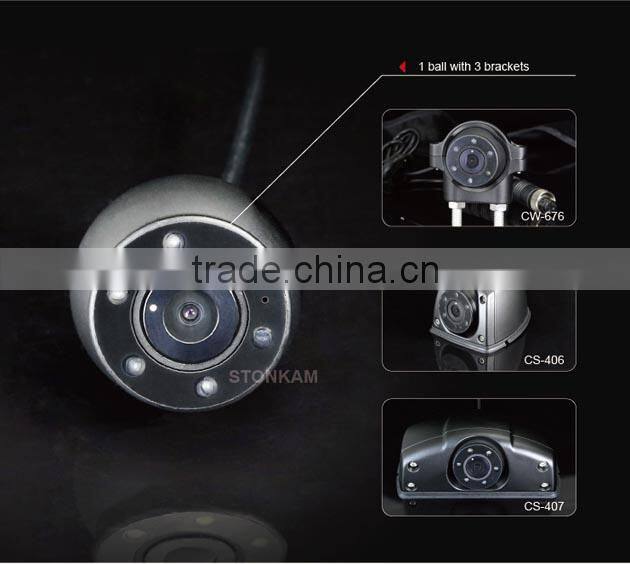

Mobile camera(cw-676):

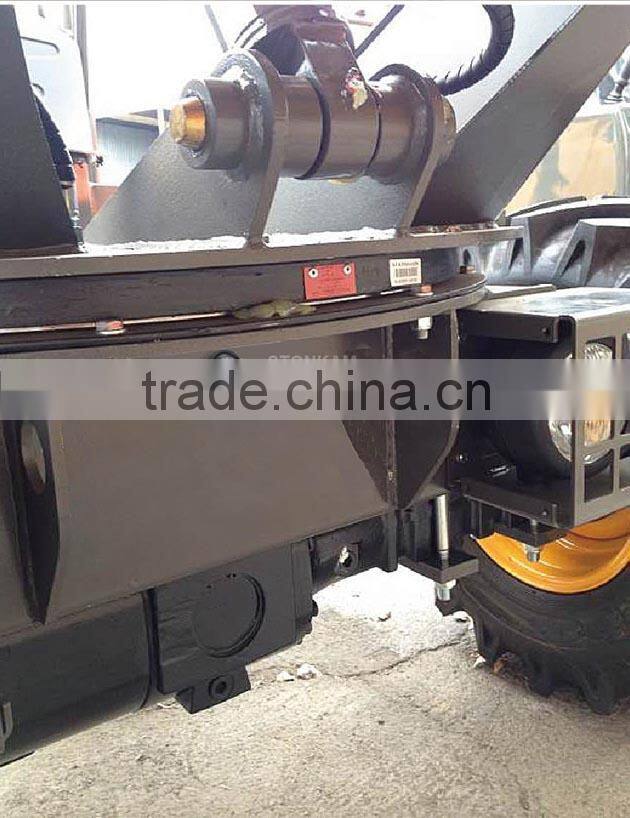

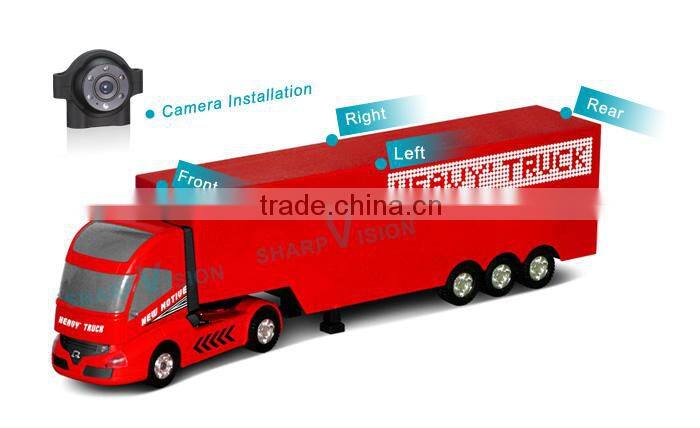

Flexible installation: Can be mounted on rear, front, or either side of vehicles

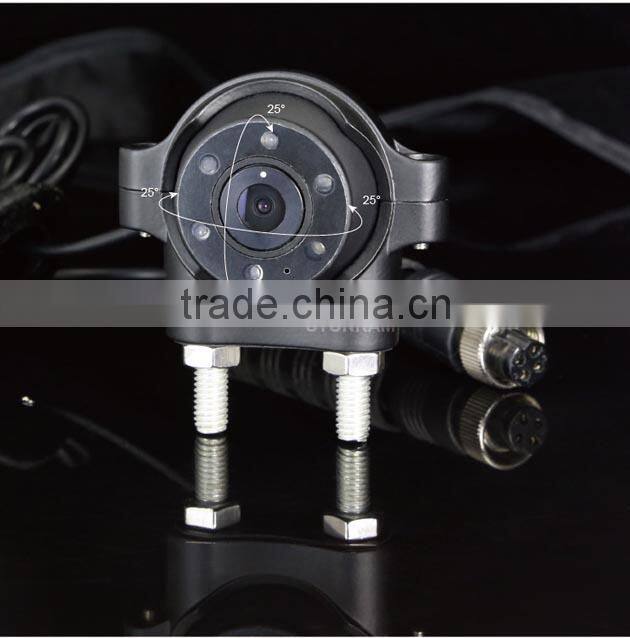

Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150°)
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
Mobile camera features(PC1089):
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
With infrared lights; Night vision can auto switch to B/W mode
P/N available.
