7" rear vision system:
Waterproof resistant: IP66.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing, menu characters won’t be reversed
when mirror image is set
8 languages available to select
Automatic backlighting for screen, automatic adjust to the brightness of environment
System format: NTSC/PAL/AUTO
four cameras with trigger lines, when the camera is triggered, the picture switches to the triggered camera
automatically
Auto scan, scan channel and time can be set according to user’s need
Reverse warning yardstick, can be adjusted up and down, left and right
Easy installation and convenient use, with innovative functions.
Can be used both in vehicle, shipment surveillance and security monitor in the open air
13Pin: Up to 3 AV inputs. Three cameras input on the rear and one A/V input on the front panel.
22Pin: Up to 4 AV inputs, 1 video output and 1 audio output.

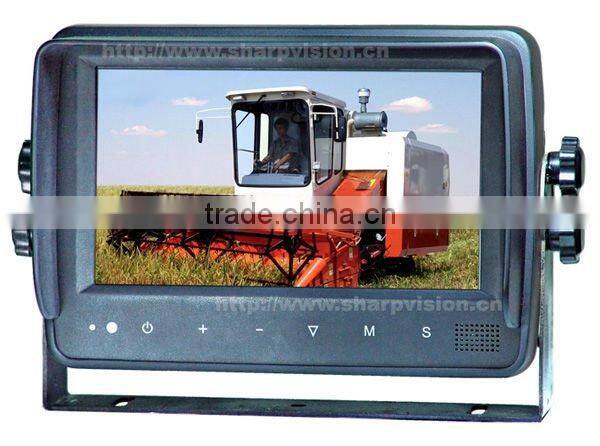

7’’ Digital Waterproof Monitor
LCD size:7’’
loudspeaker: 1W/8Ω
Power supply: 10V~32V
Energy consumption: max. 6W

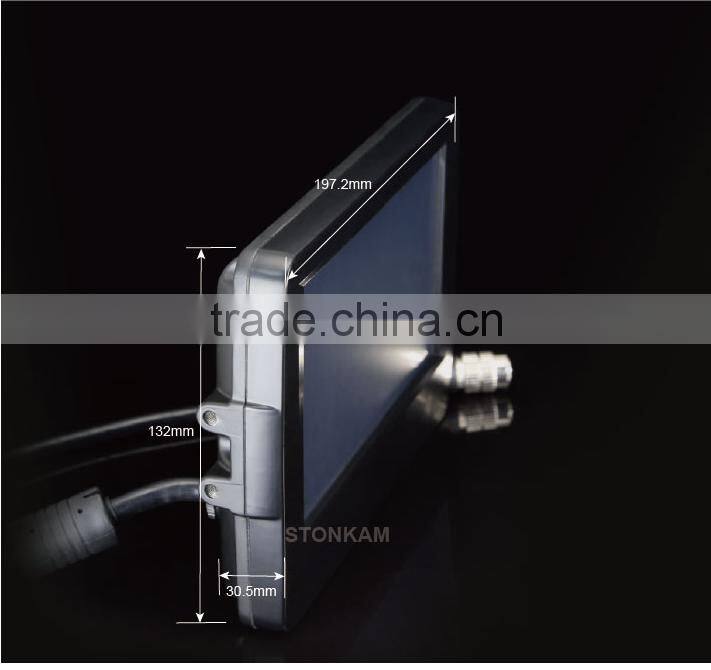

Outer dimension: 197.2mm (W) x 132mm(H) x 30.5mm(T).
Resolution: 800 x 3(RGB) x 480
Contrast: 500: 1
Brightness: 400cd/m²
Viewing angle: U: 50°, D: 70°, R/L: 70°
Aspect ratio: 16: 9 / 4: 3
Operating temperature: -20 ~ +70 °C RH90%
Storage temperature: -30 ~ +80 °C RH90%

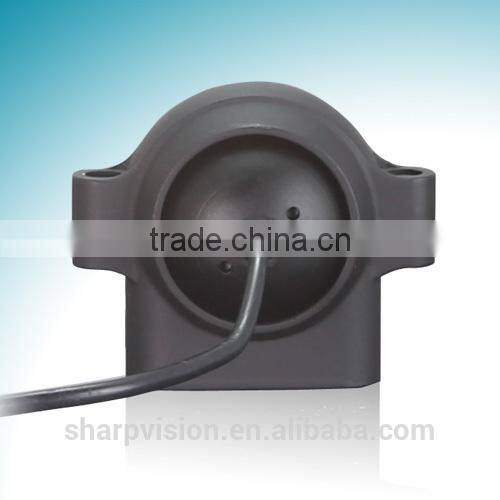

Mobile camera(cw-676):
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150°)
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
Mobile camera features(PC1089):
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
With infrared lights; Night vision can auto switch to B/W mode
P/N available.

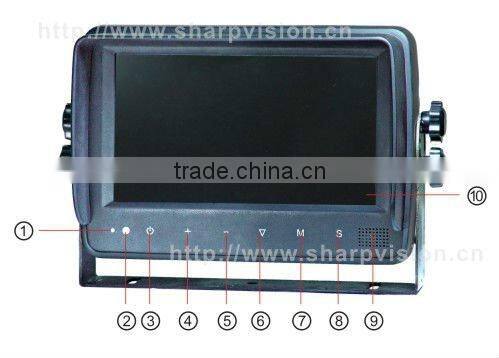

| 1 | Light level sensor |
| 2 | Remote control sensor |
| 3 | Power switch / Power indicator |
| 4 | Brightness increase |
| 5 | Brightness decrease |
| 6 | Channel selection- |
| 7 | Menu |
| 8 | AV1 / AV2 / AV3 selector |
| 9 | Loudspeaker |
| 10 | Digital color LCD screen |

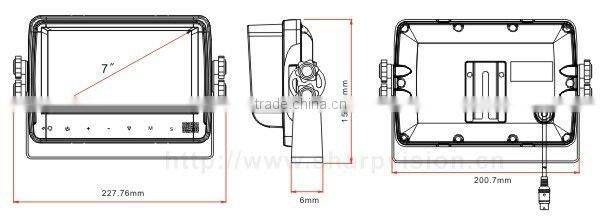

Dimensions:
