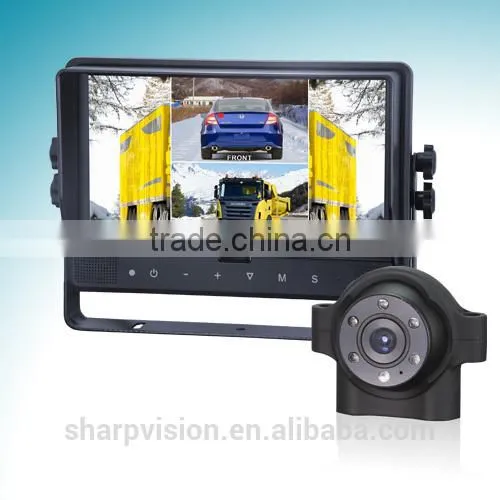

9 inches Digital car audio system with reverse camera
quad monitor features:
9 inches Digital Quad Monitor
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; characters of the menu will not inverse when set to mirror image
Single, dual, triplex, quad, trefoil, Y-split image and PIP functions available
System format: NTSC/PAL
Five trigger lines; once a trigger line is activated, image automatically switches to its corresponding camera. Trigger priority is available
Auto scan, scan channel and time can be set according to the users' demand
Reverse warning yardstick

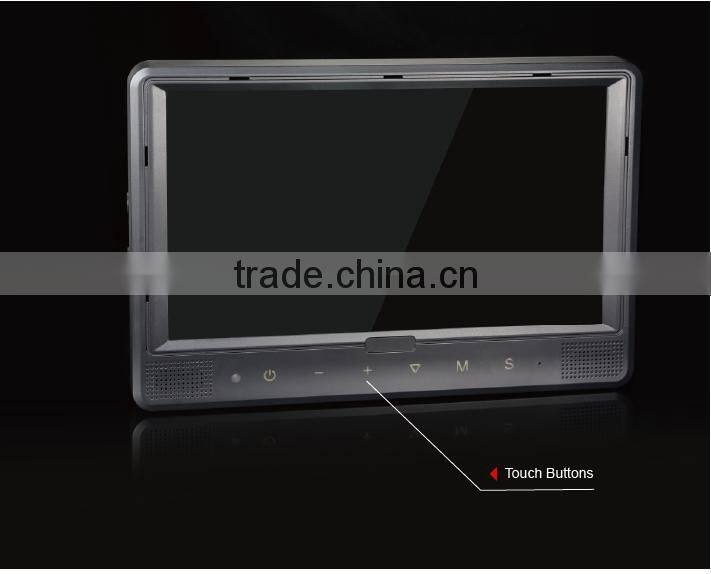

Touch screen available, can recognize down, left, right side "swipe"; support two-point touch to realize channel switching
Support level 5 LCD manual backlight adjustment ,level 2 automatic adjustment
Easy installation and convenient operation, with innovative functions
Applicable to indoor / outdoor security systems, vehicle and ship surveillance
22-Pin:4 AV inputs,1 video output, and 1 audio output
One VGA image input, resolution: 800 x 600 (60Hz), 640 x 480(60Hz), one VGA audio input
With touch screen signal output, under the state of VGA display, when it's connected to computer through USB, you can control the computer through the touch screen

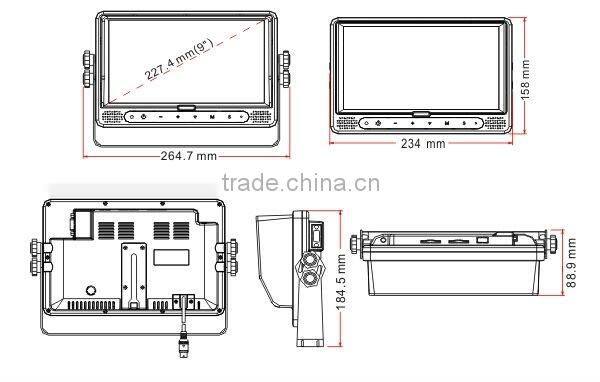

9 inches Digital Quad Monitor MO-146D
1. Dimension:9”TFT-LCD color digital monitor with built-in quad.
2. TV System: NTSC/PAL
3. Resolution: 800 x 3(RGB)x480(H)
4. Brightness: 400cd/m²
5. Contrast: 500:1
6. Viewing angle: U:50°/D:70°;R/L:70°
7. Aspect ratio: 16:9
8. Operating Temperature: -20°C - +70 °C
9. Storage Temperature: -30°C - +80 °C
10. Power consumption:max.25W
11. Power for cameras:max. 4X300mA,12V
12. Input voltage:10-32V
13. Video inputs:4 video inputs for cameras:peak value:1Vp-p,impedance:75ohm
14. Audio inputs:4 audio inputs for cameras:peak value:1Vp-p,impedance:4.7Kohm
1 AUX audio input.
15. Video outputs:1 REC video output: peak value:1Vp-p,impedance:75ohm
1 LIVE video output: peak value: 1Vp-p, impedance: 75 ohm.
16. 16.Audio output: 1 LIVE audio input: peak value:1Vp-p,impedance:4.7Kohm
Mobile camera(cw-676):
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150°)
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
Mobile camera features(PC1089):
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
With infrared lights; Night vision can auto switch to B/W mode
P/N available.
