truck camera system:
Waterproof resistant: IP66.
Support 3 cameras
8 languages available to select
Each camera can set mirror image separately
Power supply 10-32V, with short circuit protection function
Three cameras with trigger lines, when the camera is triggered, the picture switches to the triggered camera automatically
Priority of trigger lines: BA>LH>RH
Reverse warning yardstick
Automatically turn on and switch to the triggered camera when it is triggered in the standby statuss
Can be used both in vehicle, shipment surveillance and security monitor in the open air
Easy installation and convenient use, with innovative functions.

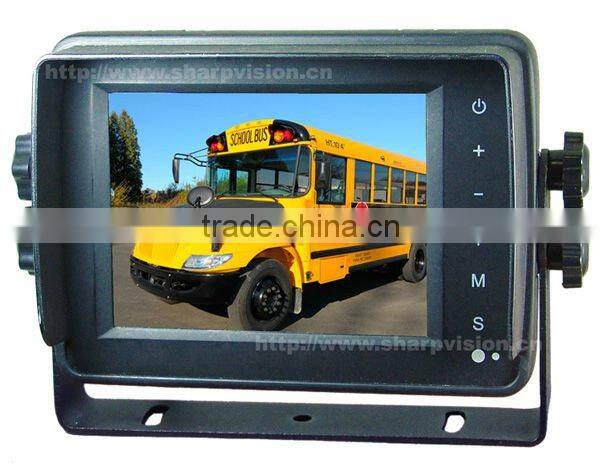

5’’ Digital Waterproof Monitor
LCD size:5’’ Digital Monitor
System format: NTSC/PAL
Resolution: 640 x 3(RGB) x 480
Brightness: 200cd/m²
Contrast: 500: 1
Viewing angle: up: 50°, down: 70°, left: 70°, right: 70°
Aspect ratio: 4: 3
Operating temperature: -20 ~ +70 °C RH90%
Storage temperature: -30 ~ +80 °C RH90%
Energy consumption: max. 6W
Power supply: 10V~32V
Dot pitch: 0.0529(H) × 0.1587 (V).
Video inputs: 3 cameras’ video input: peak value:1Vp-p, impedance:75 Ohm
Audio inputs: 3 cameras’ audio inputs, peak value:1Vp-p, impedance:4.7k Ohm
Loudspeaker: 1W/8Ω
Mobile camera(cw-676):
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150°)
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
Mobile camera features(PC1089):
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
With infrared lights; Night vision can auto switch to B/W mode
P/N available.

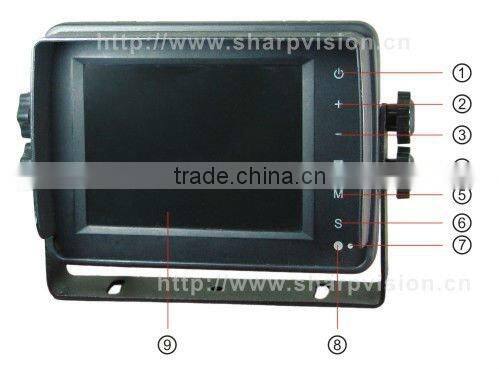

| 1 | Power switch / Power indicator |
| 2 | Brightness increase |
| 3 | Brightness decrease |
| 4 | Channel selection- |
| 5 | Menu |
| 6 | AV1 / AV2 / AV3 selector |
| 7 | Light level sensor |
| 8 | Remote control sensor |
| 9 | Digital color LCD screen |

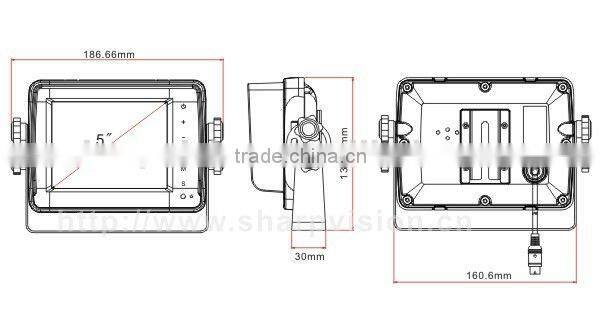

Dimensions:
