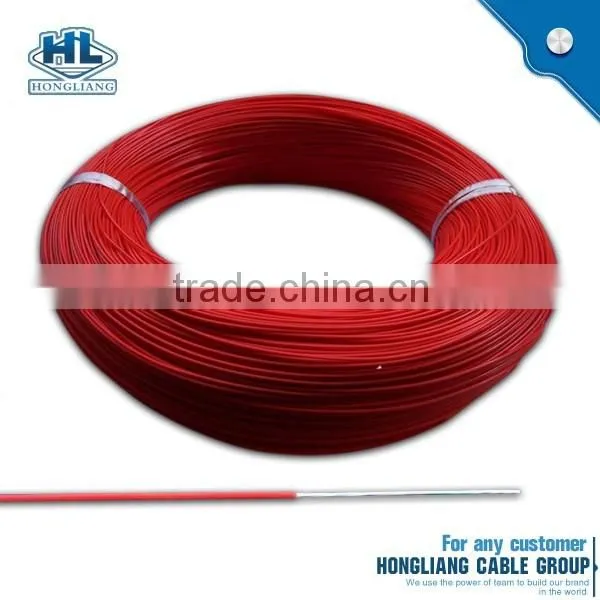

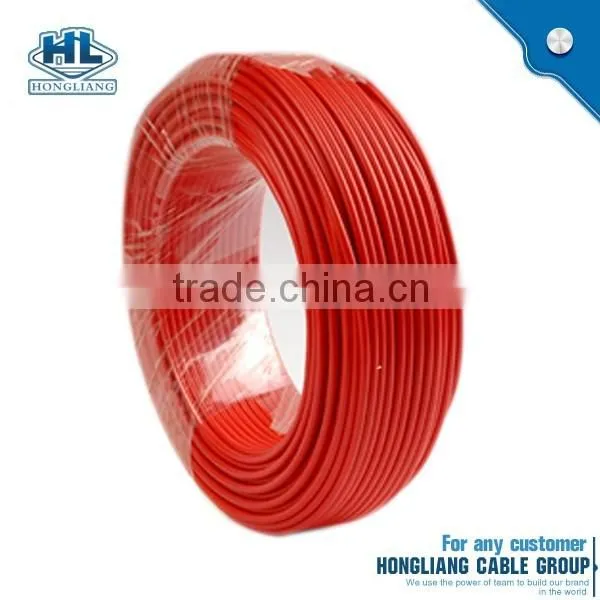

item name: 60227 IEC 300/500v 10NYY 1.5,2.5mm Cu PVC flexble flat cable .
the products can be used for power,lighting or telecommunication equipment,household electric appliance,meter and instrument,etc
A. Uo/U is 450/750 and 300/500.
B. Long time working temperature of or below 70°C is required for all cables or wires,except Model No BV-90 that can stand temperature up to 90°C.
C. Temperature should be above 0°C when laying the cables or wires.
60227 IEC 300/500v 10NYY 1.5,2.5mm Cu PVC flexble flat cable :

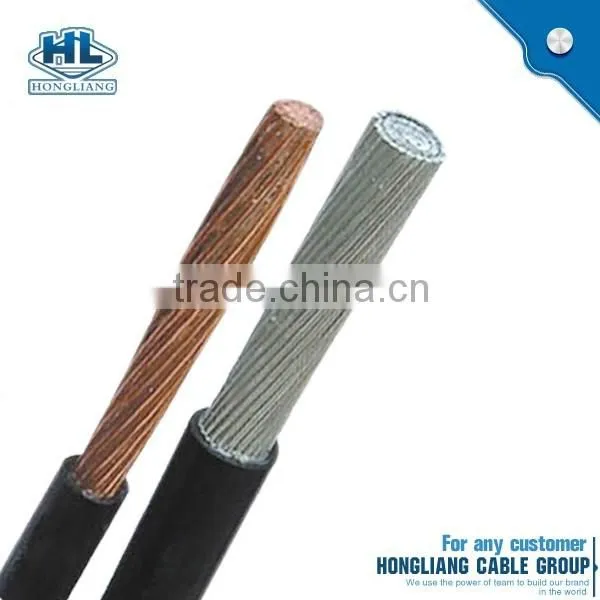

* Copper (aluminum) conductor PVC insulated wires (BV)
* Copper conductor PVC insulated flexible wires (BVR)* Copper (aluminum) conductor PVC insulated PVC sheathed round wires

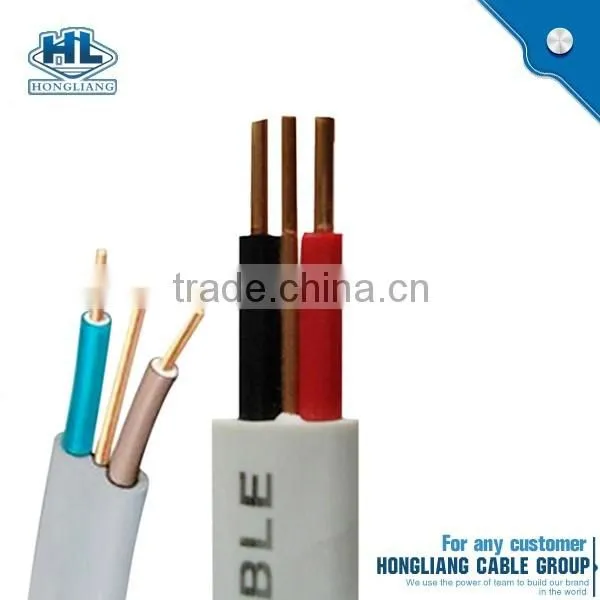

* Copper (aluminum) conductor PVC insulated PVC sheathed flat wires
* Copper conductor PVC insulated flat flexible connectors
* Copper conductor PVC insulated PVC sheathed round flexible connectors* Sizes: 0.5-185mm2*
Relative manufacturing standards: IEC227, BS6004, AS/NZS5000.2
1.Wire production with 30 years' experience
2.Prompt delivery, quantity and quality assured - CCC
60227 IEC 300/500v 10NYY 1.5,2.5mm Cu PVC flexble flat cable list:
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Maximum outer diameter (mm2) |
Reference weight (Kg/km) |
Conductor resistance at 20°C≤(Ω/km) |
||
copper |
aluminum |
aluminum |
copper |
|||
1.5(A) |
1/1.38 |
3.3 |
20.3 |
----- |
----- |
12.1 |
1.5(B) |
7/0.52 |
3.5 |
21.6 |
----- |
----- |
12.1 |
2.5(A) |
1/1.78 |
3.9 |
31.6 |
17 |
11.80 |
7.41 |
2.5(B) |
7/0.68 |
4.2 |
34.8 |
----- |
----- |
7.41 |
4(A) |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
4(B) |
7/0.85 |
4.8 |
50.3 |
------ |
----- |
4.61 |
6(A) |
1/2.76 |
4.9 |
65 |
29 |
4.91 |
3.08 |
6(B) |
7/1.04 |
5.4 |
71.2 |
---- |
---- |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
25 |
7/2.04 |
10.0 |
281 |
118 |
1.20 |
0.727 |
35 |
7/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
60227 IEC 300/500v 10NYY 1.5,2.5mm Cu PVC flexble flat cable packaging:
1, by Roll/ 100meters per rol ,wooden drum, Iron wooden drum or as your request
2.the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3.the long & wide & high of 40 size container:11.9*2.32*2.72
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Coco is always here waiting for your inquiry of
60227 IEC 300/500v 10NYY 1.5,2.5mm Cu PVC flexble flat cable .
