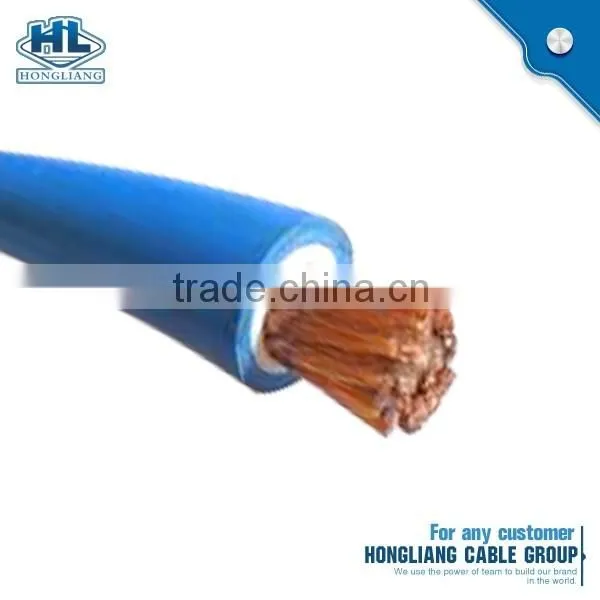

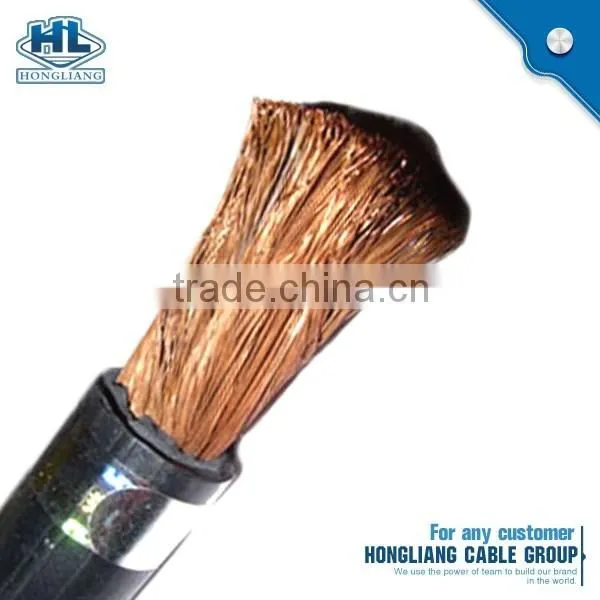

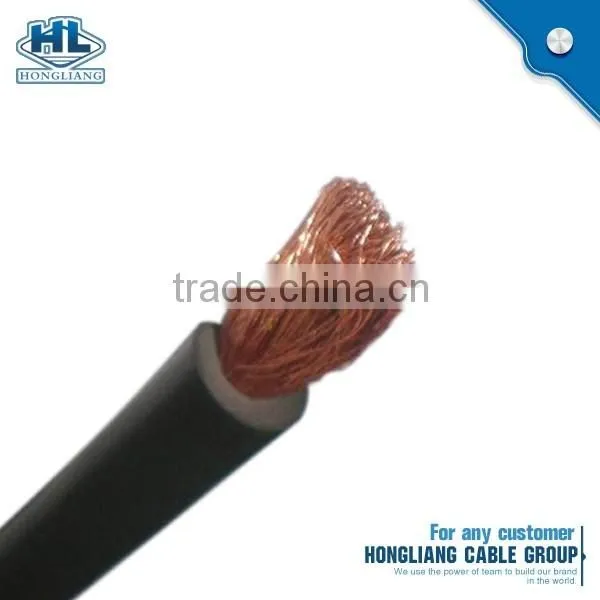

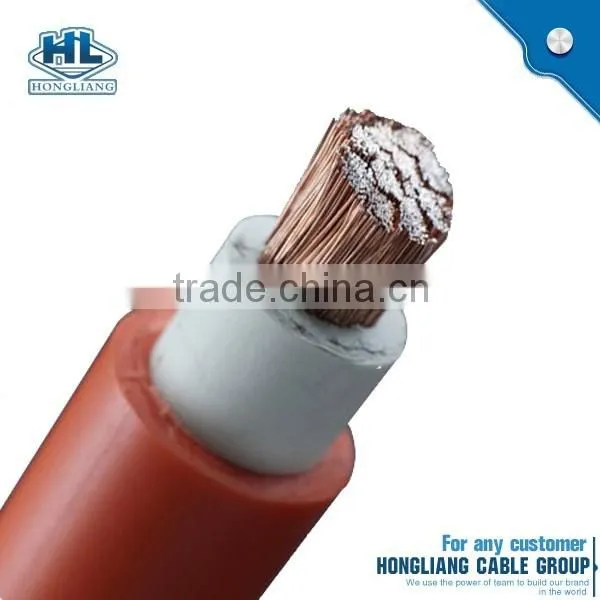

item name: 3/0 ASW welding cable .
1.50mm2 Flexible Rubber Welding power Cable
2.high elasticity,
3.aging resistance
4.oil resistanc
5.25 year factory
3/0 ASW welding cable This series include:
1.50mm2 Flexible Rubber Welding power Cable
2.Welding Cable Structure:
Conductor: stranded fine copper wires class6, or flexible CCA wires
Insulation:rubber, TPE or CPE
3.Welding Cable Application:
It's used in the automobile industry in shipbuilding, in transport and conveyor system, tool making machinery, welding robots etc.
4.Welding Cable Characteristics:
high elasticity, aging resistance & oil resistance
5.Welding Cable Options:
Conductor Material: Cu or CCA
Insulation Material:EPR or TPE
Insulation Type: Single or Double insulation
Color: black, white, orange,blue or Customized
3/0 ASW welding cable parameter list:
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Maximum outer diameter (mm2) |
Reference weight (Kg/km) |
Conductor resistance at 20°C≤(Ω/km) |
||
copper |
aluminum |
aluminum |
copper |
|||
1.5(A) |
1/1.38 |
3.3 |
20.3 |
----- |
----- |
12.1 |
1.5(B) |
7/0.52 |
3.5 |
21.6 |
----- |
----- |
12.1 |
2.5(A) |
1/1.78 |
3.9 |
31.6 |
17 |
11.80 |
7.41 |
2.5(B) |
7/0.68 |
4.2 |
34.8 |
----- |
----- |
7.41 |
4(A) |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
4(B) |
7/0.85 |
4.8 |
50.3 |
------ |
----- |
4.61 |
6(A) |
1/2.76 |
4.9 |
65 |
29 |
4.91 |
3.08 |
6(B) |
7/1.04 |
5.4 |
71.2 |
---- |
---- |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
25 |
7/2.04 |
10.0 |
281 |
118 |
1.20 |
0.727 |
35 |
7/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
3/0 ASW welding cable packaging:
1, by Roll/ 100meters per rol ,wooden drum, Iron wooden drum or as your request
2.the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3.the long & wide & high of 40 size container:11.9*2.32*2.72
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
3/0 ASW welding cable.
