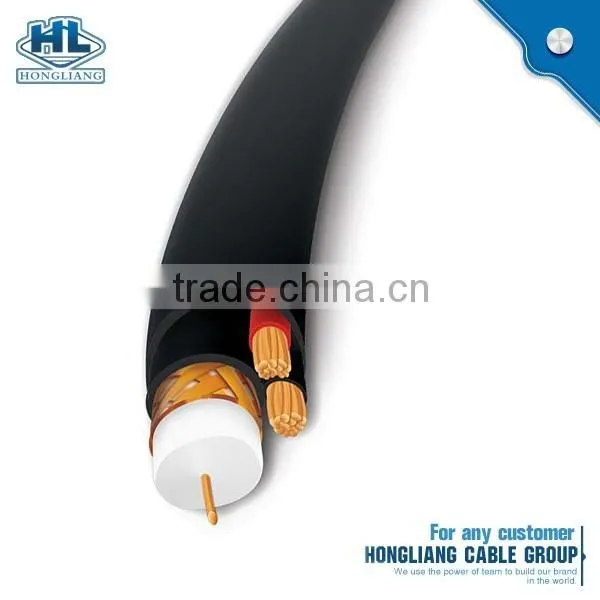

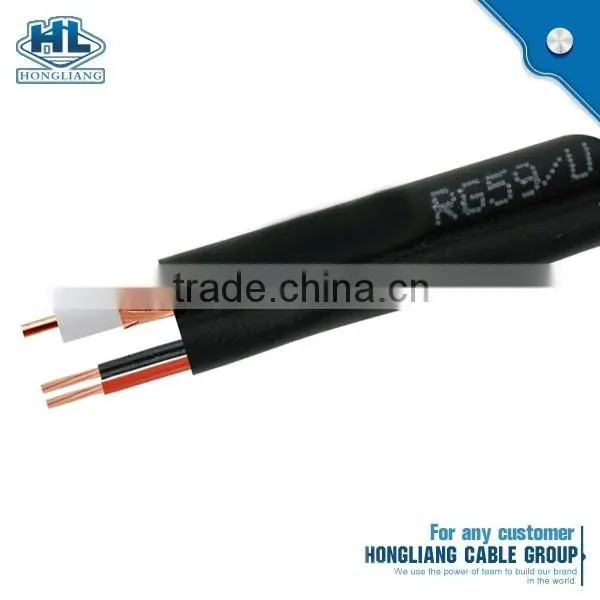

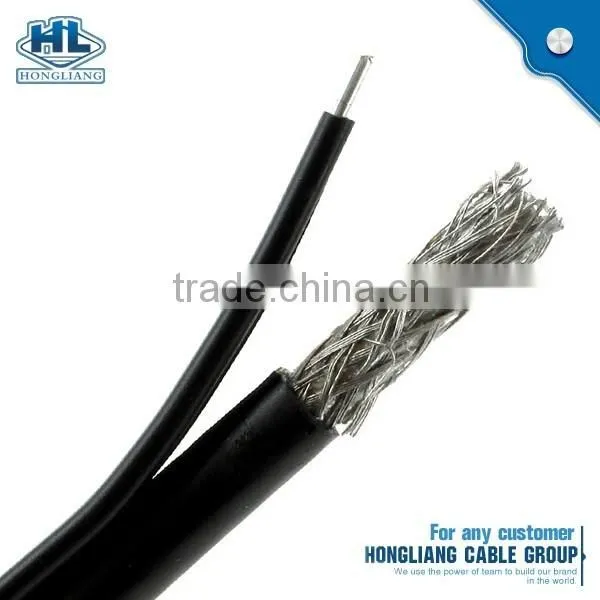

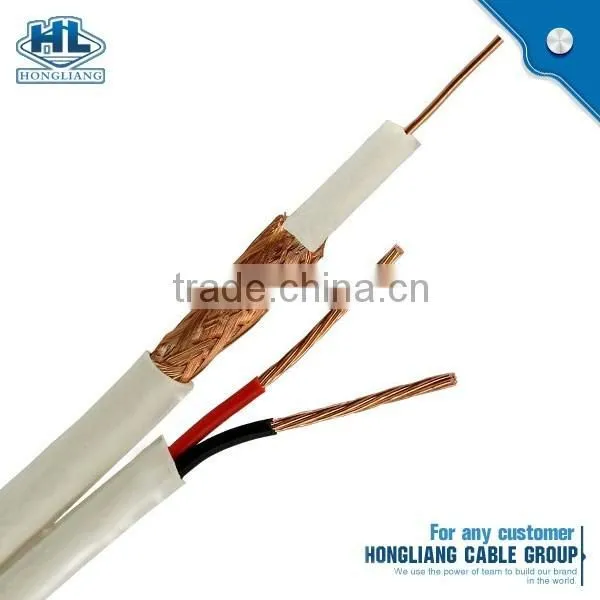

RG59U with 2 power siamese CCTV coaxial cable CCA conductor 75OHM solid PE Al foil shield bare copper wire braid:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC jacket : enviromental
Application: SATV CCTV DTV Video Surveillance Vedio Conference
Specifications
|
Conductor |
Material |
BC/CCA/CCS |
Nom. Dia. |
0.81mm or 0.643mm |
|
|
Dielectric |
Material |
FPE or PE |
Nom. Dia. |
3.65mm |
|
|
Shielding |
Material |
Al foil+96*0.12mm Al-mg braiding |
Coverage |
75% or 95% |
|
|
Jacket |
Material |
PVC |
Nom. Thick |
0.8mm |
|
Nom. Dia. |
6.0mm |
Nominal Impedance(Ohm) |
75±2 |
||
Nominal Velocity of Propagation(%) |
85 |
||
Nominal Capacitance(pF/m) |
50 |
||
Sparker Test(VAC) |
4000 |
||
SRL(dB) |
>20 |
||
Attenuation(68ºF/20ºC) | |||
Frequency(MHz) |
Maximum(db/100ft) |
Maximum(db/100m) |
|
5 |
0.86 |
2.82 |
|
55 |
2.05 |
6.73 |
|
300 |
4.45 |
14.6 |
|
600 |
5.2 |
20.34 |
|
1000 |
8.12 |
26.64 |
|
1450 |
9.88 |
32.41 |
|
1800 |
11.81 |
38.72 |
|
2200 |
13.05 |
42.78 |
|
Electrical Characteristics [@68°F. ( 20°C)] | ||||||
Frequency(Mhz) |
Nominal values (dB/100M) |
Frequency(Mhz) |
Nominal values (dB/100M) |
Frequency(Mhz) |
Nominal values (dB/100M) |
|
|
Attenuation |
5MHZ |
1.27 |
550MHZ |
9.97 |
2250MHZ |
21.68 |
50MHZ |
2.69 |
750MHZ |
11.97 |
3000MHZ |
24.57 |
|
100MHZ |
3.67 |
862MHZ |
12.69 |
|||
200MHZ |
5.26 |
1000MHZ |
14.10 |
|||
400MHZ |
8.11 |
1800MHZ |
20.15 |
|||
Min Return Loss(dB) |
≥20 |
|||||
Impedance(Ω ) |
75± 3 |
|||||
Velocity Rate(%) |
85 |
|||||
RG59U with 2 power siamese CCTV coaxial cable CCA conductor 75OHM solid PE Al foil shield bare copper wire braid
Comapny Information:
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
