RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable

RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-1
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-2
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-3
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-4
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-5
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable thumbnail-6
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-1
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-2
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-3
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-4
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-5
RG-6U With Telephone Wire Coaxial Cable BC Conductor 1.02mm Solid PE Al Foil AL-Mg Wire Braid PVC Jacket Coaxial Cable photo-6
US$ 0.1 - 99 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Hongliang
Model Number:
RG-6U
Contact Supplier Request Quote Chat Now
Zhengzhou Hongliang Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai/tianjinYH YHF soft copper conductor natural rubber sheath welding cable IEC81 82 400v 185mm2 1443/0.40mm 1983.8
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Zhengzhou Hongliang
Model Number RG-6U
Insulation Material PE
Type Low Voltage
Application Underground
Conductor Material Copper
Jacket Other, PVC, PVC

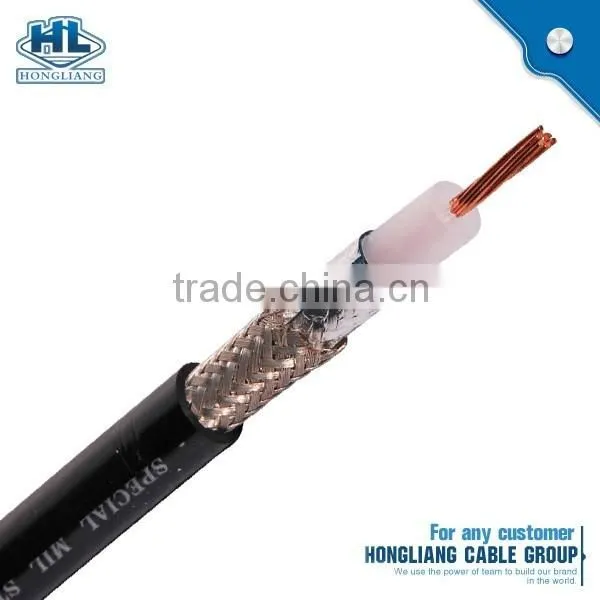

 RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable
Application SATV CCTV DTV Video Surveillance Vedio Conference

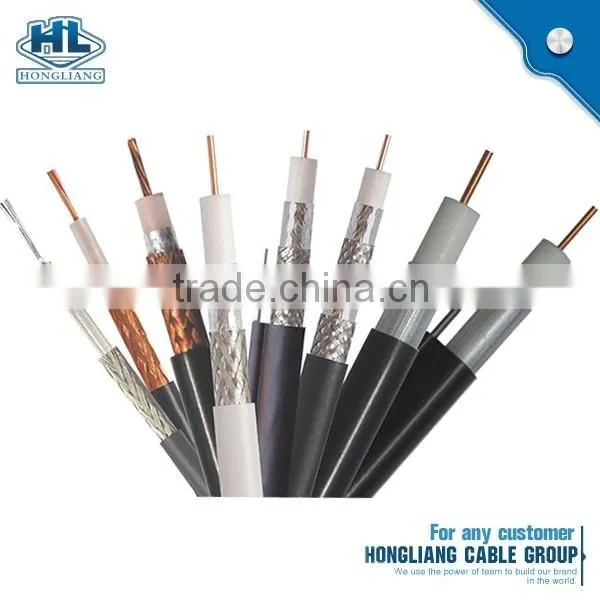

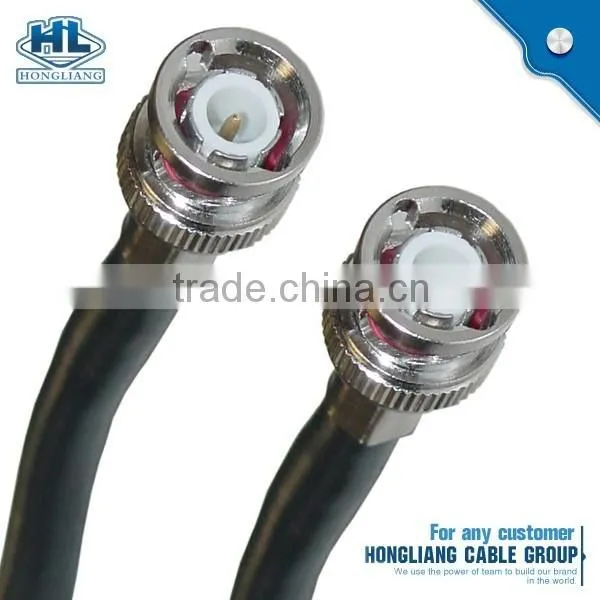

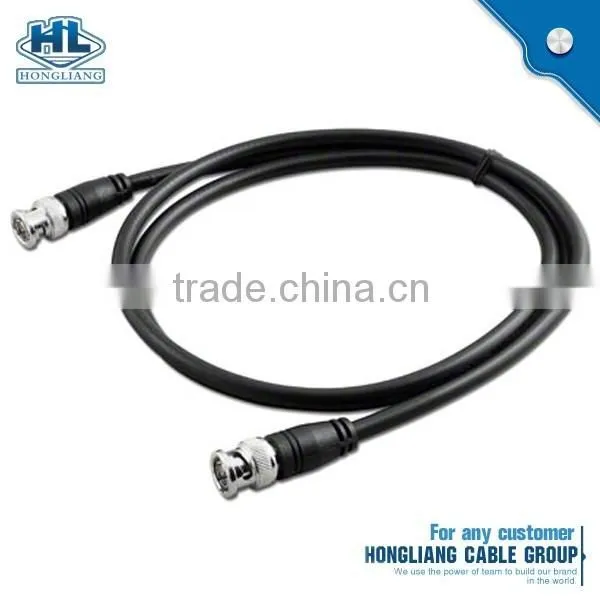

1.Coaxial cable for CATV,CCTV systems.us connector F, BNC, SMA, etNetworking etc

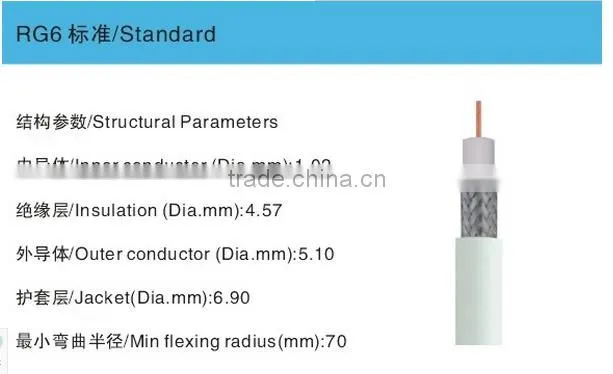

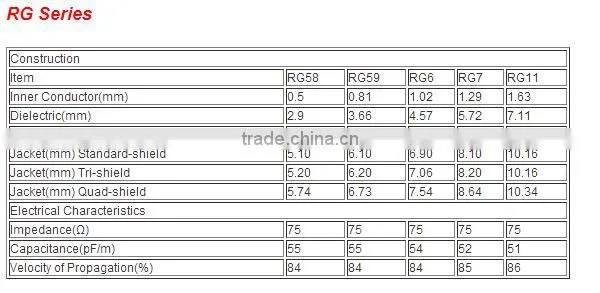

Specifications, Size, Technical Data of      RG-6U coaxial cable bare copper conductor 1.02mm foam PE Al foil tinned copper wire braid PVC jacket coaxial cable

Max Attenuation

 (dB/100m)

            		 Mhz RG58 RG59 RG6 RG7 RG11
5  6.15  4.00  2.66  1.87  1.25
55  8.25  6.76  5.25  4.17  3.38
211  15.87  12.93  10.10  8.04  6.59
270  17.93  14.76  11.48  9.15  7.55
300  18.56  15.49  12.14  9.68  7.97
330  19.67  16.27  12.76  10.17  8.37
400  21.42  17.98  14.11  11.25  9.28
450  23.08  19.13  15.03  12.01  9.91
550  24.39  21.23  16.70  13.35  11.02
750  28.14  25.00  19.69  15.78  13.09
870  30.26  27.03  21.33  17.09  14.21
1000  32.55  29.10  22.97  18.44  15.32

Min Screening

Effectiveness(dB)

    		 5MHz  85  85  85  85  100
50MHz  85  85  85  85  100
300MHz  90  90  90  90  110
550MHz  90  90  90  90  110
1000MHz  90  90  90  90  110
VSWR, Min(dB) 5 ~300  22  22  22  22  22
300 ~1000  20  20  20  20  20

RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cableRG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cableRG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable

Packaging & Shipping

RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cableRG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable

Company Information

Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.

    The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.

RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable       RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable



free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!

  Your best friend Chris is always here waiting for your inquiry.
RG-6U with telephone wire coaxial cable BC conductor 1.02mm solid PE Al foil AL-Mg wire braid PVC jacket coaxial cable
