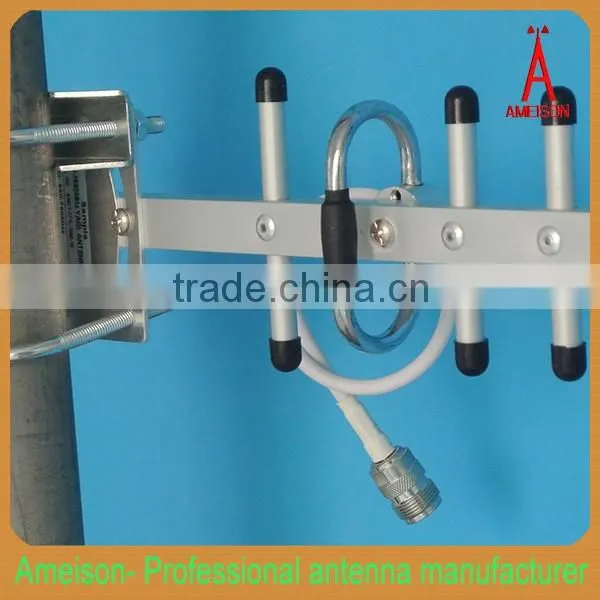

2400-2483MHz(2.4GHz) 13dB Directional WiFi Outdoor Yagi Antenna

Name: 2400-2483MHz(2.4GHz) 13dB Directional WiFi Outdoor Yagi Antenna
Brand: AMEISON
SKU: 126223577

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXY-2400-13

Shenzhen Ameison Communication Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXY-2400-13

2400-2483MHz Directional Yagi Antenna

AMXY-2400-13

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application:

2.4GHz WLAN system

Point-to-point,point-to-multipoint system

Wireless bridging,client termination antenna

AMXY-2400-13 Electrical Specifications
Frequency range(MHz)	2400-2483
Bandwidth(MHz)	83
Gain(dBi)	13
Element	13
Half-power beam width(°)	H:40 V:37
Front-to-back ratio(dB)	≥16
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Horizontal or Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	RP-SMA male or others
Mechanical Specifications
Dimensions(mm)	4607044
Cable length(m)	1
Antenna weight(kg)	0.31
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Clamp	U-shape
Mounting hardware(mm)	Φ35~Φ50
