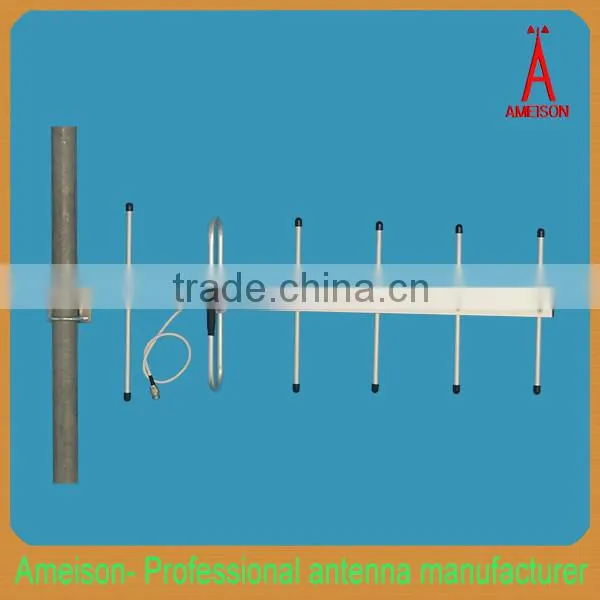

AMEISON 450 - 470 MHz Directional Yagi 12 DBi 6 Elements UHF 460mhz Antenna

Name: AMEISON 450 - 470 MHz Directional Yagi 12 DBi 6 Elements UHF 460mhz Antenna
Brand: AMEISON
SKU: 126223409
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXY-450-12

Shenzhen Ameison Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXY-450-12

AMEISON 450 - 470 MHz Directional Yagi 12 dBi 6 Elements UHF 460mhz antenna

AMXY-450-12

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

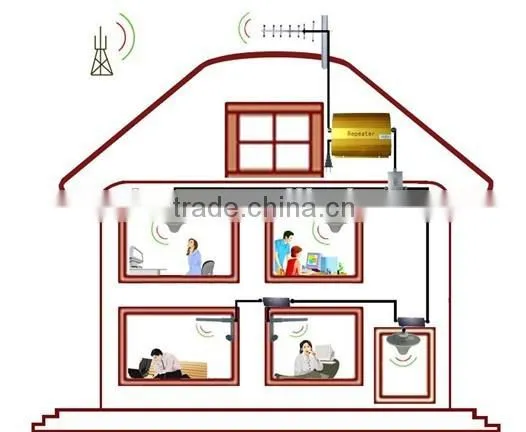

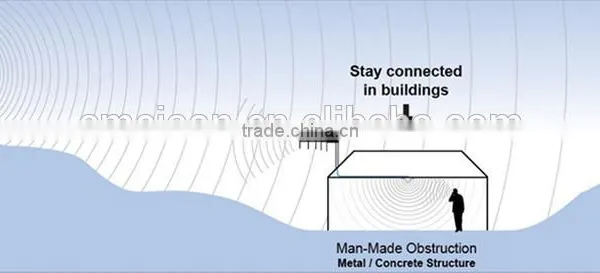

Application:

450 - 470 MHz system

Point-to-point, point-to-multipoint system

Wireless bridging, client termination antenna

AMXY-450-12 Electrical Specifications
Frequency range(MHz)	450-470
Bandwidth(MHz)	20
Gain(dBi)	12
Element	6
Half-power beam width(°)	H:42 V:38
Front-to-back ratio(dB)	≥16
VSWR	≤1.8
Input Impedance(Ω)	50
Polarization	Horizontal or Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N female or others
Mechanical Specifications
Dimensions(mm)	87034080
Cable length(m)	0.3
Antenna weight(kg)	0.52
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Clamp	U-shape
Mounting hardware(mm)	Φ35 ~ Φ50
