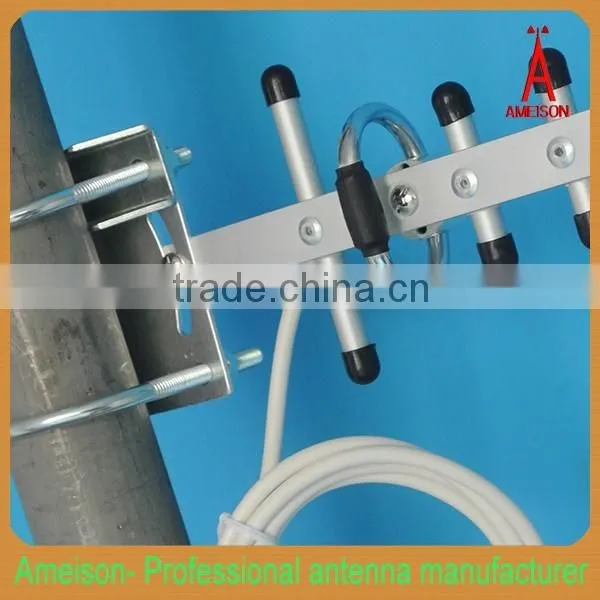

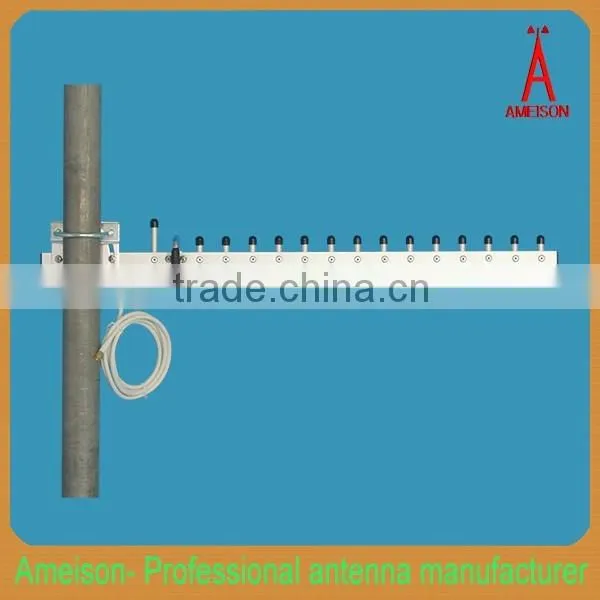

AMEISON 16 DBi 16 Elements 2300 - 2700MHz Directional WiMAX LTE 4g 2600mhz Yagi Outdoor Antenna

Name: AMEISON 16 DBi 16 Elements 2300 - 2700MHz Directional WiMAX LTE 4g 2600mhz Yagi Outdoor Antenna
Brand: AMEISON
SKU: 126223419

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXY-2327-16

Shenzhen Ameison Communication Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXY-2327-16

AMEISON 16 dBi 16 Elements 2300 - 2700MHz Directional WiMax LTE 4g 2600mhz yagi outdoor antenna

AMXY-2327-16

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application:

2.4 GHz WLAN system

2.3/2.7 GHz ISM band

Point-to-point, point-to-multipoint system

AMXY-2327-16 Electrical Specifications
Frequency range(MHz)	2300-2700
Bandwidth(MHz)	400
Gain(dBi)	16
Element	16
Half-power beam width(°)	H:35 V:30
Front-to-back ratio(dB)	≥16
VSWR	≤1.8
Input Impedance(Ω)	50
Polarization	Horizontal or Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	RP-SMA male or others
Mechanical Specifications
Dimensions(mm)	5207044
Cable length(m)	1
Antenna weight(kg)	0.33
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Clamp	U-shape
Mounting hardware(mm)	Φ35 ~ Φ50
