Ameison 5.8 GHz 20 dBi 90 Degree Dual Polarized Sector Panel WLAN Antenna Integral 2-N Type Female Connector
- 30000 Piece / Pieces per Month
- Shenzhen Hongkong
- T/T Credit Card
-
Ameison 5.8 GHz 16 dBi 120 Degree Sector Panel Antenna - Integral N Female
-
Ameison 2.4 GHz 15 dBi 65 degree Dual Polarized / Dual Feed Sector Antenna Wifi Antenna Integral 2-N Female
-
Ameison Outdoor/Indoor 1.8-2.7 GHz Broadband Dual Polarized Flat Panel Antenna
-
Ameison 450-470 MHz 5 dBi Omni Antenna with N-Type Female Connector
-
Ameison 2.4 GHz 18 dBi 65 degree Dual Polarized / Dual Feed Sector Antenna Wifi Antenna Integral 2-N Female
-
Ameison 2.4 GHz 14 dBi 90 degree Dual Polarized / Dual Feed Sector Antenna Wifi Antenna Integral 2-N Female
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ameison | Model Number: | AMXP-5800VH-D20L90 |
Packaging Details
Comply with export safe package.
Product Description
Specifications
5.8Ghz sector panel antennaFactory price
All weather operation
Included Up/Down tilt mounting bracket
5.8 GHz Dual Polarized Sector Panel WLAN Antenna
Model No.: AMXP-5800VH-D20L90
Superior Performance
The Ameison AMXP-5800VH-D20L90 Sectorial Panel Antenna combines vertical and horizontal polarization with high gain 5.8GHz frequency in a single enclosure. It is a professional quality cell-site antenna designed primarily for MIMO point-to-multipoint base station applications in the 5.8 GHz frequency bands.
This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.
Rugged and Weatherproof

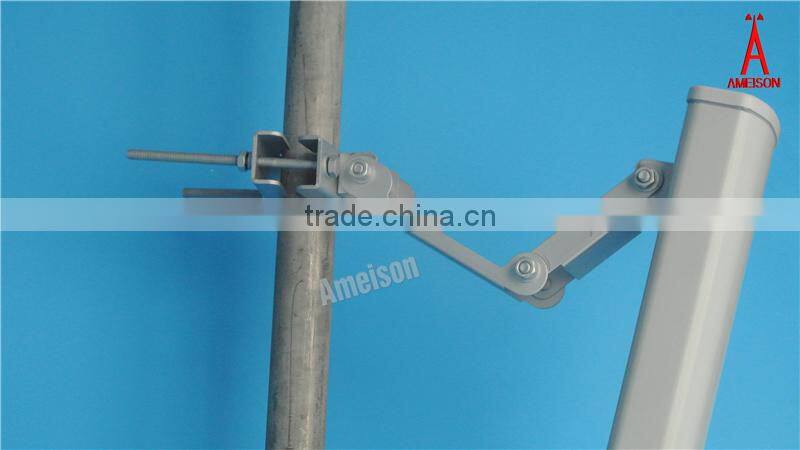

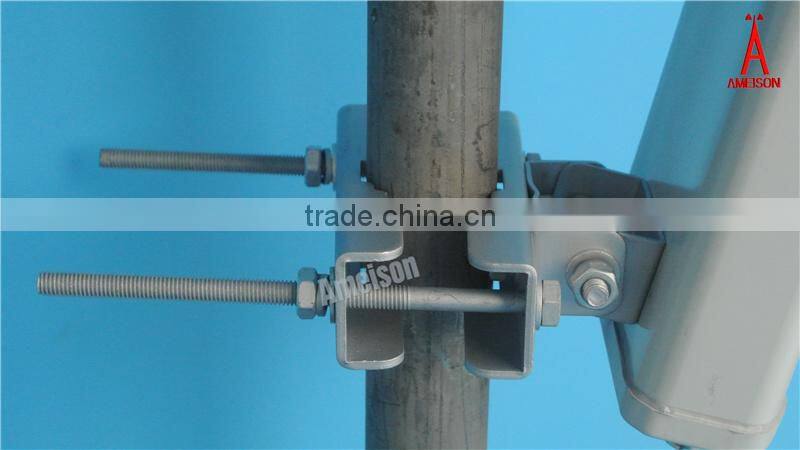

This antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The AMXP-5800VH-D20L90 antenna is supplied with a stainless steel tilt and swivel mast mount kit. This allows installation at various degrees of up/down tilt for easy alignment.
Features:
20 dBi 90 Degree Sector Panel
Integral Two N-Female Connector
DC Ground lightning protection
Supplied with a tilt and swivel mast mount kit
- 5.8GHz UNII applications
- 5.8GHz ISM applications
- 5.8GHz Wireless LAN systems
- WiFi Systems & Wireless Video Systems
- Wireless Internet Provider "cell" sites
AMXP-5800VH-D20L90 Electrical Specifications | |
Frequency range(MHz) | 5725~5850 |
Polarization | Vertical and Horizontal |
Gain(dBi) | 2×20 |
half-power beam width(°) | H:90 V:3.5 |
Front-to-back ratio(dB) | ≥23 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-N Female |
Dimensions-mm (Height/Width/Depth) | 1000*114*54 |
Packing size(mm) | 1040*155*145 |
Antenna weight(kg) | 5.2 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Mounting hardware(mm) | Φ35~Φ75 |

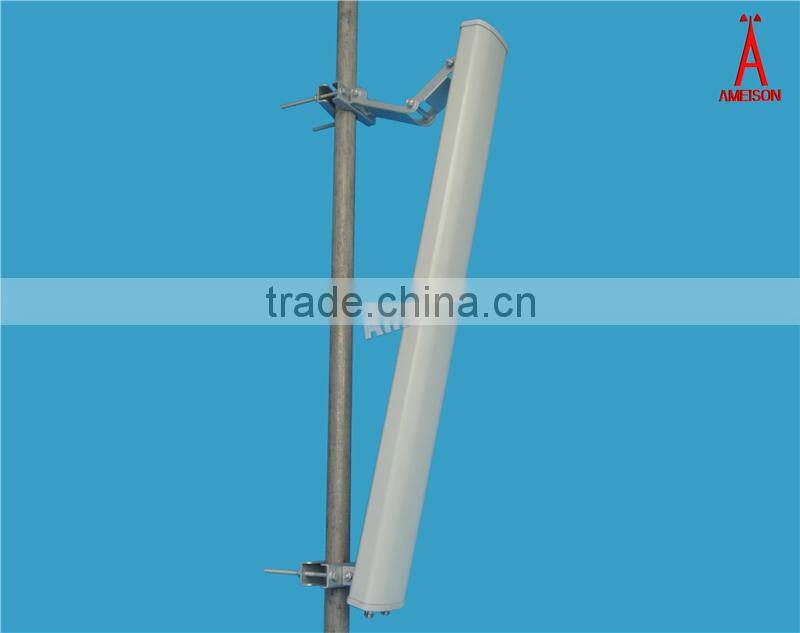

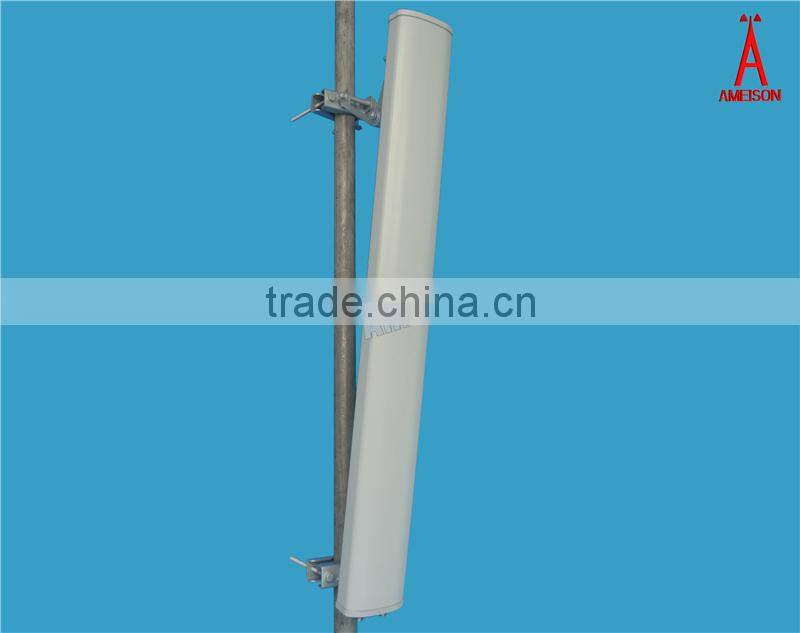

Product Picture
