Specifications
2.4 Ghz sector panel antennaFactory price
All weather operation
Included with Up/Down tilt mounting bracket
Ameison 2.4 GHz 18 dBi 65° Dual Polarized Sector Antenna
Model No.: AMXP-2425S-D18L65
The Ameison AMXP-2425S-D18L65 Dual Polarized Sector Panel WiFi Antenna combines high gain with a wide 65° beam-width. It is a professional quality "cell site" antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.
Dual Polarized ±45 degree Design
This antenna features an unique array of cross di-pole elements. The antenna is fed via two N-Female ports, one for +45 degree polarized and one for -45 degree polarized signals. These feature makes these antennas ideal for polarization diversity systems.
Rugged and Weatherproof
This dual-band sector antenna features a heavy-duty UPVC radome for all-weather operation. The heavy-duty mounting system allows installation adjusts from 0 to 10 degrees down-tilt.
Ideal for Wireless Internet "Cell" Sites
This is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 65 degrees.
For additional information and complete specifications, Please refeer data sheet below.
Features:
- ±45º degree polarization
- Dual polarity feed system - (2) N-Female connectors
- 10° down-tilt mast mounting bracket and hardware
- Diversity provides improved link performance
- All weather operation
- 2.4 GHz ISM band
- IEEE 802.11b, 802.11g and 802.11n Wireless LAN Applications
- MIMO applications
- Wireless Internet Provider "Cell" sites
- Public wireless hotspots
|
AMXP-2425S-D18L65 Electrical Specifications | |
Frequency range(MHz) |
2400~2500 |
Polarization |
±45º |
Gain(dBi) |
2×18 |
half-power beam width(°) |
H:65 V:7 |
Front-to-back ratio(dB) |
≥25 |
Input Impedance(Ω) |
50 |
VSWR |
≤1.5 |
Isolation between ports |
≥28dB |
Cross-polar ratio |
≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon |
15 dB |
Maximum input power(W) |
200 |
Lightning protection |
DC Ground |
Mechanical Specifications | |
Input connector type |
2-N Female |
Dimensions-mm (Height/Width/Depth) |
1000*175*80 |
Packing size(mm) |
1080*200*150 |
Antenna weight (kg) |
6.5 |
Radome material |
UPVC |
Radome color |
Gray |
Mechanical tilt(°) |
0~10 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Mounting hardware(mm) |
Φ35~Φ75 |

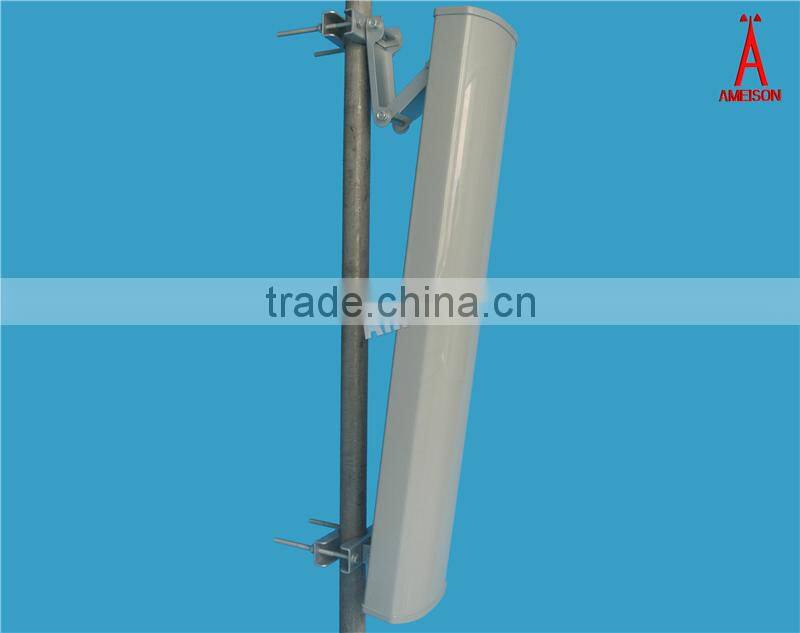

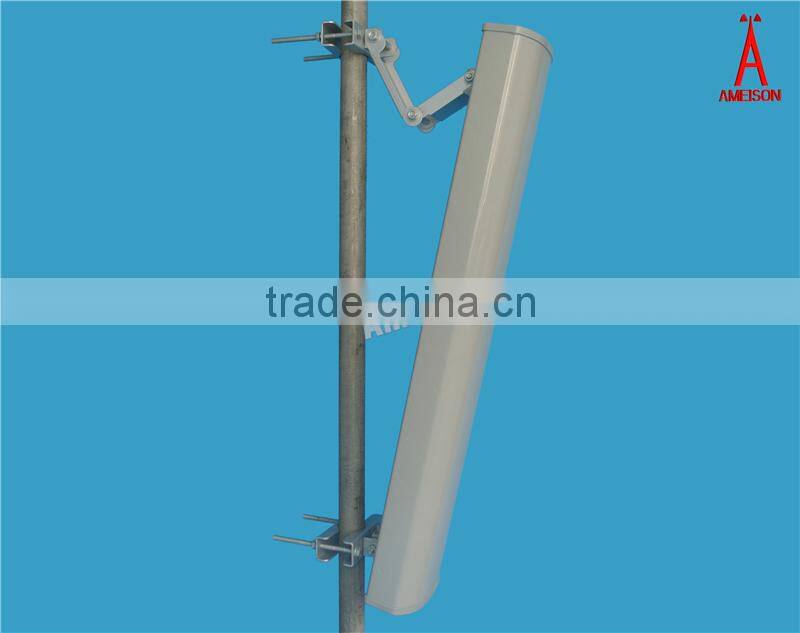

Product Picture
Shenzhen Ameison Communication Equipment Co., Ltd. was established in 2009. which is one of the leading professional antenna manufacturer in China and an integrated new-rising high-tech company in developing, designing and manufacturing antennas and relative products! Ameison has successfully entered China Unicom public phone system, China mobile wireless business phone system, China telecom 3G system and our marketing occupancy has grown step by step.
Our main products: LTE antenna, WIMAX antenna, WIFI antenna, 3G antenna, DECT antenna, WLAN antenna,CDMA antenna, CDMA2000 antenna,WCDMA antenna,TD-SCDMA antenna,GPRS antenna,CMMB antenna,DMB antenna,DVB antenna,GSM antenna,FM antenna and PHS antenna. etc..
