Home > Electrical & Electronics > Antenna > Communication Antenna > Ameison 1420-1530 MHz Directional Sectorial Panel Antenna

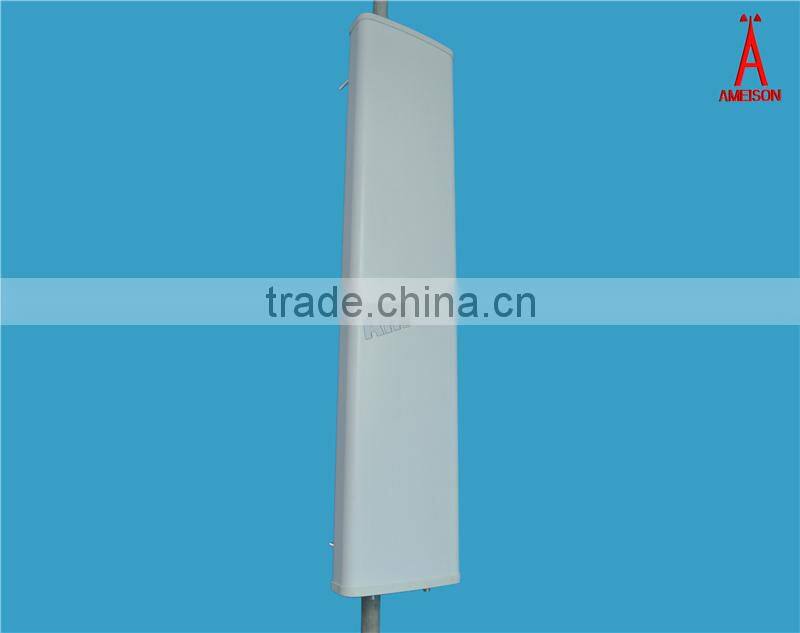

Ameison 1420-1530 MHz Directional Sectorial Panel Antenna

Name: Ameison 1420-1530 MHz Directional Sectorial Panel Antenna
Brand: Ameison
SKU: 126215937
Availability: InStock

Ameison 1420-1530 MHz Directional Sectorial Panel Antenna thumbnail-1

Ameison 1420-1530 MHz Directional Sectorial Panel Antenna photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ameison

Model Number:

AMXP-1415S-D17L65X

Contact Supplier Request Quote Chat Now

Shenzhen Ameison Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ameison

Model Number AMXP-1415S-D17L65X

Specifications

1420-1530 MHz Sectorial Panel Antenna
Factory price
All weather operation
Included Up/Down tilt mounting bracket

Ameison 1420-1530MHz Directional Sectorial Panel Antenna

Model No: AMXP-1415S-D17L65X

Features:

Superior performance
All Weather Operation
Waterproof heavy-duty UPVC redome

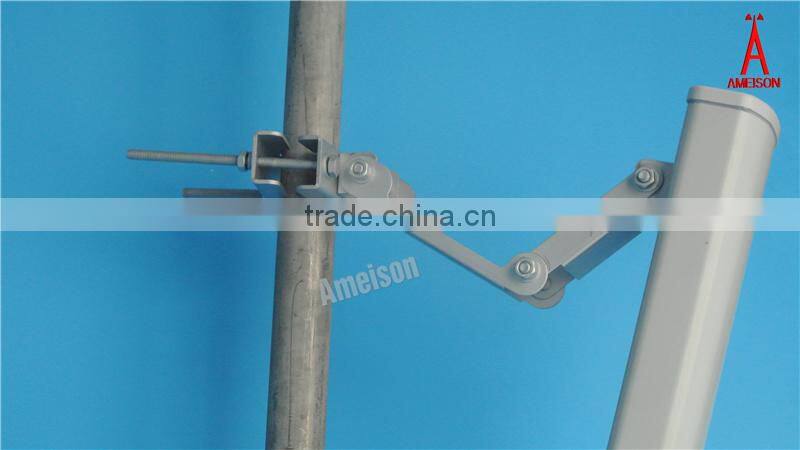

10°down-tilt mast mounting bracket and hardware

Applications:

1420-1530 MHz Wireless communication and data transmission system

AMXP-1415S-D17L65X Electrical Specifications
Frequency range	1420~1530
Polarization	±45º
Gain(dBi)	2*17
half-power beam width(0°)	H:65 V:7
Front-to-back ratio(dB)	≥25
Input Impedance(Ω)	50
Isolation between ports	≥28dB
Cross-polar ratio	≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon	15 dB
VSWR	≤1.5
Maximum input power(W)	200
Lightning protection	DC Ground
Mechanical Specifications
Input connector type	4-7/16DIN Female
Dimensions-mm (Height/Width/Depth)	152028080
Packing size(mm)	1570320160
Antenna weight (kg)	11
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0~10
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Mounting hardware(mm)	Φ35~Φ90

Product Picture

Shenzhen Ameison Communication Equipment Co., Ltd. was established in 2009. which is one of the leading professional antenna manufacturer in China and an integrated new-rising high-tech company in developing, designing and manufacturing antennas and relative products! Ameison has successfully entered China Unicom public phone system, China mobile wireless business phone system, China telecom 3G system and our marketing occupancy has grown step by step.

Our main products: LTE antenna, WIMAX antenna, WIFI antenna, 3G antenna, DECT antenna, WLAN antenna,CDMA antenna, CDMA2000 antenna,WCDMA antenna,TD-SCDMA antenna,GPRS antenna,CMMB antenna,DMB antenna,DVB antenna,GSM antenna,FM antenna and PHS antenna. etc..
