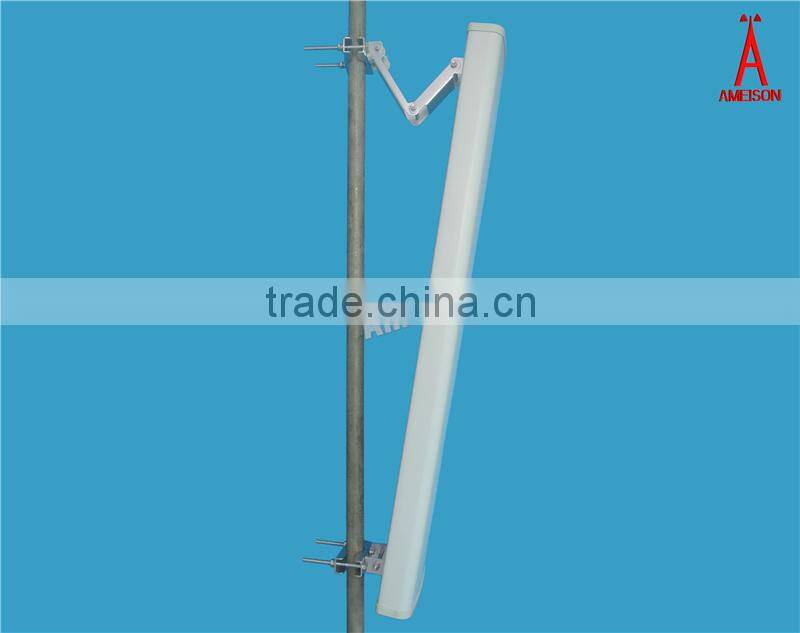

Ameison 1420-1530MHz 14dBi directional sector panel antenna
- 30000 Piece / Pieces per Month
- Shenzhen Hongkong
- T/T Credit Card
- Ameison 5.8GHz Dual Polarized 15 dBi Outdoor WiFi Antenna
- Ameison 4.9-5.8 GHz Dual Polarized 18 dBi WiFi Antennas
- Ameison 1420-1530 MHz Directional Sectorial Panel Antenna
- Ameison 5.8 GHz Dual Polarized 18 dBi WiFi Wireless Antenna
- Ameison 806-960 MHz 14 dBi Dual X-Polarity 120 Degree Sector Antenna - N Female Connector
- Ameison 5.8 GHz Dual Polarized 18 dBi WiFi Booster Antenna
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ameison | Model Number: | AMXP-1415S-D14L65X |
Packaging Details
Comply with export safe package.
Product Description
Specifications
1420-1530 MHz Sectorial Panel AntennaFactory price
All weather operation
Included Up/Down tilt mounting bracket
Ameison 1420-1530 MHz Directional Sector Panel Antenna
Model No: AMXP-1415S-D14L65X
Features:
- Superior performance
- All Weather Operation
- Waterproof heavy-duty UPVC redome
- 10°down-tilt mast mounting bracket and hardware
Applications:
- 1420-1530 MHz Wireless communication and data transmission system
AMXP-1415S-D14L65X Electrical Specifications | |
Frequency range | 1420~1530 |
Polarization | ±45º |
Gain(dBi) | 14 |
half-power beam width(0°) | H:65 V:14 |
Front-to-back ratio(dB) | ≥25 |
Input Impedance(Ω) | 50 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
VSWR | ≤1.5 |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 4-7/16DIN Female |
Dimensions-mm (Height/Width/Depth) | 800*280*80 |
Packing size(mm) | 850*320*160 |
Antenna weight (kg) | 6.3 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Mounting hardware(mm) | Φ35~Φ90 |
Product Picture
