Full Servo Robot Arm For Injection Molding Machine
- 99 Set / Sets per Month
- shenzhen
- T/T
You May Like
Product Details
| Condition | New | Elevation Speed | 1.8 sec. | |
| Vertical Travel(mm) | 1400mm | Horizonal Travel(mm) | 2200 mm | |
| Application | Load | Place of Origin | Guangdong, China | |
| Brand Name | BORUNTE | Model Number | BRTN1400WS-S3 Full Servo Robot Arm For Injection Molding Machine | |
| Weight | 700 Kg | Dimension(L*W*H) | 2800*2170*2170mm | |
| Power(W) | 2.8KVA | Certification | CE,SGS,ISO | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

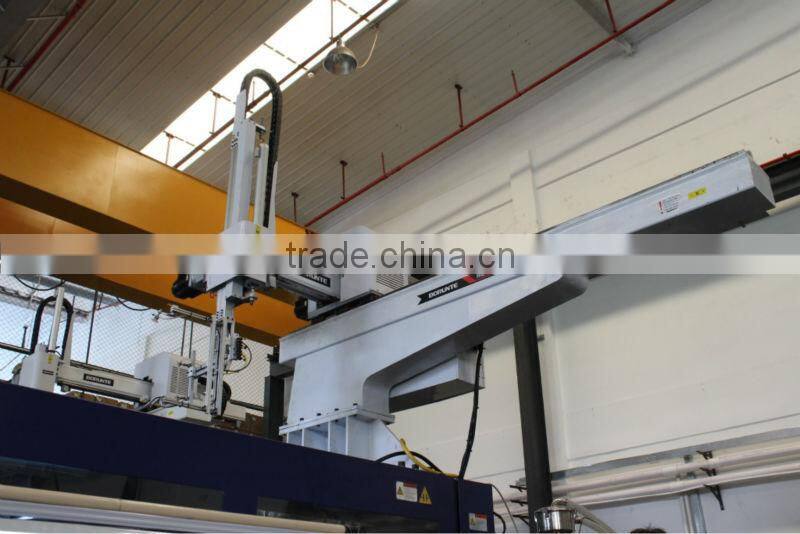

Full Servo Robot Arm For Injection Molding Machine
(1).BRTN Series is applicable to all types of horizontal injection machine ranges of 600-4000T for take-out products and sprues. |
(2).Three-axis driven by AC Servo motor, take-out at super high-speed (1.5sec.). |
(3).Easy for E-O-A-T adjustment, long using life and low failure rat. |
(4).Applicable to take-out products with short forming cycle or complex automatic, such as auto products, washing machine and household appliance products take-out. |
Denote-- -BRTN1400WS-S3/S5 | |
W: Telescopic type. | S: Product arm . |
S3: Three-axis driven by AC Servo Motor. | S5: Five-axis driven by AC Servo Motor. |
Main Specification | |||||
Model | BRTN1400WS-S3 | BRTN1800WS-S3 | BRTN2200WS-S3 | BRTN2600WS-S3 | BRTN3000WS-S3 |
Power Souce (KVA) | 2.8 | 2.8 | 5 | 6 | 10.5 |
Recommended I.M.M | 650-1000T | 1000-1600T | 1600-2200T | 2200-3000T | 300-4000T |
Traverse Stroke(mm) | 2200 | 2400 | 2700 | 3200 | 4000 |
Traverse Driven | AC Servo motor | ||||
Crosswise Stroke (mm) | 300-1100 | 400-1300 | 500-1500 | 550-2100 | 550-2200 |
Vertical Stroke(mm) | 1400 | 1800 | 2200 | 2600 | 3000 |
Max. Loading (kg) | 20 | 20 | 40 | 60 | 80 |
Dry Take Out Time (sec) | 1.8 | 2.5 | 2.8 | 3.5 | 4.5 |
Dry Cycle Time(sec) | 14 | 16 | 20 | 25 | 25 |
Air Consumption (N/cycle) | 80 | 90 | 100 | 110 | 140 |
Net Weight(kg) | 700 | 800 | 1650 | 2550 | 2800 |

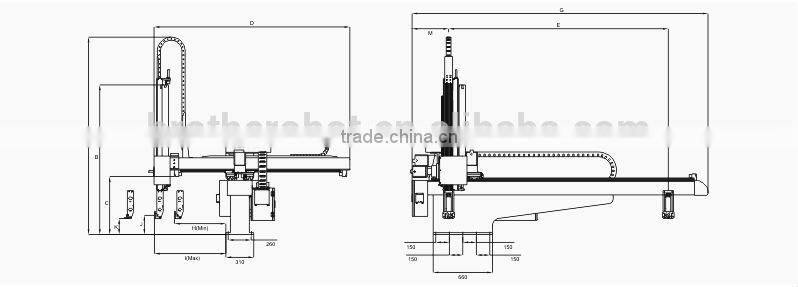

Outer dimensions | |||||||||||
Moldel | A | B | C | D | E | F | G | H | I | J | K |
BRTN1400WS-S3 | 2170 | 1450 | 645 | 2170 | 2000 | / | 2800 | 350 | 1500 | 130 | 80 |
BRTN1800WS-S3 | 2400 | 1850 | 645 | 2310 | 2400 | / | 3000 | 350 | 1700 | 130 | 90 |
BRTN2200WS-S3 | 2700 | 2250 | 645 | 2310 | 2700 | / | 3700 | 350 | 1700 | 130 | 80 |
BRTN2600WS-S3 | 3040 | 2500 | 950 | 310 | 3200 | / | 4200 | 450 | 2200 | 220 | 100 |
BRTN3000WS-S3 | 3300 | 2700 | 950 | 3400 | 4000 | / | 5000 | 450 | 2600 | 220 | 100 |
High Quality End Of Arm Tooling Parts |
Best Automation Integrated Solution |
Main Advanced Processing Equipment | ||
Laser cutting machine | Robot welding large gantry machining center | Large gantry machining center |
Large CNC machining centers | CNC bending machines | Cutting machines |
CNC lathe | Milling machine | Surface grinding machine |
| Robotic Arm assembling - Rigorous work, focus on details |
| (1).Each assembling technician all passed through the strict pre-job training, qualified then mounts guard. |
| (2).Standardized assembling process, ensure every process up to standard requirements, improve the assembly precision and quality. |
| Macihne Parts Warehouse |
| (1).Company purchased modern storage bin, improve the standard product quantitative inventory, guaranteed fast delivery to meet customers’ need. |
| (2).Warehouse all input materials, must be with factory quality inspection certificate and by our professional technician re-confirmed, ensure that incoming products 100% qualified. |
| (3).Input parts all need to be record, each component are coded and placed provisions position, ensure warehouse efficiency and prevent the loss of resources. |
Packaging&shipping |
(1)Wooden Case with plastic vacuum package to prevent rust |
(2)one wooden case can hold two sets of robot |
(3)within robot base and standared parts |
(4)delivery time within 35 days after reieve deposit |
(5) Dimension(L*W*H)---2200*2200*3400MM |
| Company and Office |
| (1)Became the first listed company in linear robot industry on January 24,2014. |
| (2).Our members have nearly 10 years’ sales & management experiences in robot industry. |
| Corporate Culture |
| Vision: Become world class brand of intelligent equiptment! |
| Mission: Create the biggest value for customers, employees, firm and society! |
| Core value: Serious, honest, sincere, win-win, innovative, sustainable! |
| Culture mode: Army + school + family! Ensure accomplishment, resolute completion! |
