Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot

Hefei Mingde Optoelectronic Technology Co.,ltd.
Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot thumbnail-1
Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot thumbnail-2
Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot thumbnail-3
Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot photo-1

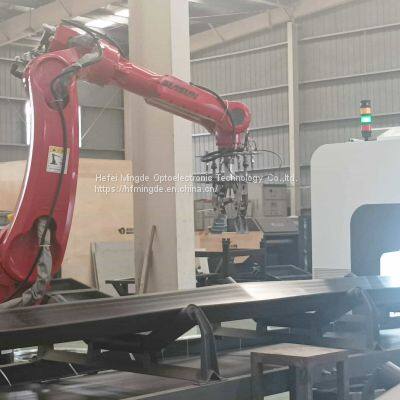

Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot photo-2

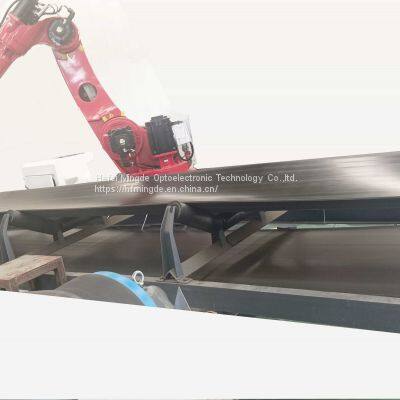

Deep Learning Platform 6 Axis Mining Robot Arm Robotic Manipulator Material Removal Robot photo-3
US$ 350000 - 380000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MINGDE
Place of Origin:
China
Model Number:
MRR6
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
40 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MINGDE
Place of Origin China
Model Number MRR6
Certification ISO ,CE
Application Other, ore sorting
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 700kg
Dimension(L*W*H) 10000x2200x2000
Condition New
Power(W) 3Tons
Horizonal Travel(mm) 888888
Vertical Travel(mm) 88888
Elevation Speed 8888

Product Overview

In the process of mining and transportation, ores are often mixed with wood, steel nails, rags, plastic parts, waste filling pipes and other sundries. These sundries has seriously affected the safety and effectiveness of equipment in the transportation, crushing, grinding and beneficiation . In the past, manual sorting was usually used to remove it, but there are serious safety and occupational health risks in manual sorting, as well as problems such as incomplete manual sorting. The robot for mining can effectively solve the above problems.



Through a multi angle, multi-dimensional stereo high-precision camera, the intelligent robot sorter quickly scans the ore on the conveyor belt. The self-developed CRM-CNN foreign object recognition algorithm accurately locates the 3D position of the debris, controls the robot to grab  the foreign object, and puts it into the foreign object collection box.

Technical parameters

The machine body mainly includes 6 parts:

1: Robot, can be configured more than one, Multiple robots can be configured according to the capture time.

2: Control cabinet, including robot control box and PLC control cabinet

3: Visual acquisition, including lens, light source and control box

4: Algorithm IPC, UPS

5: Remote operation platform/dispatching room monitoring, including video monitoring, remote HMI, etc. (This function is optional)

6: Guardrail, including safety door interlock and mechanical arm emergency stop control (optional).


Structure

6-axis industrial manipulator+deep learning control platform

Sorting range

stones, wood blocks, plastic bottles and other sundries

Camera brand

Mingde

Recognition principle

deep learning neural network, and modeling of foreign objects extracted as required

Grab

quick change bionic mechanical claw

Power supply

industry 380V, three-phase five wire

Air supply

>0.5MPA

The grabbing capacity

Manipulators shall be configured according to the maximum weight of objects to be grasped on site

Belt speed

>1.3 m/s



Belt speed

<1.8 m/sec

Track width

<2500mm

Power supply

380V，Three-phase five-wire.

Air supply

>0.5MPA

Total Weight

850kg

Dimension

2350×1100×2000

Gripping Diameter

≥1CM

Protective level

IP65

Vision system

CRM-CNN

Rated power

6KW（single robot configuration）






Product Tags: robot arm , robotic manipulator , mining robot arm , Material removal robot , 6 axis manipulator , mining handling equipment , manipulator , material handling arm
