Servo 15 KG Robot Arm for Injection Machine
- 100 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Types of Industrial Robots with Telescopic Arm for Injection Machine
-
Injection Molding Servo Robotic Arm Industrial
-
Industrial Robot/Robotic Arm for Injection Molding Machine
-
The New Ultra High Speed Automatic Robot
-
The New Ultra high Speed Automatic Industrial IML Robot
-
High Speed Automatic Industrial IML Robot
Product Details
| Condition | New | Elevation Speed | 1.9 m/s | |
| Vertical Travel(mm) | 1400 | Horizonal Travel(mm) | 2200 | |
| Application | Other, Pick and Place | Place of Origin | Guangdong, China | |
| Brand Name | BORUNTE | Model Number | BRC1400WSA-S2 | |
| Weight | 500-580 kg | Dimension(L*W*H) | 3200*2160*1850 mm | |
| Power(W) | 1.9 KVA | Certification | CE, SGS, TUV, ISO 9001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

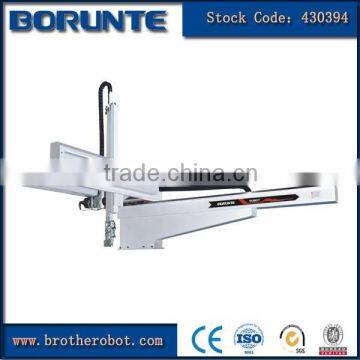

Servo 15 KG Robot Arm for Injection Machine
BRC1400WSA-S2 Servo 15 KG Robot Arm is applicable to all types of horizontal injection machine ranges of 650-1000T for take-out products and sprues. Vertical arm is telescopic type, with single arm and double arms, suitable for three plate mold products take out. Each axis can be driven by AC servo motor. After installed this robot, the productivity will be increased 10-30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.
Specifications:
| Model | Power Source (KVA) | Recommended I.M.M (ton) | Traverse Stroke (mm) | Traverse Driven | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max. Loading (kg) | Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (nl/cycle) | Net Weight (kg) |
| BRC1400WSA-S2 | 1.9 | 650T-1000T | 2200 | AC Servo Motor | 1400 | 1400 | 15 | 1.5 | 12 | 70 | 500-580 |
| BRC1800WSA-S2 | 1.9 | 1000T-1600T | 2700 | 1600 | 1800 | 20 | 1.8 | 14 | 80 | 1500-1800 | |
| BRC2200WSA-S2 | 1.9 | 1600T-2200T | 3000 | 1800 | 2200 | 35 | 2.0 | 16 | 90 | 2100-2600 |
Denote: W: Telescopic type
A: Remote adjustment of crosswise axis
S: Product arm
S2: Two-axis driven by AC Servo Motor (Traverse axis + Vertical axis)
Optional: S3: Three-axis driven by AC Servo Motor (Traverse axis, Vertical axis and Crosswise axis)
S5: Five-axis driven by AC Servo Motor
D: Product arm + Runner arm
G: Remote adjustment of vertical axis
Y: AC Servo driven on traverse axis
Outer Dimensions:
| Model | A | B | C | D | E | F | G | H | I | J | K | M |
| BRC1400WSA-S2 | 1850 | 1500 | 775 | 2160 | 2200 | / | 3200 | 250 | 1400 | 200 | 160 | 370 |
| BRC1800WSA-S2 | 2050 | 1700 | 775 | 2280 | 2700 | / | 3700 | 250 | 1520 | 200 | 160 | 450 |
| BRC2200WSA-S2 | 2230 | 1900 | 775 | 2460 | 3000 | / | 4000 | 250 | 1700 | 200 | 160 | 500 |
High Quality End of Arm Tooling Parts:
Customers Application Cases:
Packing: Wooden Case and Plastic Stretch Film
We have 4S stores in most of the provinces of China and our products have been sold to over 20 countries.
Our Factory:
Assembly Workshop:
CNC Processing Center:
Warehouse:
2014 Chinaplas in Shanghai:
BORUNTE Robot School & BORUNTE Intelligent Equipment Institute:
CE, SGS, TUV, ISO Certifications:
(1) Are you a factory or a trading company?
We are manufacturer in Dongguan City, Guangdong, China.
(2) How to choose a robot arm for injection machine?
Step 1: Select traverse stroke, crosswise stroke and vertical stroke according to the tonnage of your injection molding machine.
Step 2: Select single arm or double arms according to the plates of mold.
Step 3: Select single stage or telescopic type according to the height of your transporter crane.
(3) Do you have any certifications?
Yes, we have. All of our robot arms for injection machine are CE, SGS, TUV, ISO certificated.
(4) What's your product lead time?
Within 35 days after received payments.
(5) What's the warranty time?
One year.
Why Choose BORUNTE?
(1) The first listed intelligent equipment company in China.
(2) Over 10 years experience in the industry of robot arm for injection machine.
(3) CE, SGS, TUV, ISO 9001:2008 certificated.
(4) Over 400 skilled workers, QC department and R&D team to ensure the high quality and fast production.
(5) We are one of China's largest robot arm manufacturers with the capacity to produce 7000 robot arms a year. Our sales increased over 40% in 2014.
(6) Only 1 hour reach HK port or Shenzhen port, convenient for shipment.
