Injection Molding Servo Robotic Arm Industrial

Injection Molding Servo Robotic Arm Industrial photo-1

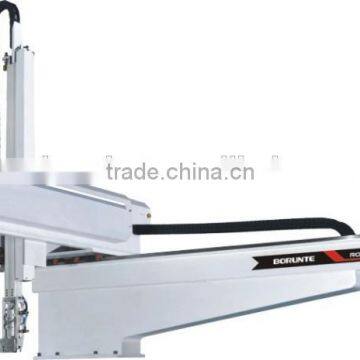

Injection Molding Servo Robotic Arm Industrial photo-2
US$ 20,000 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
2 m/s
Vertical Travel(mm):
1800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Elevation Speed 2 m/s
Vertical Travel(mm) 1800
Horizonal Travel(mm) 2700
Application Other, Pick and Place
Place of Origin Guangdong, China
Brand Name BORUNTE
Model Number BRC1800WSA-S2
Weight 1500-1800 kg
Dimension(L*W*H) 3700*2280*2050 mm
Power(W) 1.9 KVA
Certification CE, SGS, TUV, ISO 9001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Injection Molding Servo Robotic Arm Industrial

BRC1800WSA-S2 Injection Molding Servo Robotic Arm is applicable to all types of horizontal injection machine ranges of 1000-1600T for take-out products and sprues. Vertical arm is telescopic type, with single arm and double arms, suitable for three plate mold products take out. Each axis can be driven by AC servo motor. After installed this robot, the productivity will be increased 10-30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.







Injection Molding Servo Robotic Arm Industrial









Specifications:

ModelPower Source (KVA)Recommended I.M.M (ton)Traverse Stroke (mm)Traverse DrivenCrosswise Stroke (mm)Vertical Stroke (mm)Max. Loading (kg)Dry Take Out Time (sec)Dry Cycle Time (sec)Air Consumption (nl/cycle)Net Weight (kg)
BRC1400WSA-S21.9650T-1000T2200AC Servo Motor14001400151.51270500-580
BRC1800WSA-S21.91000T-1600T270016001800201.814801500-1800
BRC2200WSA-S21.91600T-2200T300018002200352.016902100-2600



   Denote:  W: Telescopic type

                   A: Remote adjustment of crosswise axis

                   S: Product arm

                 S2: Two-axis driven by AC Servo Motor (Traverse axis + Vertical axis)



Optional:  S3: Three-axis driven by AC Servo Motor (Traverse axis, Vertical axis and Crosswise axis)

                 S5: Five-axis driven by AC Servo Motor

                  D: Product arm + Runner arm

                  G: Remote adjustment of vertical axis

                  Y: AC Servo driven on traverse axis









Outer Dimensions:

Injection Molding Servo Robotic Arm Industrial



ModelABCDEFGHIJKM
BRC1400WSA-S21850150077521602200/32002501400200160370
BRC1800WSA-S22050170077522802700/37002501520200160450
BRC2200WSA-S22230190077524603000/40002501700200160500










High Quality End of Arm Tooling Parts:

Injection Molding Servo Robotic Arm Industrial













Customers Application Cases:

Injection Molding Servo Robotic Arm Industrial











Packaging & Shipping

Packing: Wooden Case and Plastic Stretch Film

Injection Molding Servo Robotic Arm Industrial











Our Services

We have 4S stores in most of the provinces of China and our products have been sold to over 20 countries.
Injection Molding Servo Robotic Arm Industrial

Injection Molding Servo Robotic Arm Industrial











Company Information

Our Factory:

Injection Molding Servo Robotic Arm Industrial









Assembly Workshop:
Injection Molding Servo Robotic Arm Industrial











CNC Processing Center:

Injection Molding Servo Robotic Arm Industrial











Warehouse:

Injection Molding Servo Robotic Arm Industrial











2014 Chinaplas in Shanghai:

Injection Molding Servo Robotic Arm Industrial











BORUNTE Robot School & BORUNTE Intelligent Equipment Institute:



Injection Molding Servo Robotic Arm Industrial













CE, SGS, TUV, ISO Certifications:

Injection Molding Servo Robotic Arm Industrial











FAQ

(1) Are you a factory or a trading company?

We are manufacturer in Dongguan City, Guangdong, China.

(2) How to choose a robotic arm industrial?

Step 1: Select traverse stroke, crosswise stroke and vertical stroke according to the tonnage of your injection molding machine.

Step 2: Select single arm or double arms according to the plates of mold.

Step 3: Select single stage or telescopic type according to the height of your transporter crane.

(3) Do you have any certifications?

Yes, we have. All of our robotic arms are CE, SGS, TUV, ISO certificated.

(4) What's your product lead time?

Within 35 days after received payments.

(5) What's the warranty time?

One year.









Why Choose Us?

Why Choose BORUNTE?

(1) The first listed intelligent equipment company in China.

(2) Over 10 years experience in the industry of robotic arm.

(3) CE, SGS, TUV, ISO 9001:2008 certificated.

(4) Over 400 skilled workers, QC department and R&D team to ensure the high quality and fast production.

(5) We are one of China's largest robotic arm manufacturers with the capacity to produce 7000 robotic arms a year. Our sales increased over 40% in 2014.

(6) Only 1 hour reach HK port or Shenzhen port, convenient for shipment.
