Industrial Cartesian Robot For Injection Molding Machine
US$ 7,800 - 9,800
/ Set
1 Set(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Industrial Cartesian Robot For Injection Molding Machine
-
Industrial Cartesian Robot For Injection Molding Machine
-
China Industrial Traverse Pick And Place Robot Price
-
Servo Energy Saving Robotics Automation For Injection Molding Machinery
-
Servo Motor Driven Pick Place Robot Arm
-
High Speed Intelligent Pick And Place Robot Machine
Product Details
| Condition | New | Elevation Speed | 8.5 sec | |
| Vertical Travel(mm) | 700 mm | Horizonal Travel(mm) | P:300 mm R:125 mm | |
| Application | Other, Pick and Place | Place of Origin | Guangdong, China | |
| Brand Name | BORUNTE | Model Number | BRB700IDY Industrial Cartesian Robot For Injection Molding Machine | |
| Weight | 195 kg | Dimension(L*W*H) | 2090*880*1600 mm | |
| Power(W) | 750W | Certification | CE, ISO, SGS, TUV | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Industrial Cartesian Robot

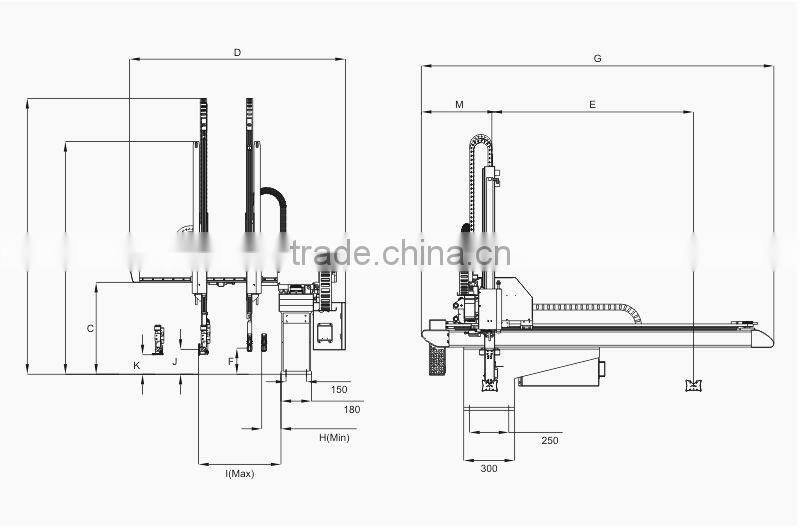

Outer Dimensions:
| Model | A | B | C | D | E | F | G | H | I | J | K | M |
| BRB600IDY | 1540 | 1270 | 545 | 1160 | 1000 | 170 | 1910 | 105 | 610 | 150 | 130 | 385 |
| BRB700IDY | 1600 | 1380 | 545 | 880 | 1200 | 170 | 2090 | 105 | 770 | 150 | 130 | 385 |
Main Specification:
| Model | BRB600IDY/ISY | BRB700IDY/ISY |
| Power Source(KVA) | 0.6 | 0.6 |
| Recommended I.M.M(ton) | 60-120 | 100-200 |
| Traverse Stroke(mm) | 1000 | 1200 |
| Traverse Driven | AC Servo Motor | |
| Crosswise Stroke(mm) | P:300 R:125 | P:300 R:125 |
| Vertical Stroke(mm) | 600 | 700 |
| Max.Loading(kg) | 5 | 5 |
| Dry Take Out Time(sec) | 1.8 | 1.8 |
| Dry Cycle Time(sec) | 8.5 | 8.5 |
| Air Consumption(Nl/cycle) | 25 | 25 |
| Net Weight(kg) | 176 | 195 |

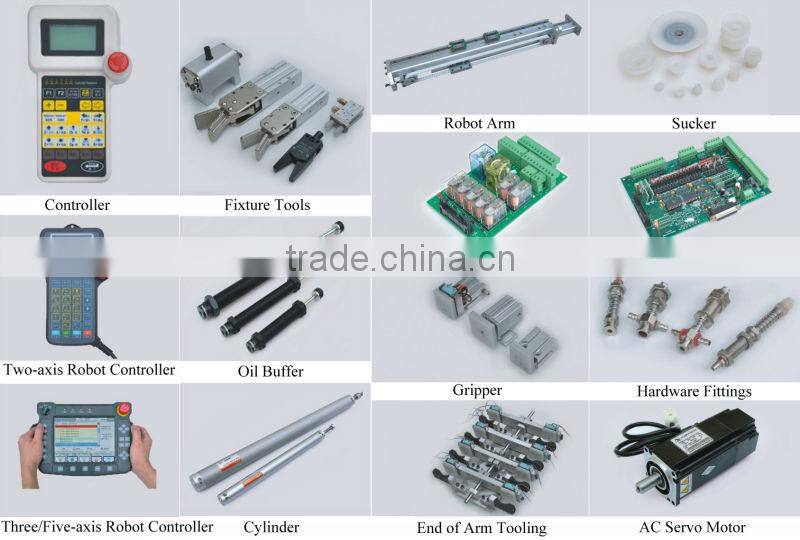

High Quality End-of arm Toolings and Parts:

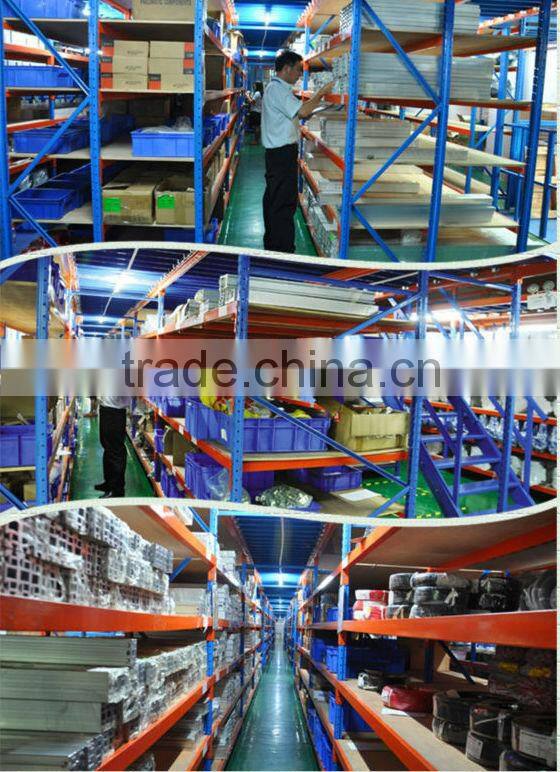

Machinery Parts Warehouse:

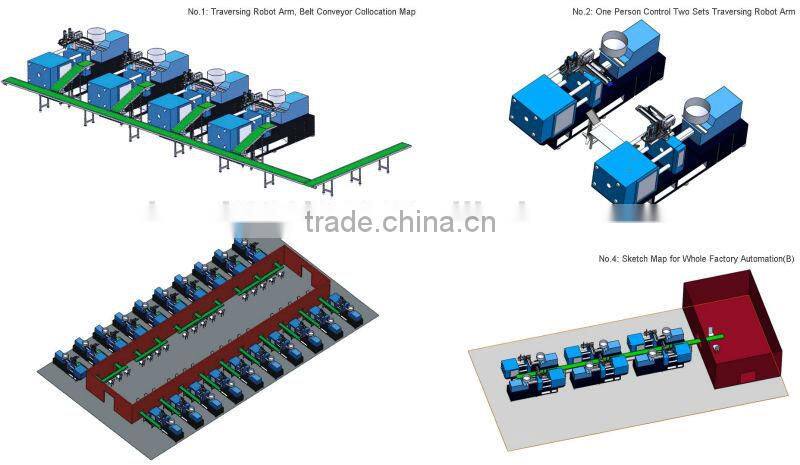

Best Automation Integrated Solution:

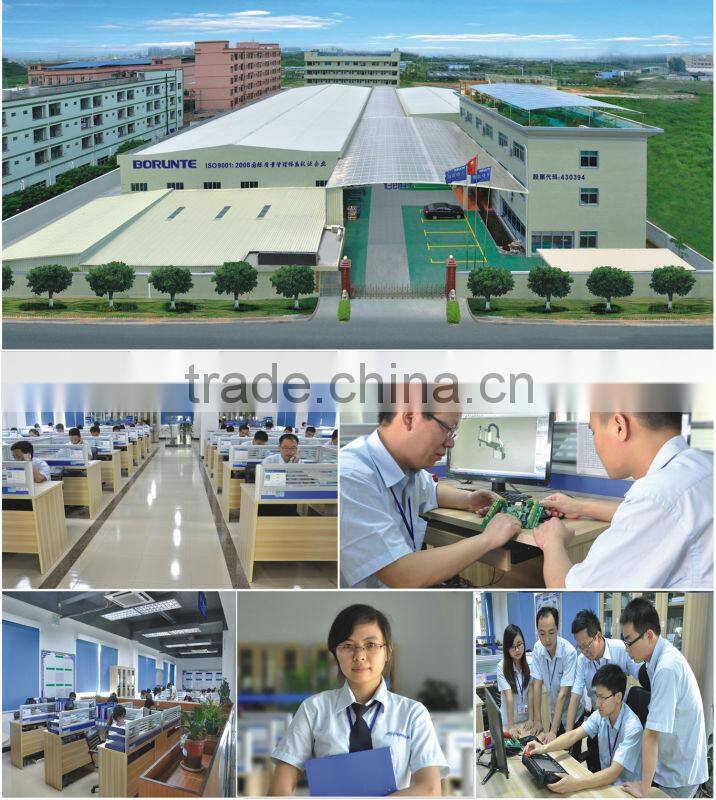

Company:
Certifications:
2014 Shanghai Chinaplas:
Why Choose Us:
1.The first listed intelligent equipment company in China.
2.Over 10 years experience in the industry of intelligent robotic equipment.
3.Provide CE, ISO, TUV, SGS certifications.
4.Our business involves various markets all over the world, include America, England, Australia,
Brazil, Russia and Egypt ect.
Our Service Network:
Please Don't hesitate to contact us, we will give you
a reply within 24 hours!
