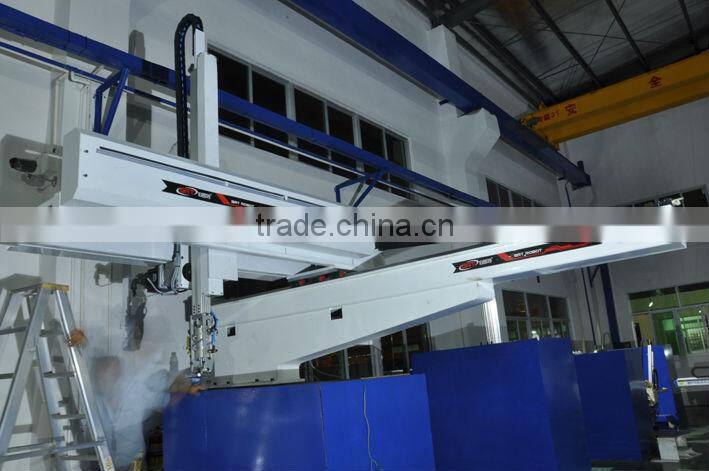

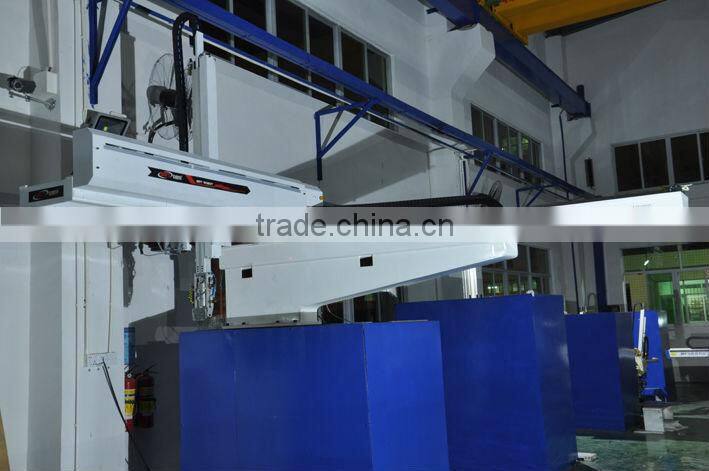

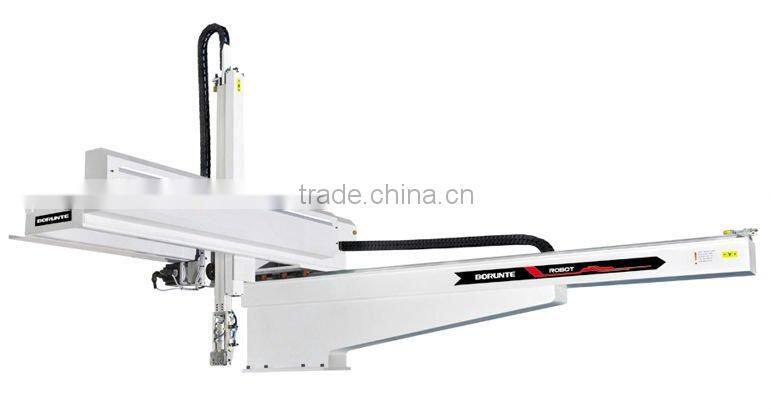

Robotic arm for Injection Moulding Machinery Ranges From 650 Ton to 2200 Ton

Robotic arm for Injection Moulding Machinery Ranges From 650 Ton to 2200 Ton

BRC Series is applicable to all types of horizontal injection machine ranges of 650~2200T for take-out products and sprues. Vertical arm is telescopic type, with single arm and double arms, suitable for three plate mold products take out. Each axle can be driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

l  Palm controller with dialogue type operation interface, the display language is changeable, easy for learn.

l  Eight sets built-in programs, with L/U take out function.

l  Applicable to all types of products take out.

l  Traverse stroke can be used to place products in multiple points (99 points at most) to stacking products.

Denote:

W: Telescopic type.

A: Remote adjustment of crosswise axis.

S: Product arm.

S2: Two-axis driven by AC Servo Motor. (Traverse-axis+ Vertical-axis)

Optional:

S3: Three-axis driven by AC Servo Motor. (Traverse-axis /Vertical axis + Crosswise-axis)

S5: Five-axis driven by AC Servo Motor.

D: Product arm +runner arm.

G: Remote adjustment of vertical axis.
