Specifications
-High crushing ratio.-Even product granularity.
-Simple structure.
-Wide ranges of choice.
-Convenient maintenance.

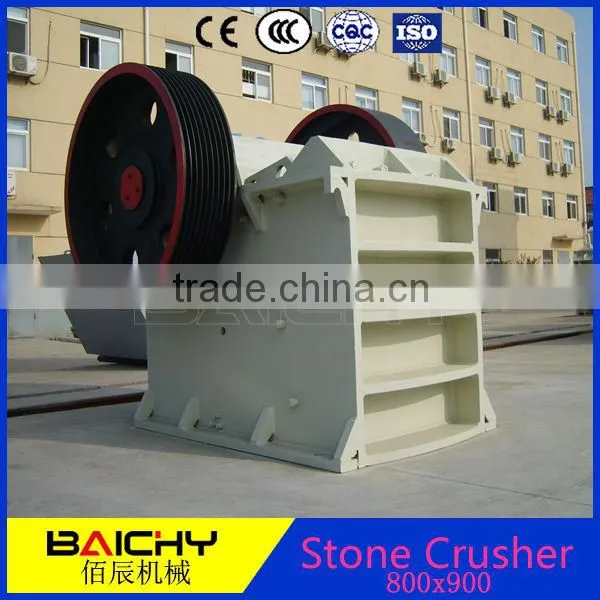

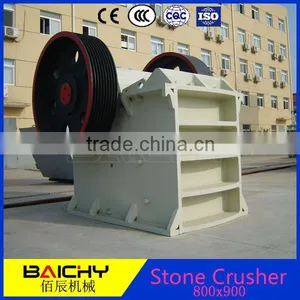

China Best Manufacture High Quality Jaw Crusher
1.Brief introduction of mini jaw crusher
Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well_distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

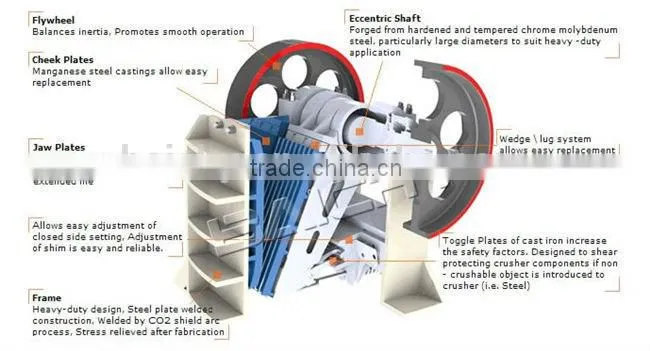

2.Working principle of mini jaw crusher
The electrical motor transmits power to the eccentric shaft through v_belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working. The crusher will crush and discharge periodically to achieve mass production.
3.Features and advantages of mini jaw crusher
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
4.Technical data of mini jaw crusher
Model |
Feeder Opening Size(mm) |
Max. Feeding Size (mm) |
Discharging Opening Size(mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension (mm) |
PE150××250 |
150×250 |
130 |
15-45 |
1-4 |
5.5 |
896×745×935 |
PE250×300 |
250×300 |
150 |
15-55 |
3-6 |
7.5 |
1050×987×1000 |
PE250×400 |
250×400 |
210 |
25-60 |
5-20 |
15 |
1215×1520×1030 |
PE400×600 |
400×600 |
350 |
40-90 |
15-60 |
30 |
1650×1588×1050 |
PE500×750 |
500×750 |
425 |
50-100 |
40-110 |
45 |
1956×1918×1920 |
PE600×900 |
600×900 |
500 |
60-125 |
90-180 |
55 |
2250×2733×2280 |
PE800×900 |
800×900 |
600 |
80-140 |
100-220 |
75 |
2450×2950×2490 |
PE750×1060 |
750×1060 |
630 |
60-150 |
110-380 |
110 |
2531×2455×2783 |
PE900×1060 |
900×1060 |
700 |
100-160 |
180-380 |
110 |
2900×2657×2950 |
PE900×1200 |
900×1200 |
750 |
110-165 |
220-450 |
132 |
3100×2760×3260 |
PE1200×1500 |
1200×1500 |
950 |
115-195 |
250-500 |
220 |
3710×3446×4075 |
PE1500×1800 |
1500×1800 |
1200 |
135-225 |
350-700 |
280 |
5100×4700×4300 |
PEX150×750 |
150×750 |
120 |
10-40 |
5-16 |
15 |
1310×1118×1145 |
PEX250×750 |
250×750 |
210 |
15-50 |
15-30 |
22 |
1440×1751×1515 |
PEX350×750 |
350×750 |
300 |
15-50 |
18-40 |
30 |
1485×1680×1648 |
PEX250×1000 |
250×1000 |
210 |
15-60 |
15-60 |
30 |
1550×1964×1380 |
PEX250×1200 |
250×1200 |
210 |
15-60 |
20-60 |
37 |
1530×1946×1380 |
PEX300×1300 |
250×1300 |
250 |
25-60 |
10-65 |
55 |
2000×2320×1730 |
PEX400×1200 |
300×1300 |
350 |
10-19 |
30-80 |
45 |
1628×2270×1651 |
5. Application of mini jaw crusher
Widely used in metallurgy, mining, chemical, cement, construction, refractories and ceramics and other industrial.

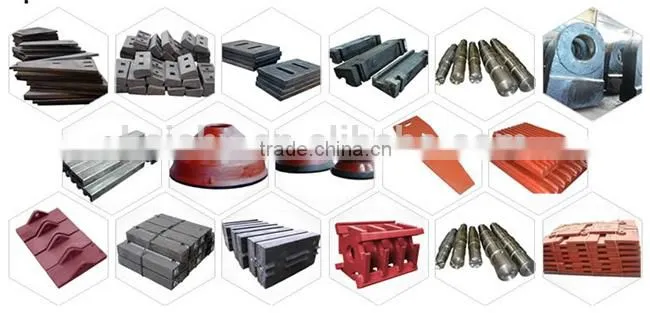

6.Spare parts of mini jaw crusher

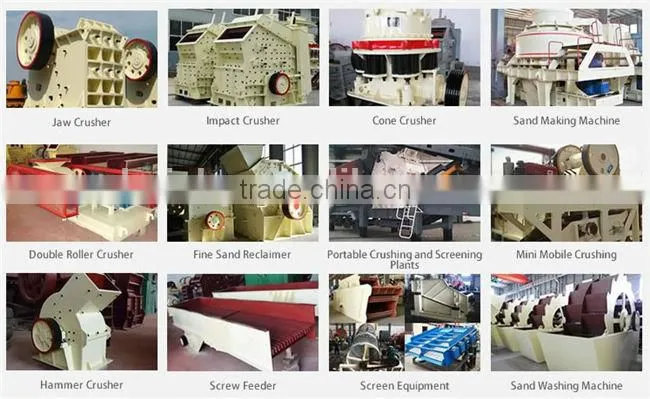

7.With more than 10 years of manufacturing stone jaw crusher, we can also supply:
(1) Crushers: jaw crusher, cone crusher, impact crusher, etc.
(2) Sand-making machine: VSI crusher, PCL crusher, PL crusher;
(3) Accessorial equipment: vibrating feeder, vibrating screen, belt conveyors, sand-washing machine, magnetic separators;
(4) Stone crushing plant: from 50 tons per hour to 1000 tons per hour;
(5) Sand-making plant: from 50 tons per hour to 500 tons per hour;
(6) Mobile crushing plant: from 50 tons per hour to 500 tons per hour;
(7)Mobile Construction waste recycling plant: From 50Tons per hout to 500tons per hour

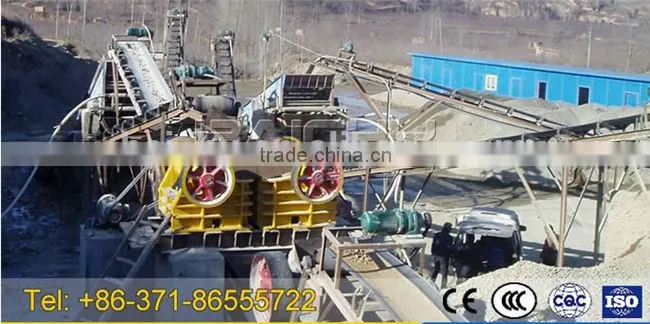

8.Work site of mini jaw crusher
FAQ of mini jaw crusher
1.What is your material
2.What size of your material
3.What size of your finished production
4.What capacity do you want
Welcome to our factory to visit,waiting for your inquiry on our mini jaw crusher!!
