Welcome to learn about Henan baichy machinery equipment Co.,ltd.We produce many kinds of
crushing machines,also supply crushing plants,we have professional engineer ,well-quality equipments and wonderful services,welcome to contact me,i am maggie.My skype:maggiejia1216
Granite Crushing Plant Made In China

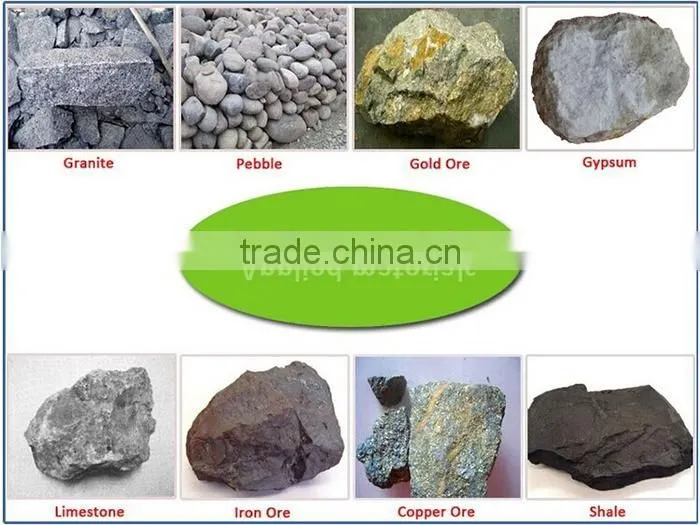

stone crushing line raw materials:
Gravel crushing process of limestone, granite, marble, basalt, iron ore, river pebble, shale, bluestone, coal, cobblestone, construction waste.
stone crushing line application:
Metallurgy, construction, water & electricity, transportation, chemical industry, building materials industry.

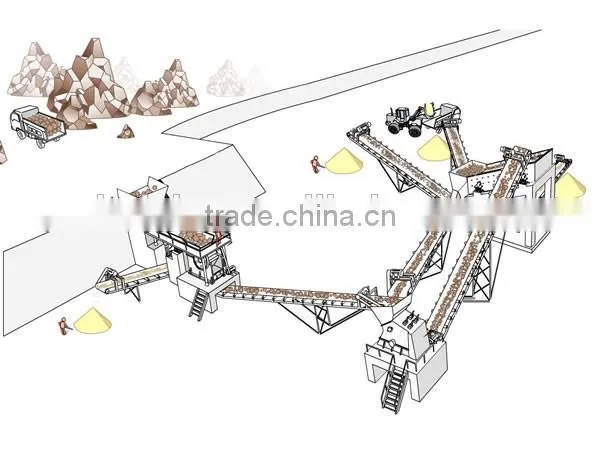

stone crushing line working principle:
Raw materials are screened and carried by vibrating feeder which conveys large materials into jaw crusher equably for primary crushing. Crushed materials will be transported by belt conveyor into cone crusher for fine crushing, and then materials enter into circular vibrating screen for screening to distinguish the different specifications of finished product, and unqualified gravel will be conveyed into cone crusher to be crushed again.

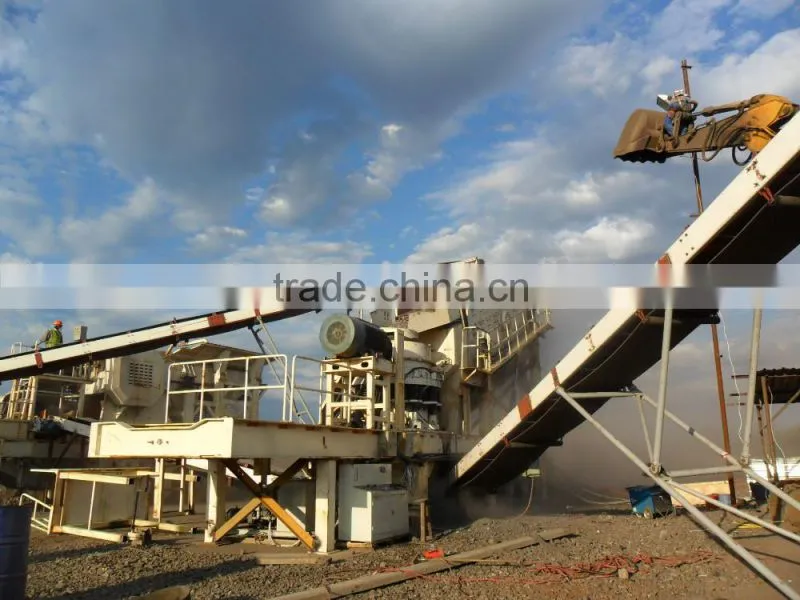

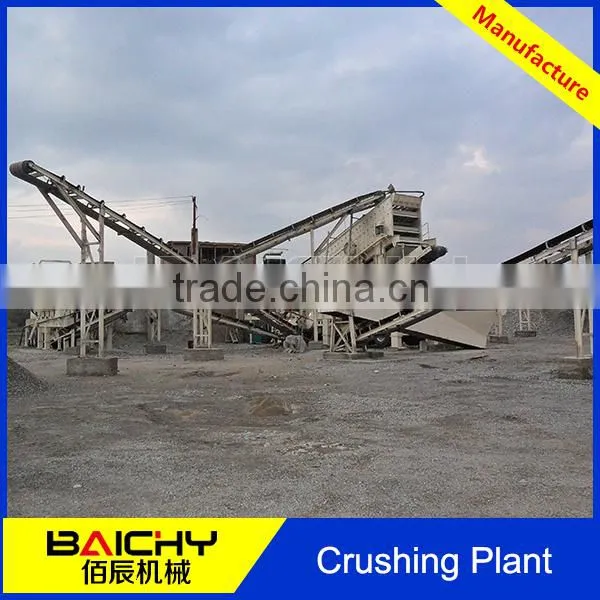

Stone crushing plant can devide to two kinds:one is for mobile crushing plant,and the other is for stationary type crushing plant.They all widely used in stone crushing,clients often choose according to their worksite situation and their need.
mobile crushing plant
stationary type crushing plant

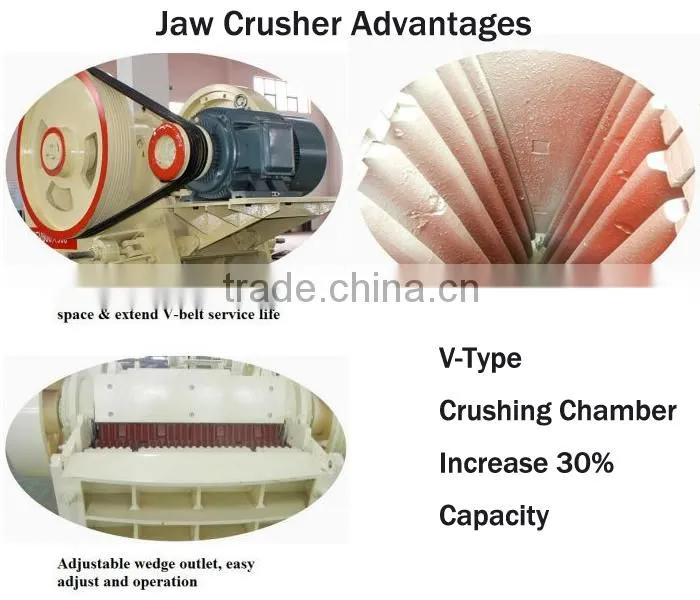

Working Principle of Jaw crusher:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft.When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.

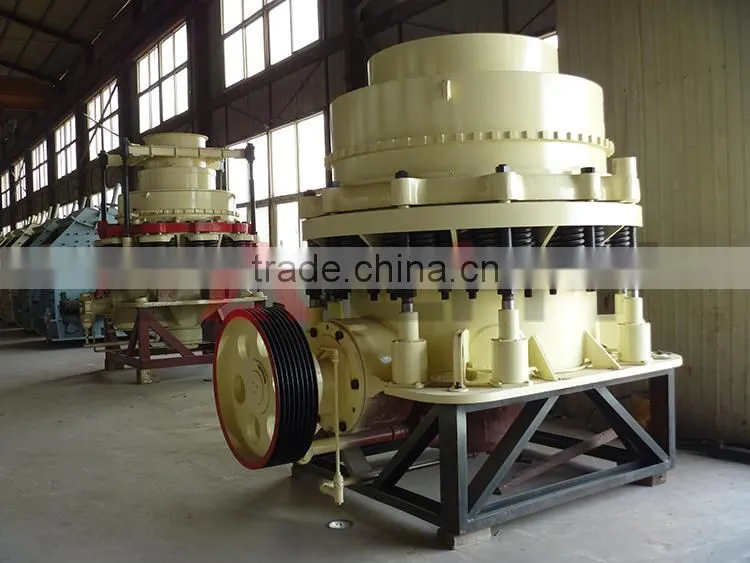

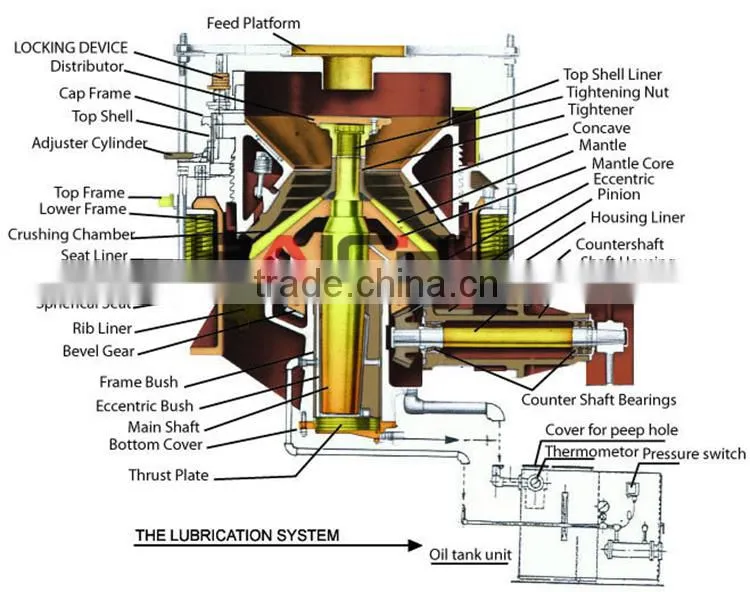

Spring cone crusher
Technical Data of spring cone crusher:
| Model | Cone Dia.(mm) | Max. Feed Size(mm) | Adjusting Range of Output Size(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) | Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|
| PYB-600 | 600 | 65 | 12-25 | 15-25 | 30 | 5 | 2800×1300×1700 |
| PYD-600 | 600 | 35 | 3-15 | 5-23 | 30 | 5.5 | 2800×1300×1700 |
| PYB-900 | 900 | 115 | 15-50 | 50-90 | 55 | 10.2 | 3050×1640×2350 |
| PYZ-900 | 900 | 60 | 5-20 | 20-65 | 55 | 10.2 | 3050×1640×2350 |
| PYD-900 | 900 | 40 | 3-13 | 15-50 | 55 | 10.3 | 3050×1640×2350 |
| PYB-1200 | 1200 | 145 | 20-50 | 110-200 | 110 | 24.7 | 4152×2300×2980 |
| PYZ-1200 | 1200 | 100 | 8-25 | 50=150 | 110 | 25 | 4152×2300×2980 |
| PYD-1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 25.6 | 4152×2300×2980 |
| PYB-1750 | 1750 | 215 | 25-60 | 280-480 | 155-160 | 50.3 | 4870×3800×4192 |
| PYZ-1750 | 1750 | 185 | 10-30 | 115-320 | 155-160 | 50.3 | 4870×3800×4192 |
| PYD-1750 | 1750 | 85 | 5-15 | 75-230 | 155-160 | 50.4 | 4870×3800×4192 |
| PYB-2200 | 2200 | 300 | 30-60 | 590-1000 | 260-280 | 80 | 7705×3430×4852 |
| PYZ-2200 | 2200 | 230 | 10-30 | 200-580 | 260-280 | 80 | 7705×3430×4852 |
| PYD-2200 | 2200 | 100 | 5-15 | 120-340 | 260-280 | 81.4 | 7705×3430×4852 |

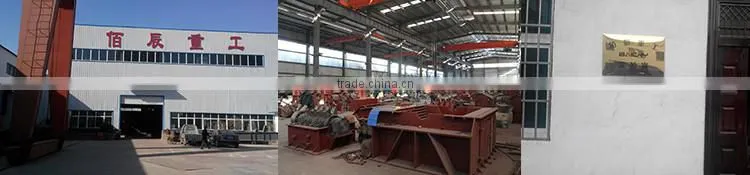

1.Factory,NOT Dealer
All machinery from Henan Baichy Machinery are made by ourselves, the lower price with the same goods, good quality, after service can be assured. So please buy from factory.
2. Customers' Satisfaction
We will do our best to satisfy every customer's needs Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.we will leave 5% retention money for 3 months to show our sincerity. You can pay it after the machine go into normal operation.
3. Training & Service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provi de one-year warrantee to make sure your machine runs consistently. We always keep certa of inventory level of spare parts, which means the replacements can be shipped to you right away.
4. Technical Support
If you are new for this business, I will help you Many thanks for your trust; we can provid e you with the pre-services of design scheme for complete production lines, spot inspectio n and operator training according to your demands and the conditions of applied spot, we ca n help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on.
5.Best Quotation
We will recommend a suitable type for you and send you a best quotation with our Sincere and professional technology.
IF YOU HAVE INTERESTED IN OUR stone crushing line ,PLEASE CONTACT ME!!!
