Specifications
CS Symons Cone Crusher Machine:Even granularity
Simple structure
Easy maintenance
ISO9001:2008

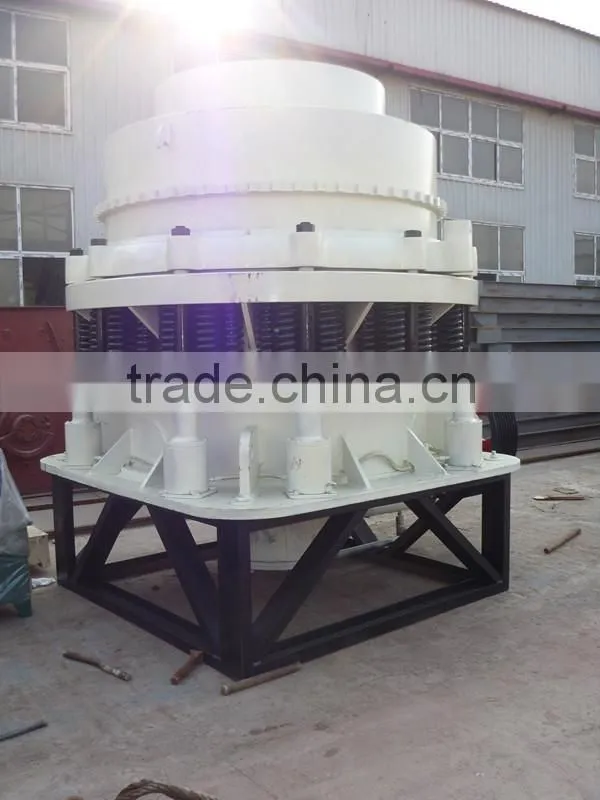

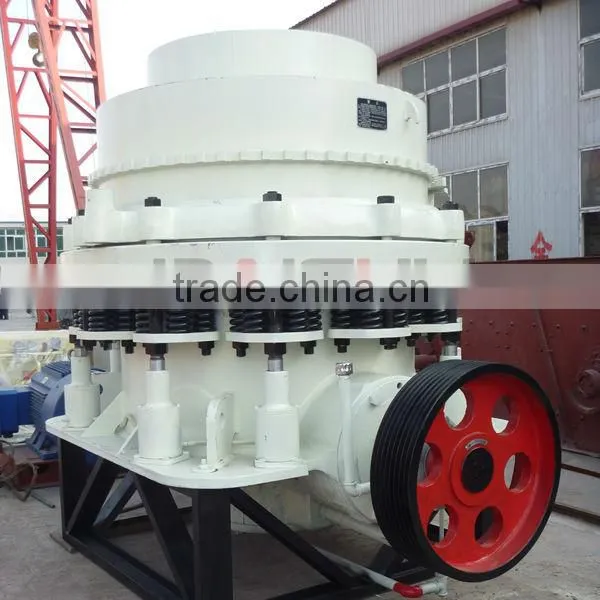

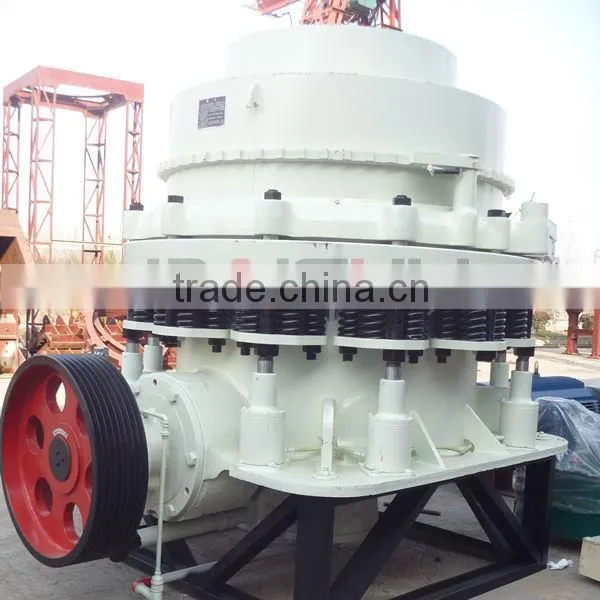

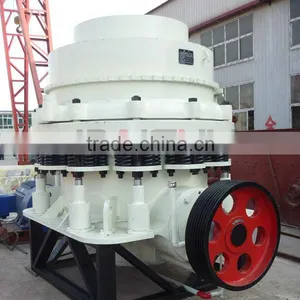

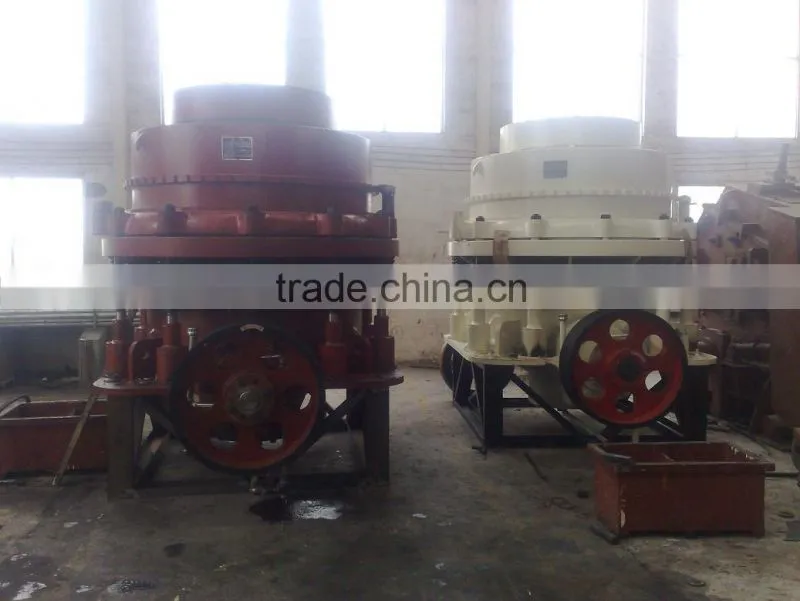

CS Symons Cone Crusher Machine
CS Symons cone crusher machine is our company according to user needs, based on laminated crushing principle and the concept of more broken less grinding design development of a set of high-frequency pendulum, optimize cavity type, reasonable stroke in one of the modern high-performance crusher. Baichy Symons Cone crusher with reliable structure, high efficiency, easy adjustment and economic characteristics.
CS Symons cone crusher machine working principle
When CS series efficient spring cone crusher machine work, motor through V-belt, a large pulley, drive shaft, a small bevel gear, a big bevel gear driven eccentric rotation, main shaft under the forced motion of eccentric bushings do rotary swing, making the crushing wall sometimes close and sometimes far away from the bowl, so that the material in the ring crushing cavity which be composed of fixed cone and moving cone constantly under attack, pressing and bending and breaking. After repeated extruded, shock and bent, the material crushing to the required particle size by the lower discharge.
CS Symons cone crusher Parameters:
| Model | Moveable Cone Dia.(mm) | Cavity Type | Feeder Opening Size | Discharging Opening Size(mm) | Main Shaft Speed(r/min) | Power(kw) | Capacity(t/h) | Weight(t) | Overall Dimension(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Shutting Size(mm) | Opening Size(mm) | |||||||||
| CS75B | 900(3′) | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 15 | 2821×1880×2164 |
| Coarse | 159 | 175 | 13-38 | 59-163 | ||||||
| CS110B | 1200(4′) | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 20 | 2821×1974×2651 |
| Medium | 156 | 156 | 13-38 | 100-200 | ||||||
| Coarse | 178 | 191 | 19-51 | 141-308 | ||||||
| CS160B | 1295(4 1/4′) | Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 27 | 2800×2342×2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | ||||||
| Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| CS220B | 1650(5 1/2′) | Fine | 188 | 209 | 16-38 | 485 | 220 | 181-327 | 55 | 3911×2870×3771 |
| Medium | 213 | 241 | 22-51 | 258-417 | ||||||
| Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| CS315B | 2134(7′) | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 110 | 4631×3251×4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | ||||||
| Coarse | 334 | 369 | 31-64 | 798-1270 | ||||||
Short Head CS Series Cone Crusher
| Model | Moveable Cone Dia.(mm) | Cavity Type | Feeder Opening Size | Discharging Opening Size(mm) | Main Shaft Speed(r/min) | Power(kw) | Capacity(t/h) | Weight(t) | Overall Dimension(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Shutting Size(mm) | Opening Size(mm) | |||||||||
| CS75D | 914(3′) | Fine | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 15 | 2821×1880×2410 |
| Coarse | 33 | 60 | 3-16 | 27-100 | ||||||
| CS110D | 1218(4′) | Fine | 29 | 57 | 5-16 | 485 | 110 | 50-132 | 20 | 2560×1942×2928 |
| Medium | 44 | 73 | 10-16 | 90-145 | ||||||
| Coarse | 56 | 89 | 13-19 | 141-181 | ||||||
| CS160D | 1295(4 1/4′) | Fine | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 27 | 2800×2342×2668 |
| Medium | 54 | 89 | 6-16 | 82-163 | ||||||
| Coarse | 70 | 105 | 10-25 | 109-227 | ||||||
| CS220D | 1676(5 1/2′) | Fine | 35 | 70 | 5-13 | 485 | 220 | 90-209 | 55 | 3917×2870×3771 |
| Medium | 54 | 89 | 6-19 | 136-281 | ||||||
| Coarse | 98 | 133 | 10-25 | 190-336 | ||||||
| CS315D | 2134(7′) | Fine | 51 | 105 | 5-16 | 435 | 315 | 190-408 | 110 | 4130×3251×4454 |
