Specifications
1.Hot sale Hammer Crusher Machine2.Large crushing ratio
3.Even granularity
4.Simple structure&easy maintenance
5.ISO9001
2014 Top Competitive Price Hammer Crusher Machine From China Manufacturer

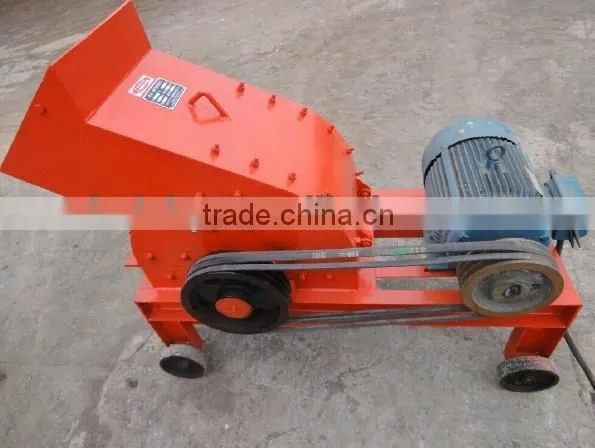

1.Brief introduction of hammer crusher:
The series of hammer crushers breaks the materials by the collision the high-speed rotating hammer block and the colliding surface of the materials.
It is a kind of crusher which can break the materials with max particle size of 600-18000mm into the materials with 25mm or below 25mm.
2.Features and advantages of hammer crusher:
It has simple structure, high breaking rate and high production efficiency. The working hammer adopts new craft casting; it has anti-abrasive and Dural-impact. Adjust the particle size according to the requirement of the customer. The structure of hammer crusher body is sealed and solves the problems of the dust polluted and leaking dust of the machine body.
The whole design has good appearance, compact structure, easy maintenance, light body, and small size. The grain size outfeed is even and there is less crash power.
3. Application of hammer crusher:
It is widely used in the metallurgy, building materials, cement, mining and other industry sectors, got the praise from many users.
| Model | Rotor Size(mm) | Feed Opening(mm) | Feeding Size(mm) | Capacity (t/h) | Power(kw) | Weight (t) | Overall Dimension (L×W×H) (mm) |
|---|---|---|---|---|---|---|---|
| PC-0706 | Φ700×570 | 618×510 | ≤400 | 50-70 | 75 | 3.2 | 1950×1340×1480 |
| PC-0808 | Φ800×750 | 780×610 | ≤500 | 80-100 | 132 | 5.3 | 2280×1790×1670 |
| PC-0910 | Φ900×1000 | 1070×750 | ≤600 | 150-200 | 110×2 | 9.8 | 2600×2200×1940 |
| PC-1012 | Φ1000×1180 | 1255×810 | ≤650 | 250-300 | 132×2 | 13.2 | 2800×2310×2210 |
| PC-1213 | Φ1200×1280 | 1350×900 | ≤750 | 300-350 | 160×2 | 17.1 | 2970×2580×2510 |
| PCZ1308 | Φ1310×790 | 850×800 | ≤600 | 100-160 | 132 | 11.2 | 2818×2100×2390 |
| PCZ1510 | Φ1500×900 | 1000×900 | ≤700 | 160-210 | 132×2 | 17.1 | 3260×2414×2750 |
| PCZ1512 | Φ1500×1160 | 1200×900 | ≤750 | 250-320 | 160×2 | 18.9 | 3260×2624×2750 |
| PCZ1615 | Φ1650×1452 | 1500×1200 | ≤1000 | 360-420 | 200×2 | 32 | 3456×2915×3185 |
| PCZ1620 | Φ1660×1900 | 2000×1200 | ≤1200 | 500-800 | 315×2 | 46 | 3500×3100×3200 |
