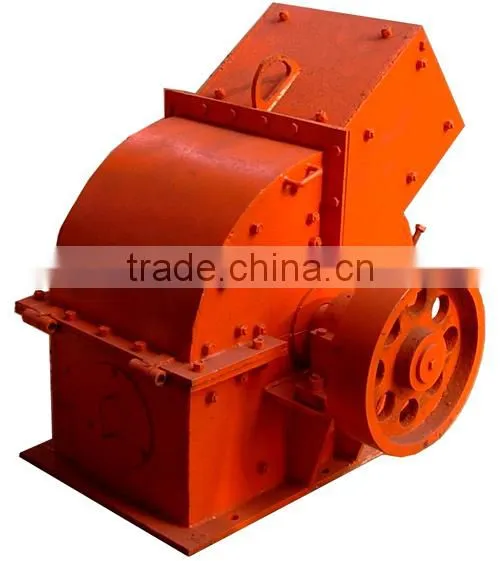

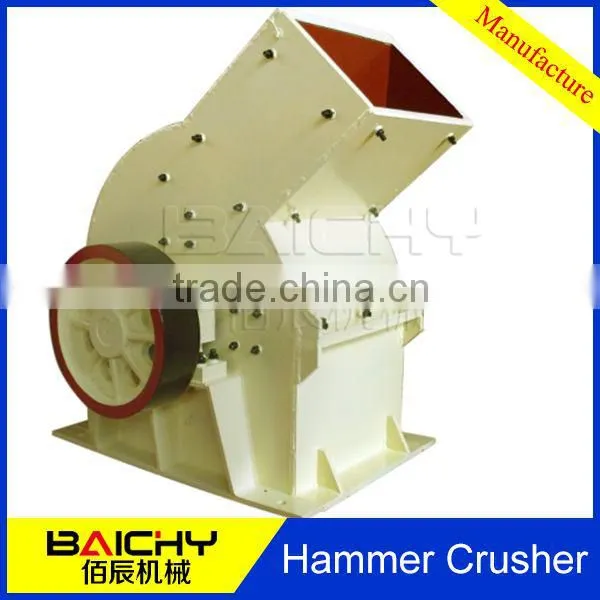

Limestone Hammer Crusher Design
1.Brief introduction of hammer crusher:
The series of limestone hammer crusher design breaks the materials by the collision the high-speed rotating hammer block and the colliding surface of the materials.
It is a kind of crusher which can break the materials with max particle size of 600-18000mm into the materials with 25mm or below 25mm.
2.Features and advantages of hammer crusher:
Limestone hammer crusher has simple structure, high breaking rate and high production efficiency. The working hammer adopts new craft casting; it has anti-abrasive and Dural-impact. Adjust the particle size according to the requirement of the customer. The structure of hammer crusher body is sealed and solves the problems of the dust polluted and leaking dust of the machine body. The hammer crusher design has good appearance, compact structure, easy maintenance, light body, and small size. The grain size outfeed is even and there is less crash power.
3. Technical parameters of hammer crusher:
| Model | Rotor Size(mm) | Feed Opening(mm) | Feeding Size(mm) | Capacity (t/h) | Power(kw) | Weight (t) | Overall Dimension (L×W×H) (mm) |
|---|---|---|---|---|---|---|---|
| PC-0706 | Φ700×570 | 618×510 | ≤400 | 50-70 | 75 | 3.2 | 1950×1340×1480 |
| PC-0808 | Φ800×750 | 780×610 | ≤500 | 80-100 | 132 | 5.3 | 2280×1790×1670 |
| PC-0910 | Φ900×1000 | 1070×750 | ≤600 | 150-200 | 110×2 | 9.8 | 2600×2200×1940 |
| PC-1012 | Φ1000×1180 | 1255×810 | ≤650 | 250-300 | 132×2 | 13.2 | 2800×2310×2210 |
| PC-1213 | Φ1200×1280 | 1350×900 | ≤750 | 300-350 | 160×2 | 17.1 | 2970×2580×2510 |
| PCZ1308 | Φ1310×790 | 850×800 | ≤600 | 100-160 | 132 | 11.2 | 2818×2100×2390 |
| PCZ1510 | Φ1500×900 | 1000×900 | ≤700 | 160-210 | 132×2 | 17.1 | 3260×2414×2750 |
| PCZ1512 | Φ1500×1160 | 1200×900 | ≤750 | 250-320 | 160×2 | 18.9 | 3260×2624×2750 |
| PCZ1615 | Φ1650×1452 | 1500×1200 | ≤1000 | 360-420 | 200×2 | 32 | 3456×2915×3185 |
| PCZ1620 | Φ1660×1900 | 2000×1200 | ≤1200 | 500-800 | 315×2 | 46 | 3500×3100×3200 |

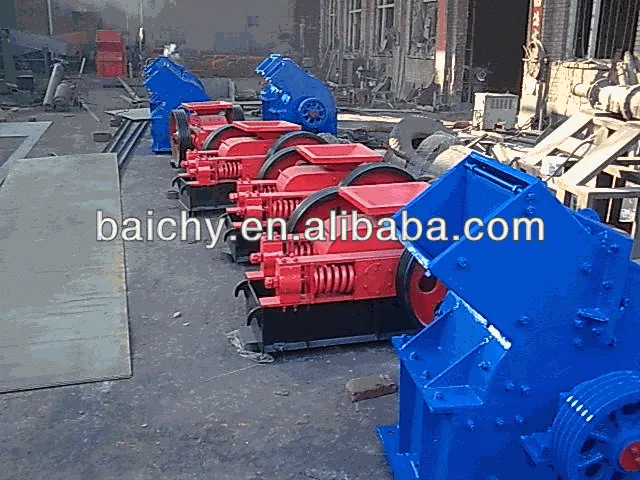

BAICHY Introduction
Henan Baichy Machinery Equipment Co., Ltd. was founded in 2003, and now it has been becoming a high-tech mining company. Our company integrates research and development, designing, manufacturing, sales and after-sales services. The brand products, cone crusher, sand making machine, high-efficient fine crusher, high-pressure medium-speed mill, vertical mill, micronizer, three-ring mill, ball mill, etc, are in the leading level of the world. Our company became the member of "CSSA Chinese gravel Association", and all the products have gained ISO9001: 2008 quality management system certificate and IQNet international certification.
BAICHY Honor
