Specifications
AAC blcok making line1.Supply the whole set of equipment
2.Provide on-site guidance freely
3.ISO9001,CE
AAC blocks making line
1. brife introduction of AAC blocks making line
It is a new type building materials-light weight concrete block. Our company is one
of the biggest factories which produces full set of AAC production line. We are most professional manufacturer more than 20 years. We are not only supply AAC equipment, but also can take charge of design for AAC plant productline of yearly capacity of 50000/100000/150000/200000/300000M3, incl, design, equipments installation, technical instruction, personal training,etc. and can also design and manufacture according different's requirement.
2.Technological process
1. The raw material is stored in the material storehouse, after according to the automatic batcher then enter into the pouring mixer.
2. Pour and enter to the mould after mixing evenly.
3. After precuring a certain temperature for a period of time, the base body reach a certain of hardness, the mould and base body are hung to the cutting machine by the sling. The sling is fulfill the following functions:
1)Titling the mould 90°in the air(one side plateof the mould become the bottom to support the base body ubtil the finished product is steamed).
2)Hanged to the cart or the cutting support to open mould or demoulding.
3)The demoulded frame and returned side plate shall be reorganized into the mould and shall be ready for nest pouring after cleaning and oil spraying.

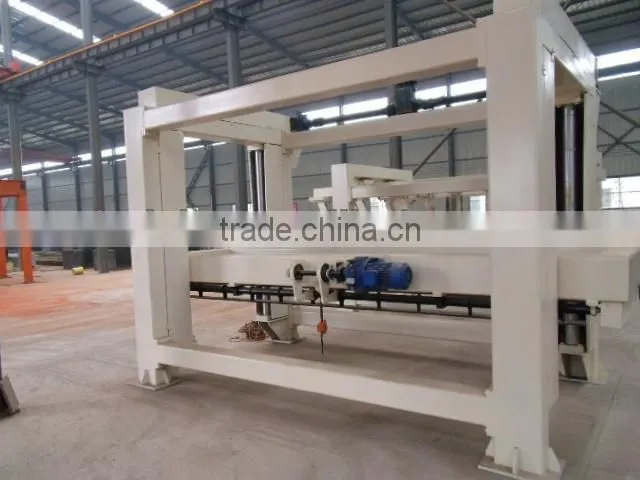

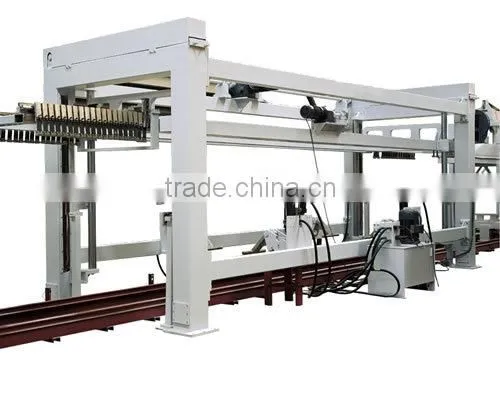

4. The base body then be cut on the cutting machine in six sides:
1)The base body carries on the side and cuts and mills the trough vertically.
2)Then carry on the vertical level to cut.
3)Cut horizontally finally.

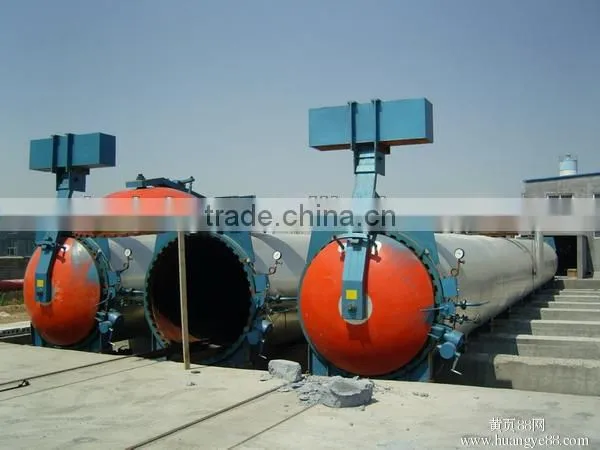

5. The base body which is cut and the bottom are hanged to the steam-pushing car by the semi-product sling, then fed into the autoclave in groupe to be steamed under high temperature.
6. After a period of steaming, then leave the autoclave and is hanged by the sling. The hardening plates are returned.
3.The advantage of AAC plant
Light weight, heat preservation, sound isolation, high strength, processable property and so on, in addition, the raw materials of AAC are abundant. Especially, it can not only make use of industrial waste residue, improve environmental pollution, and protect tillable field, but also create favorable social and economic benefits to take
fly ash as the raw material of AAC block and brick. It is the perfect wall material to replace the traditional solid clay brick.
4. Fly ash style aerated block raw material proportion
Parameter Name |
Parameter Value |
Fly ash |
65-70% |
cement |
6-15% |
lime |
18-25% |
gypsum |
3-5% |
Aluminum powder paste |
8 |
Water & material rate |
0.60-0.65 |
Casting temperature |
36-40°C |
Aluminum mixing time |
30-40s |

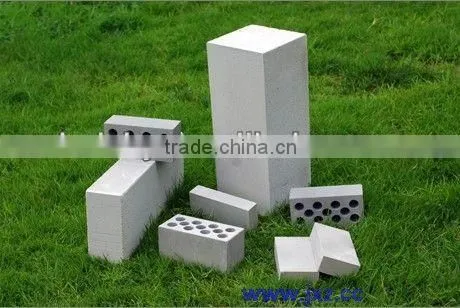

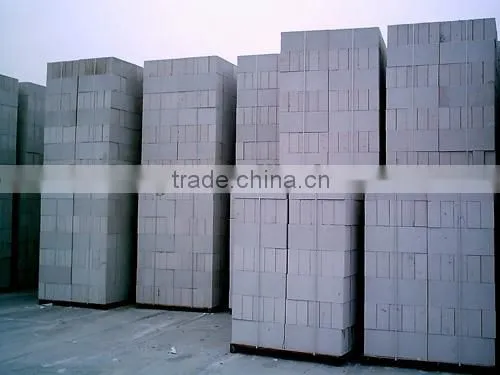

5,AAC Block

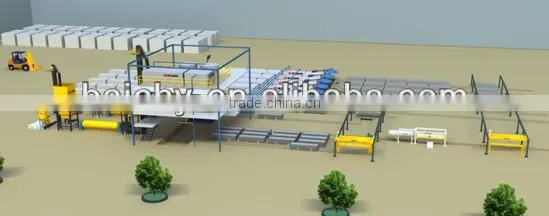

5,AAC plant
6.AAC plant inspection
We're looking forward to you inquiry
