Specifications
Brick making machine1.Pastes, steam curing sand brick, brick and hollow brick colored pavement.
2.high efficiency
Brick Making Machine
1. Brick Making Machine

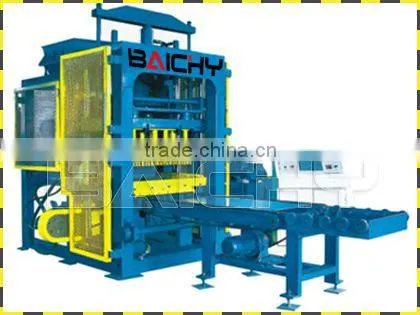

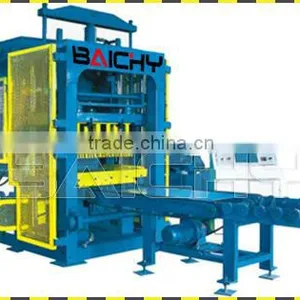

JL4-15 Hydraulic Bricks Machine is suitable for the production of high-intensity green bricks, hollow blocks, etc., face pack, road tiles and so on. The products manufactured brick high compressive strength, size standards, beautiful appearance. This product uses the PLC intelligent control and man-machine interface dialogue system, easy to implement random signal analysis, fault diagnosis and various parameter settings to ensure the best working results.
2.Main technical data
Main technical parameters:
| Forming Cycle (s) | Pallet Pattem (mm) | Installed Capacity (kw) | Weight (t) | Dimension (mm) |
|---|---|---|---|---|
| 15 | 900×540×40 | 26.8 | 6.5 | 6120×2240×2750 |
Capacity:
| Type | Product Spec. (mm) | Qty. Of Each Pallet (pcs) | Block/8hr (pcs) |
|---|---|---|---|
| Block | 390×190×190 | 4 | 7680 |
| Multi-hole Brick | 240×115×90 | 14 | 26880 |
| Standard Brick | 240×115×53 | 28 | 53760 |
3.Characteristic feature
1. Unique structure. Using a special cutting and broken arch structure, through the bins with multiple rows of mixing fork. Bins to the top of the mold box when mixing fork work on forced me die cutting, cutting to ensure smooth and uniform fabric, to ensure product strength, weight uniformity.
2. Super exciting force design, the use of computer-controlled hydraulic system flow, pressure, achieve vertical synchronous vibration, frequency conversion, braking, ensure products in the short term to achieve high strength, high density.
3. A multi-purpose machine, we are cutting molds used in all specifications provided by the customer, applicability, equipped with different mold can produce various shapes, sizes wall block, brick, etc., which can meet different needs of customers.
4.Picture show
