Specifications
Brick making machine1.Pastes, steam curing sand brick, brick, brick, brick and hollow brick colored pavemen
2.high quality

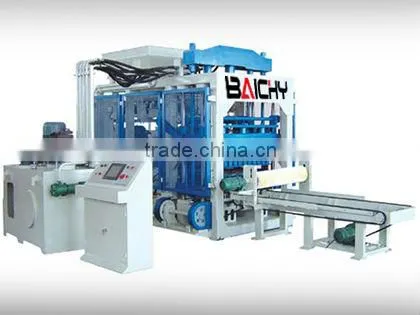

JL6-15 Brick Making Machine
1. Brick Making Machine
JL6-15 Automatic Block Making Machine referred JL6-15 Bricks Making Machine is our own production company on the basis of summing up experiences, continuous improvement, and actively explore and study crystals. The machine forming machine is hydraulic rotation and vibration compression molding, the mold box through releasing oil cylinder locking the vibration table, so that vibration mode sets together to increase the vibration acceleration effect of the concrete in full within two to three seconds liquefaction, exhaust, to achieve high density, high strength. Get very good results, molding cycle just 15 - 18 seconds to leave the floor after forming health, and spend a lot of floor investments. Hydraulic pressure system which mainly sent to the respective board or backplane, feeding, back material, compression extrusion products, mechanical secondary, sending bricks each other to shorten molding cycle. This product uses the forced feeding, the traditional way is difficult to feed materials evenly to join mold box, JL6-15 type brick using cloth box is equipped with multi-row mixing fork, mold me to the top of mixing fork work and then be forced feeding on the mold box .
2.Main technical data
Main technical parameters:
| Forming Cycle (s) | Pallet Pattern | Installed Capacity (kw) | Overall Dimension (L×W×H) (mm) |
|---|---|---|---|
| 15 | 850×660×40 | 32.5 | 6600×1990×3000 |
Capacity:
| Name | Product Spec. (mm) | Qty. For Each Pallet (pcs) | Qty./8hr (pcs) |
|---|---|---|---|
| Block | 390×190×190 | 6 | 11520 |
| Multi-hole Brick | 240×115×90 | 15 | 28800 |
| Standard Brick | 240×115×53 | 30 | 57600 |
3.Characteristic feature
1.JL6-15 Bricks Making Machine body using high-precision, high strength castings and special welding techniques and materials, rigid, resistant to vibration, long life, easy maintenance and low failure rate.
2. Pressurized hydraulic control system, forming a vibration table, the production quality standard brick dense, high strength, dimensional accuracy.
3. A multi-purpose machine, die cutting using now, its specifications with customers to provide their own (different specifications of standard bricks, pavers, hollow brick, brick, etc.), in order to meet the different needs of different customers
4. Full use of PLC intelligent control and man-machine interface dialogue system, easy to implement random signal analysis, fault diagnosis and various parameter settings ensure the best results, we save time, improve work efficiency
4.Picture show
We're looking forward to you inquiry
