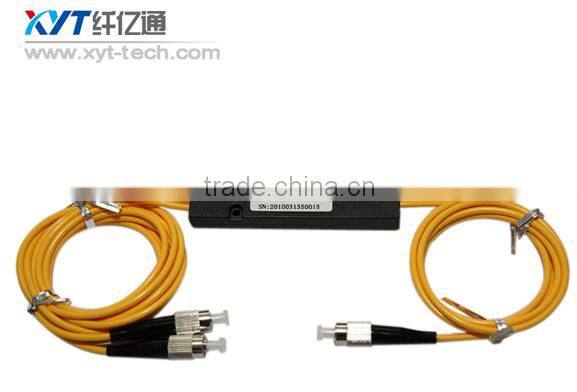

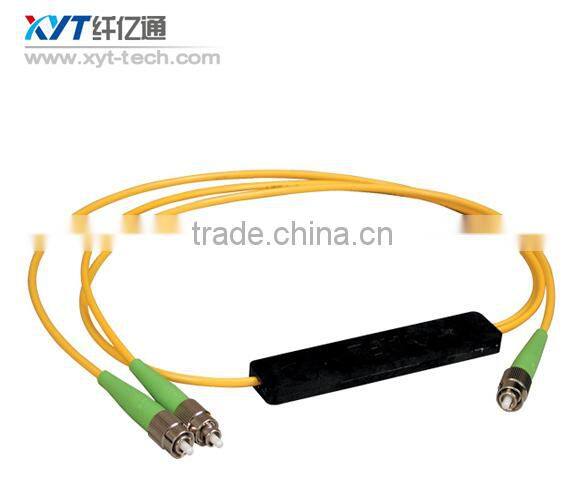

2x2 abs box multi mode 850nm quick fiber optic coupler optical coupler splitter
Features:
Small Mode Influence
Wide Passband
High Reliability
Applications:
Multimode Communication Systems
Fiber Sensor Systems
Instruments
Specification
Parameters |
Unit |
P |
A |
||
Wavelength |
nm |
850& 1310&1490& 1550 |
|||
|
Insertion loss
|
50/50 |
dB |
≤3.7/3.7 |
≤4.0/4.0 |
|
60/40 |
≤2.9/4.8 |
≤3.2/5.1 |
|||
70/30 |
≤2.1/6.2 |
≤2.4/6.5 |
|||
80/20 |
≤1.6/8.2 |
≤1.9/8.5 |
|||
90/10 |
≤1.1/11.8 |
≤1.5/12.4 |
|||
Directivity |
dB |
≥40 |
|||
Fiber Type |
/ |
50/125 or 62.5/125Mulitmode fiber or on customer requested |
|||
Working Temperature |
°C |
-40 ~ +85 |
|||
Storage Temperature |
°C |
-40 ~ +85 |
|||
Package |
mm |
Bare Fiber: |
Ø3X54 |
||
0.9mm loose tube |
Ø3X60 |
||||
2mm or 3mm cable |
100X80X10 |
||||
Note: 1. The above specifications are without connector
2. Other specification can be made on customer request
Ordering Information
Wavelength |
Structure |
Grade |
Coupling Ratio |
Pigtial Type |
Fiber Length |
Connector |
Package |
|
13=1310 15=1550 85=850 |
1=1X2 2=2X2 |
P A |
50=50:50 30=30:70 10=10: 90 |
0=bare fiber 1=0.9mm loose tube 2=2mm cable 3=3mm cable |
05=0.5m 10=1.0m 15=1.5m |
0=none 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC 6=others |
3x54 3x60 |
Sharetop Technology Co.,Ltd. is located at Puhua Technology Zone, Shenzhen, Guangdong Provence, China. It is a
leading manufacturer, exporter and supplier of high-quality and cost efficient fiber optic equipment for
telecommunication. It has received high reputation on its high-quality product and top-ranking service over years running.
Why you choose us?
Firstly,”High quality is our culture”. All of our products will be specially and carefully tested before delivery. Our product will give you an edge over your competitors.
Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.
Thirdly,”With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.
Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.
Different products will be packed differently.
3-5 workdays,customized products excepted.
Ask me anything, Thank you very much.
If you still have doubts about our company or our products, please feel free to ask us.
We will be very delighted to answer all your questions.
