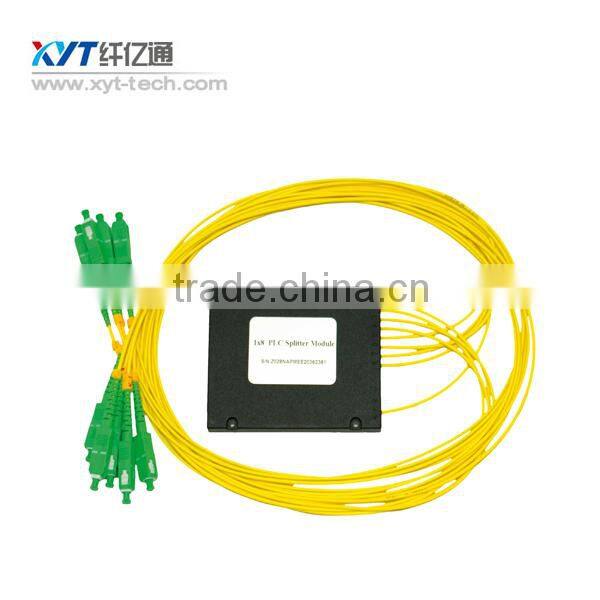

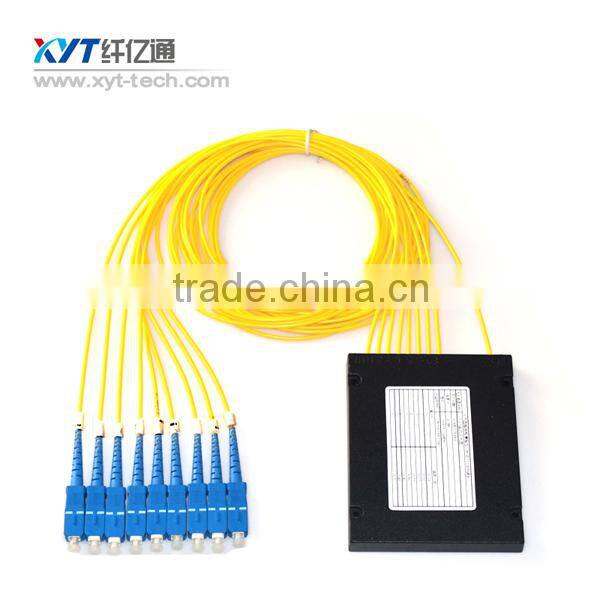

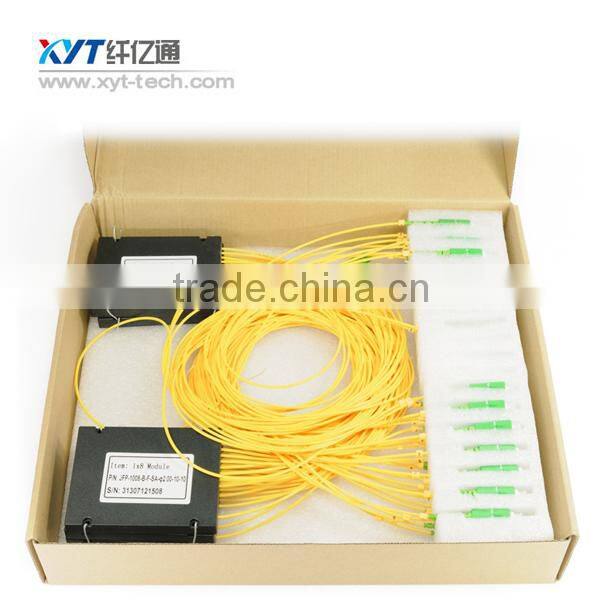

FTTx MINI Steel Tube 2* 8 fiber optic splitter
Features
Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Wide operating temperature
Compact design
Applications
FTTX Systems
LAN, WAN and metro networks
Analog/Digital passive optical networks
CATV networks
Other applications in fiber optic systems
Specification
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
Operating Wavelength (nm) |
1260~1650 |
|||||
Fiber Type |
G657A1 or customer specified |
|||||
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability (-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
Operating Temperature (℃) |
-40~85 |
|||||
Storage Temperature (℃) |
-40~85 |
|||||
Device Dimension (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
Module Dimension (mm) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
Mini-Module Dimension (mm) |
50×7×4 |
50×7×4 |
50×7×4 |
60×12×4 |
80×20×6 |
100×40×6 |
1.Specified without connectors.
2.Add an additional 0.15dB loss per connector.
Ordering information | |||||||
PLC |
Port |
Input Pigtall Style |
Input Connector |
Output Pigtll Style |
Fiber Length |
Output Connector |
Package type |
|
0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 1128=1x128 0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64 2128=2x128 |
0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special |
0=bare fiber 1=900um Loose tube 2=900um Jacket 3=2.0mmcable 4=3.0mmcable |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=LC/PC 7=LC/APC 8=E2000 S=Special |
A=4X4X40 B=4X7X50 C=4X12X60 D=4X7X60 E=6X20X80 F=100X80X10 G=120X80X18 H=140X115X18 I=19”1U Rack S=Special |
|
