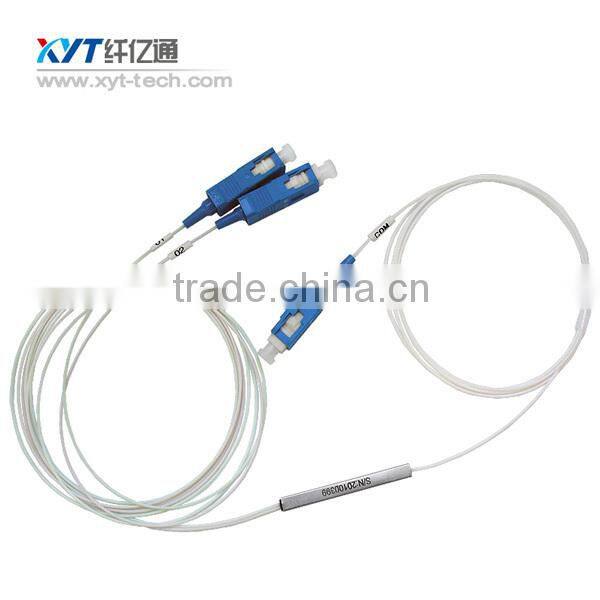

Chinese Plc 1*2 Mini Optical Splitter

Chinese Plc 1*2 Mini Optical Splitter thumbnail-1
Chinese Plc 1*2 Mini Optical Splitter photo-1
US$ 8 - 9 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XYT
Model Number:
XYT-B-1*2-1002
Contact Supplier Request Quote Chat Now
Sharetop Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name XYT
Model Number XYT-B-1*2-1002

chinese plc 1*2 mini optical splitter

Steel tube type plc splitter Features:

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telcordia GR-1221 and GR-1209

Steel tube type plc splitter Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Steel tube type plc splitter key features and the applications
Key Features Applications
 - Low IL Key Features - FTTX (FTTP, FTTH, FTTN, FTTC)
 - High reliability - Local Area Networks (LAN)
 - High channel counts - Test Equipment
 - Wide wavelength range - CATV
 - Large operating temperature range - Analog/Digital Passive Optical Networks (PON)
 - Excellent Environmental & Mechanical Stability



1×N Steel tube type plc splitter Specifications
Port Configuration ch 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type       SMF-28e, G652, G655, G657 (or Customized)
Operating Wavelength       1260~1650
IL dB ≤4.1 ≤7.4 ≤10.5 ≤13.5 ≤16.8 ≤20.4 ≤23.7
UL dB ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.3 ≤1.8 ≤2.1
PDL dB

≤0.2

 ≤0.2  ≤0.3 ≤0.3 ≤0.3  ≤0.4 ≤0.4
RL dB ≥55
Operating Temperature °C -40~+85
Storage Temperature °C -40~+85
Steel tube size mm

40*4*4

50*7*4

60*12*4




 chinese plc 1*2 mini optical splitter

chinese plc 1*2 mini optical splitter

Buying Guides

Why you choose us?

  Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.



 Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.



 Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.



   Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.



Terms of Payment :

 Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.

chinese plc 1*2 mini optical splitter



Delivery Time and Shippment:

3-5 workdays,customized products excepted.

chinese plc 1*2 mini optical splitter

Warranty:

All products have 3 years after-sale service During your first year’s usage,

free replacement or repair will be your right unless it is man-made problem.





Contact us

If you still have doubts about our company or our products, please feel free to inquire us. We will be very delighted to answer all your question.

chinese plc 1*2 mini optical splitter

chinese plc 1*2 mini optical splitter
