1x8 Mini Optical Splitter for Ftth System With Connector

FOB Price

US$ 11 - 12 / Piece

10 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	XYT
Model Number	XYT-B-1*8-1008

Product Description

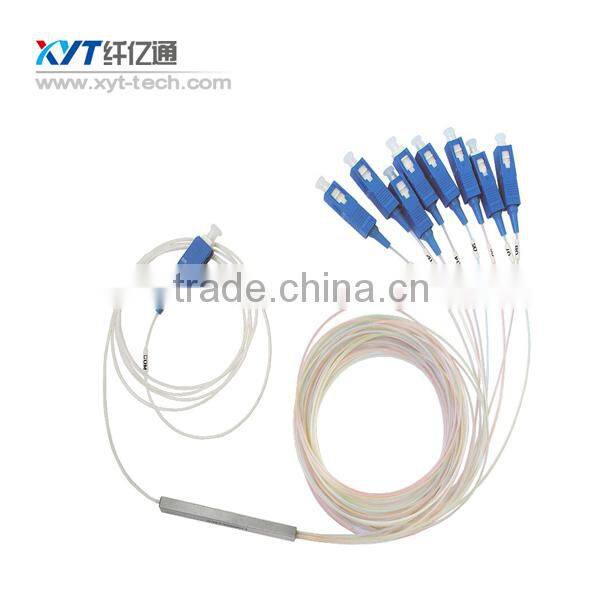

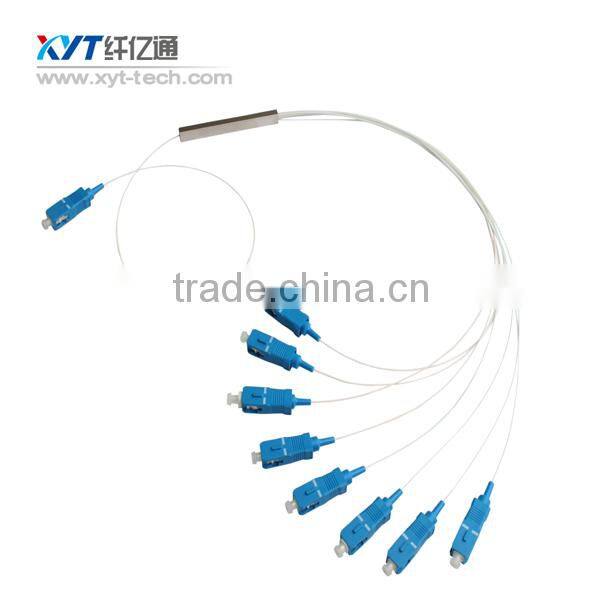

1x8 mini optical splitter for ftth system with connector

Steel tube type plc splitter Features:

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability Telcordia GR-1221 and GR-1209

Steel tube type plc splitter Application:

Fiber to The Home (FTTH)

Passive optical networks (PON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

Steel tube type plc splitter key features and the applications

Key Features	Applications
- Low IL Key Features	- FTTX (FTTP, FTTH, FTTN, FTTC)
- High reliability	- Local Area Networks (LAN)
- High channel counts	- Test Equipment
- Wide wavelength range	- CATV
- Large operating temperature range	- Analog/Digital Passive Optical Networks (PON)
- Excellent Environmental & Mechanical Stability

1×N Steel tube type plc splitter Specifications
Port Configuration	ch	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type		SMF-28e, G652, G655, G657 (or Customized)
Operating Wavelength		1260~1650
IL	dB	≤4.1	≤7.4	≤10.5	≤13.5	≤16.8	≤20.4	≤23.7
UL	dB	≤0.5	≤0.6	≤0.8	≤1.0	≤1.3	≤1.8	≤2.1
PDL	dB	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.4
RL	dB	≥55
Operating Temperature	°C	-40~+85
Storage Temperature	°C	-40~+85
Steel tube size	mm	4044 5074 60124

Buying Guides

Why you choose us?

Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.

Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.

Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.

Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.

Terms of Payment :

Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.

Delivery Time and Shippment:

3-5 workdays,customized products excepted.

Warranty:

All products have 3 years after-sale service During your first year’s usage,

free replacement or repair will be your right unless it is man-made problem.

If you still have doubts about our company or our products, please feel free to inquire us. We will be very delighted to answer all your question.
