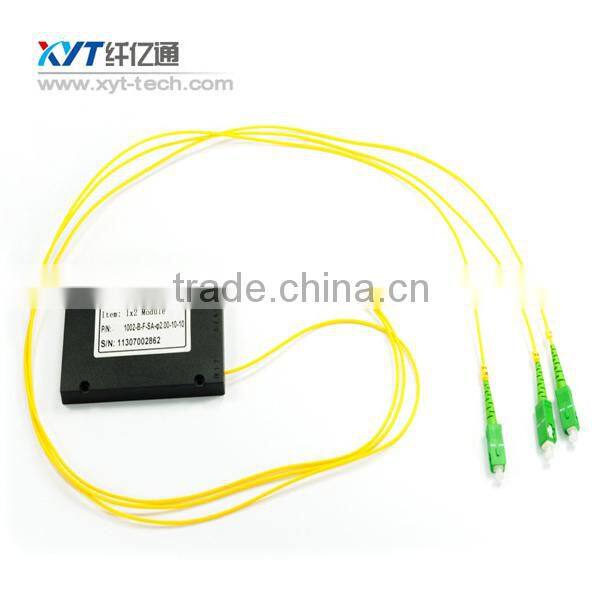

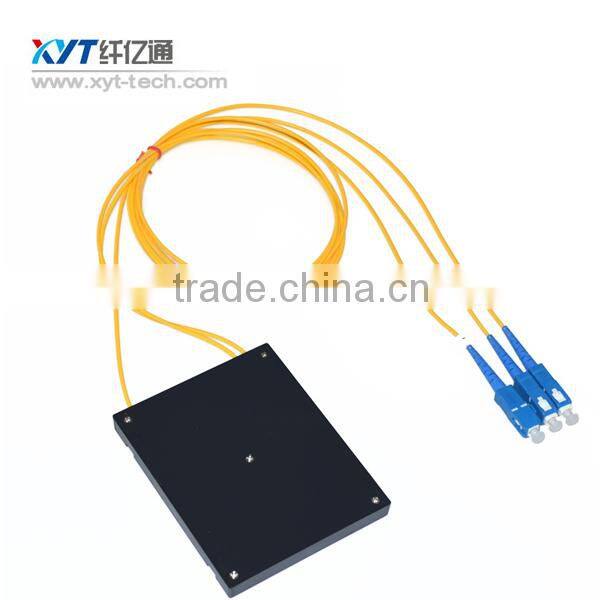

Optical Passive device Low Insertion Fiber Optical 1x2 PLC Splitter
Steel tube type plc splitter Specification
1)low IL&PDL
2)uniformity&high reliability
3)1260~1620nm wavelength
4) Steel Tube PLC Splitter :1x2,1x4,1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x32,2x64
Steel tube type plc splitter Features:
| - Low IL Key Features | - FTTX (FTTP, FTTH, FTTN, FTTC) |
| - High reliability | - Local Area Networks (LAN) |
| - High channel counts | - Test Equipment |
| - Wide wavelength range | - CATV |
| - Large operating temperature range | - Analog/Digital Passive Optical Networks (PON) |
| - Excellent Environmental & Mechanical Stability |
| Port Configuration | ch | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | SMF-28e, G652, G655, G657 (or Customized) | |||||||
| Operating Wavelength | 1260~1650 | |||||||
| IL | dB | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.5 | ≤16.8 | ≤20.4 | ≤23.7 |
| UL | dB | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.3 | ≤1.8 | ≤2.1 |
| PDL | dB | ≤0.2 |
≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 |
| RL | dB | ≥55 | ||||||
| Operating Temperature | °C | -40~+85 | ||||||
