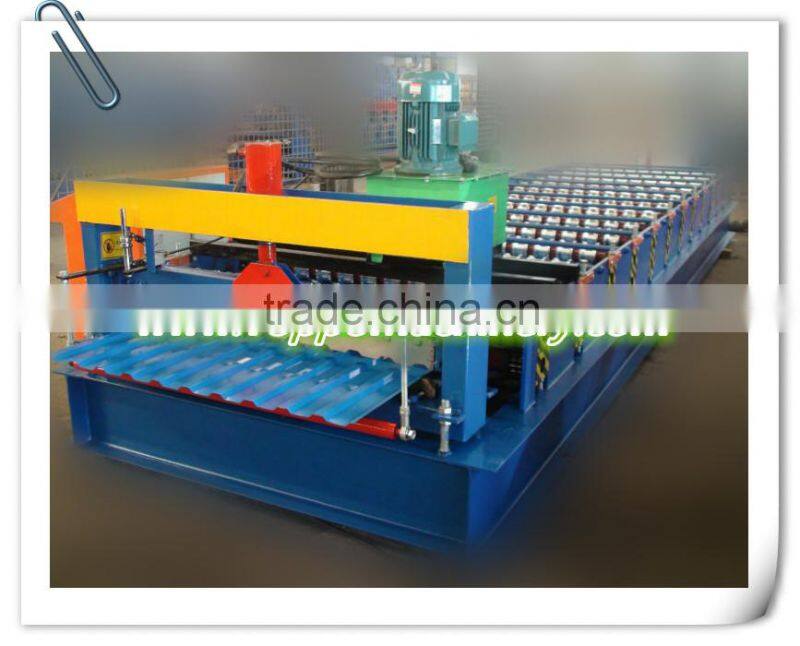

Trapezoidal Metal Wall Panel Roll Forming Machine Production Line

a. General

Model Number

YX12-108-864-1080 Trapezoidal Metal Wall Panel Roll Forming Machine Production Line

Suitable Material

Q235 or equivalent, 0.3-0.8 mm thickness

Material Width

1000-1250 mm

Wave Height

12mm

Covering Width

864mm or 1080 mm

Dimension

about 6.3*1.6*1.25 m (L*W*H)

Working Space

about 16.3*3.1 m (L*W)

Length Of Sheet

You can set the length according to your need, such as 1.5m, 3.2m or 6.7m. It is controlled by PLC, and can ensure the accuracy of ±1mm.

Automatically stop and cutting when it comes to the set length

Forming Speed

0-15 m/min

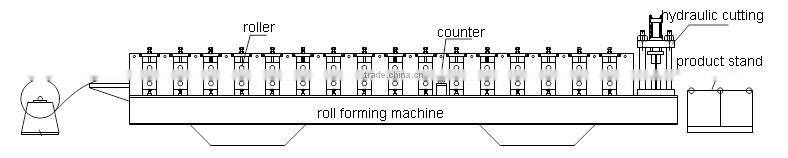

b. Components Details

Roller Material

High grade 45# steel. Treating process: finish turning-accurate grinding- polishing- hard chrome plating, 0.05 mm

Main Frame

350H steel. More stable, no shaking

Middle Plate

16 mm. we use bigger plates, to ensure stability

Shaft Material

Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.

Forming Steps

12

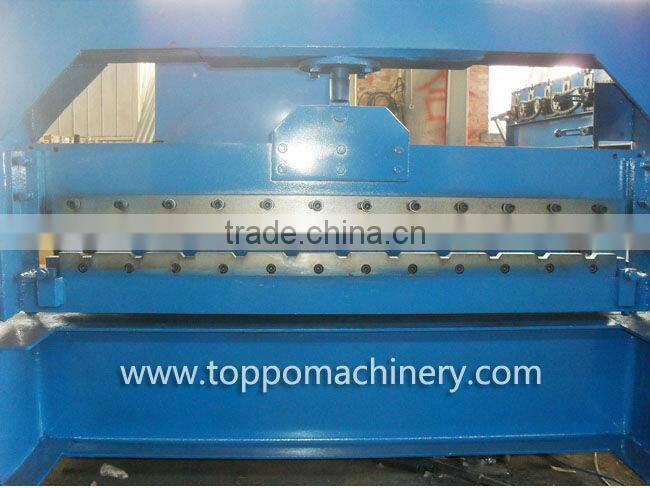

Cutting Blade Material

Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting

c. Electric Components

Suitable power

380V, 50 Hz, 3 phase or according to your need.

Screen

5.7 inch touch screen, easy to operate

PLC

Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.

Frequency converter

Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

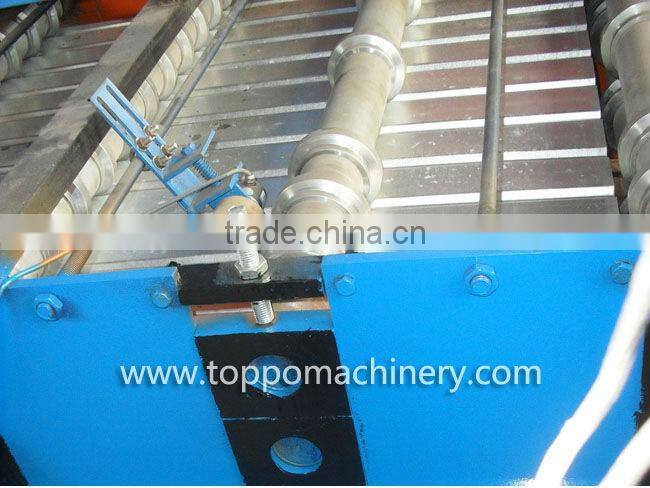

Length measurement device:

Omron, made in Japan. It features with high accuracy and stability
