Help CenterCold Metal Sheet Roll Forming Machine
Related Products
-
European Standard Color Steel Roofing Sheet Making Machine Made in ChinaUS$ 6,800 - 19,800MOQ: 1 Set -
Cangzhou Roofing Sheet Roll Forming Mahine for Steel BuildingUS$ 6,800 - 19,800MOQ: 1 Set
-
New Type R Panel Forming Machine Building and Construction EquipmentUS$ 6,800 - 19,800MOQ: 1 Set
-
New Roof & Wall Cladding Sheet Profile Roll Forming Machine 2015 New ProductsUS$ 6,800 - 19,800MOQ: 1 Set
-
European Style Aluzinc Roofing Machine With New TechnologyUS$ 6,800 - 19,800MOQ: 1 Set
1. Professional. |
We have specialized in roll forming machine since 1998. 15 years' rich experience, keep improving our quality. |
2. Low price |
a. the low labor cost, b. convenient transportation, and c. complete supporting industries, we can save your money from every part. |
|
3. Fully automatic, easy operation |
Our roll forming machines is equipped with PLC control to ensure high accuracy and easy operation. You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. Easy operation, steady performance. |
3. OEM / ODM |
OEM / ODM, customers’ design, color & logo are accepted. Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
4. TWO Years warranty, whole life service. |
Keep troubles far away from you. Within the TWO-YEARS period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge. |
a. General | |
| |
Model Number |
YX14-123-738 Cold Metal Sheet Roll Forming Machine |
Suitable Material |
Q235 or equivalent, 0.25-0.8 mm thickness |
Material Width |
914 mm |

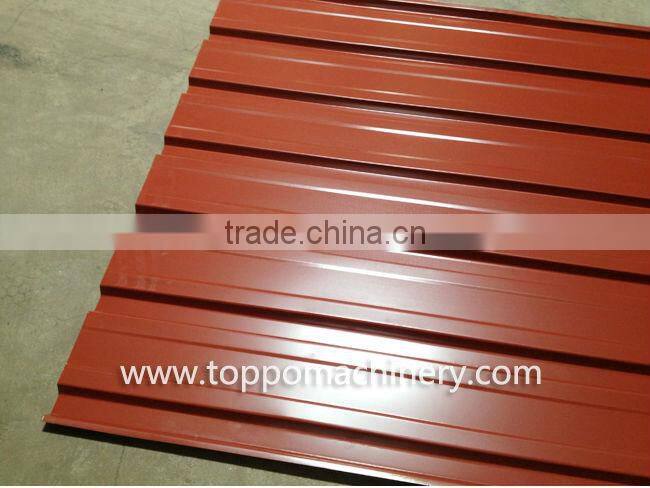

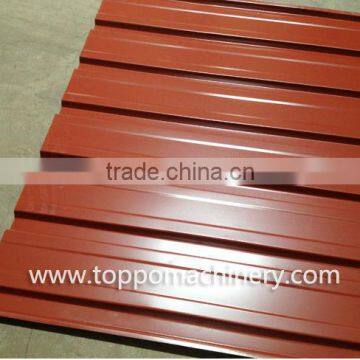

Wave Height |
14 mm |
Covering Width |
738 mm |
Dimension |
about 7.1*1.3*1.25 m (L*W*H) |
Working Space |
about 17.1*2.8 m (L*W) |
Length Of Sheet |
You can set the length according to your need, such as 1.5m, 3.2m or 6.7m. It is controlled by PLC, and can ensure the accuracy of ±1mm.Cutting |
| Cutting | Automatically stop and cutting when it comes to the set length |
Forming Speed |
0-15 m/min |
b. Components Details | |

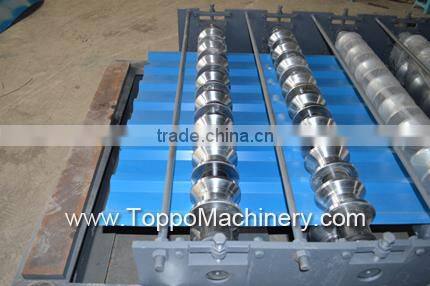

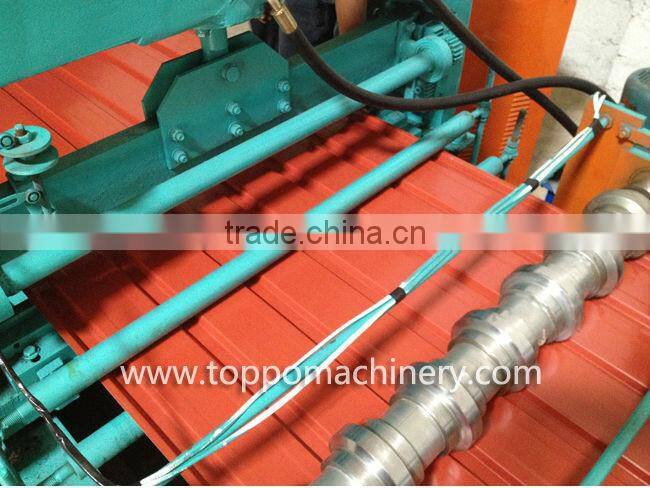

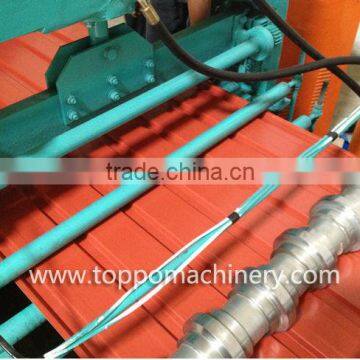

Roller Material |
High grade 45# steel. Treating process: finish turning-accurate grinding- polishing- hard chrome plating, 0.05 mm
|
Main Frame |
350 H steel. More stable, no shaking |
Middle Plate |
16 mm. we use bigger plates, to ensure stability
|
Shaft Material |
Φ70 mm, high grade 45# steel. |
Forming Steps |
14 |
Cutting Blade Material |
Cr12, hardness HRC60-62. |
Electric Components | |
Suitable power |
380V, 50 Hz, 3 phase or according to your need. |
Screen |
7 inch touch screen, easy to operate |
PLC |
Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length measurement device: |
Omron, made in Japan. It features with high accuracy and stability |
|
| |
