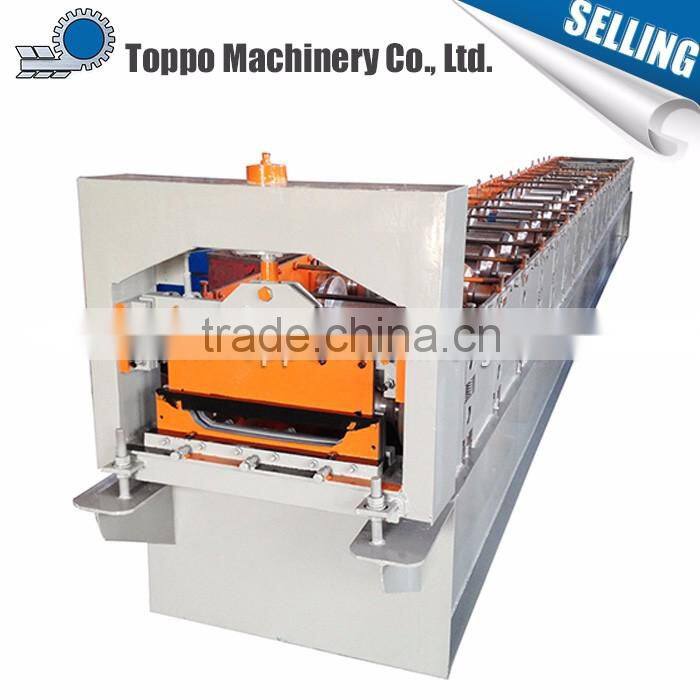

Construction High Speed Cold Steel Iron Roof Sheet Machine
- TIANJIN PORT
- T/T Money Gram Credit Card
You May Like
-
Great Building Material Customized Cnc Roof Metal Steel Machine
-
Great Building Material High Speed Cnc Roof Metal Steel Machine
-
China Supplies Great Building Material High Speed Cnc Metal Roof Panel Roll Forming Machine
-
IBR Professional Aluminium Roofing Sheet Roll Forming Machine
-
China Professional Building Used Metal Sheet Rolling Machine
-
Aluminium Professional Building Sheet Metal Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 0-10 m/min | Place of Origin | Hebei, China | |
| Brand Name | Toppo Machinery | Model Number | YX51-380-760 | |
| Power(W) | 3kw | Voltage | 380V, 50 Hz, 3 phase | |
| Dimension(L*W*H) | about 10.5*1.3*1.25 m (L*W*H) | Weight | 3.5T | |
| Certification | CE | Warranty | TWO Years warranty, whole life service | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Construction high speed cold steel iron roof sheet machine
| 1. The Product Description of cold steel iron roof sheet machine |
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3).Technical Detail
A. General
| Suitable Material | Pre-painted or galvanized steel sheet |
| Material Thickness | 0.3-0.8 mm |
| Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing |
| Dimension | About 9.7*0.7*1.1m(L*W*H) , as per the drawing |
| Working Space | About 19.7*2.2m(L*W) , as per the drawing |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting | Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45#steel. Hard chrome plating, 0.05mm. |
| Main Frame | 450# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
Treating process: tempering- finish turning, high rigidity, hard to deform. | |
Cutting Blade Material | Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 5.7 inch touch screen, easy to operate. |
| PLC | Delta DVP14ES |
well-adapted to various conditions, such as moisture, electromagnetic disturbance. | |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement Device | Omron, made in Japan. |
| It features with high accuracy and stability. |

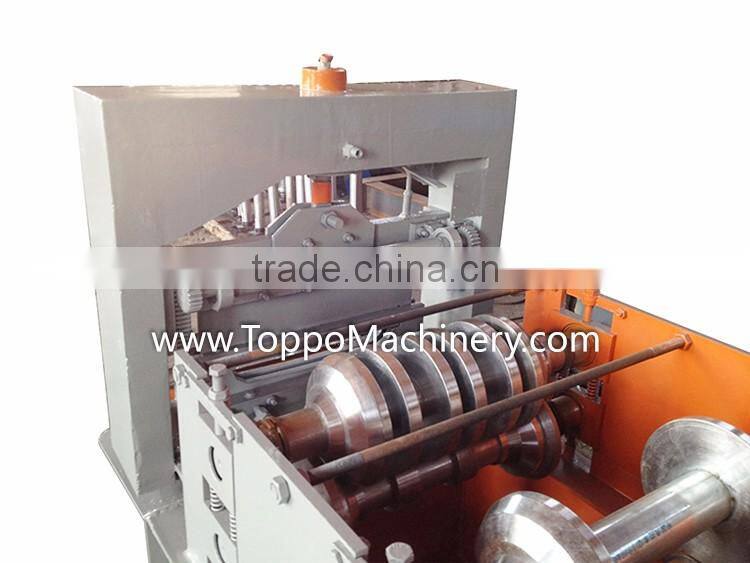

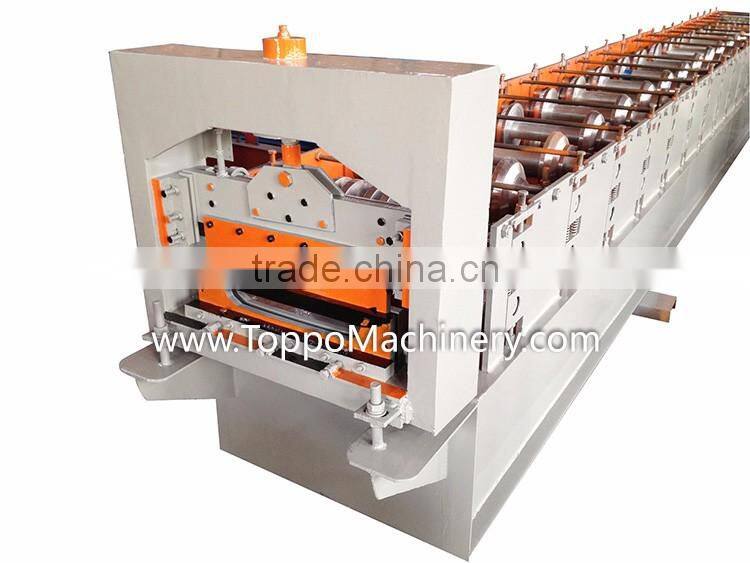

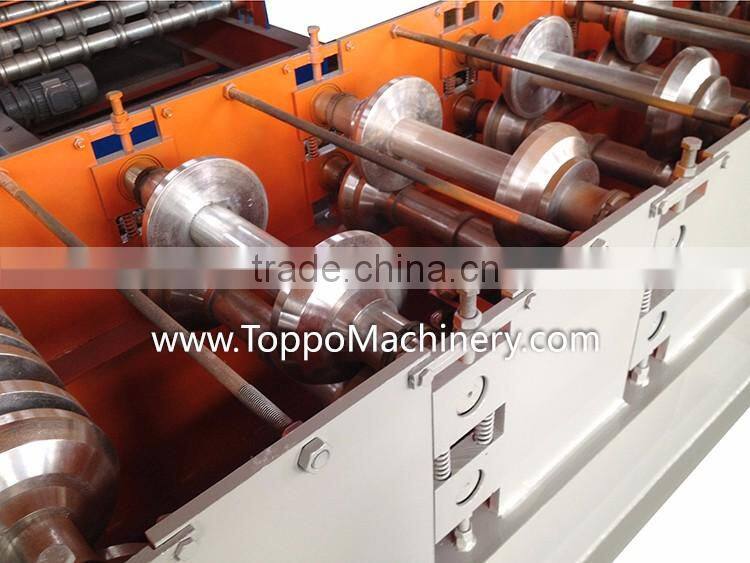

| 2. More Pictures of cold steel iron roof sheet machine |
| 3. The Application of cold steel iron roof sheet machine |
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
| 4. Other Products for Choosing |
Toppo Machinery Co.,Ltd. is a professional supplier for roll forming machine.
We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,
shutter door machine, floor decking machine and other associated equipment.
Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
Trapozoidal / IBR Panel Machine Corrugated Roll Forming Machine Glazed Tile Forming Machine
Double Layer Forming Machine C & Z Purlin Machine Floor Decking Machine
Roll Shutter Door Machine Crimping Machine Bending and Shearing Machine
| 5. About Our Company |
Toppo Machinery Co., Ltd. is a professional roll forming machine manufacturer.
We provide an extensive line of products, including roof and wall panel machine, tile roof machine,
purlin forming machine, shutter door machine, floor decking machine and other associated equipment.
Toppo Machinery offer excellent service in addition to quality products, which have made us
get a great number of satisfied clients all over the world. Roll former service and parts availability
are all critical items to the purchase of a new roll forming machine.Our products(except wearing parts)
come with one -year warranty. Within the one-year period, for any parts damaged due to quality problems,
we offer the replacement parts to the client free of charge.We offer technical support for the entire
life of our machines.
Technicians can be sent to install and train the workers in the clients'factories.
OEM /ODM service is available upon request.
1. Professional | 15 years' rich experience! a.Specialized in roll forming machine since 1998. b.Keeping improving the quality. |
2. Low price | Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
4. OEM / ODM | Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
5. One-Years warranty, whole life service | Keep troubles far away from you! Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
| 6. Loading into container for Roll Forming Machine |
A.Need one 40ft container.
B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered
with anti-rust oil.
C.Spare parts in carton box.
| 7. Our Customers |
Turkish Vietnam Thai Spanish Portugue German French Italian Russian Arabic Korean Japanese
| 8. Our Services |
A. One-Years product warranty.
B. Training and installation available.C. The technical support for the whole life.
| 9. FAQ |
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
| 10. Contact Us |
If you have need any more inforamtion, be free to contact us. we will reply within in 12 hours.
| Contact Us | |
| Jeffrey Yao | ||
| Company | Toppo Machinery Co., Ltd | |
| Address | No 16, Liberation Road, Botou City, Hebei, China | |
| 0086-15631793989 | ||
| website | ||
