Professional Construction Double Roof Sheet Equipment

Name: Professional Construction Double Roof Sheet Equipment
Brand: Toppo Machinery
Availability: InStock

FOB Price

US$ 16,800 - 24,600 / Set

1 Set(Min. Order)

Port TIANJIN PORT
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Roof
Production Capacity	15-20 m/minute	Place of Origin	Hebei, China
Brand Name	Toppo Machinery	Model Number	Double Layer Machine
Power(W)	3 kw	Voltage	380V, 3 phase, 50hz
Dimension(LWH)	about 7.21.31.6 m	Weight	about 2.5-3.8 ton
Certification	CE	Warranty	2 years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Professional Construction double roof sheet equipment

Product Description

1. The Product Description of Roll Forming Machine

(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

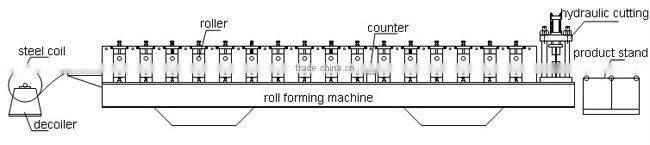

(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

(3).Technical Detail

A. General

Suitable Material	HRB60 or equivalent
Material Thickness	0.2-0.6 mm
Dimension	About 7.21.31.1m(LWH) , as per the drawing
Length of the Sheet	You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.
Cutting	Automatically stop and cutting when it comes to the set length.

B. Components Details

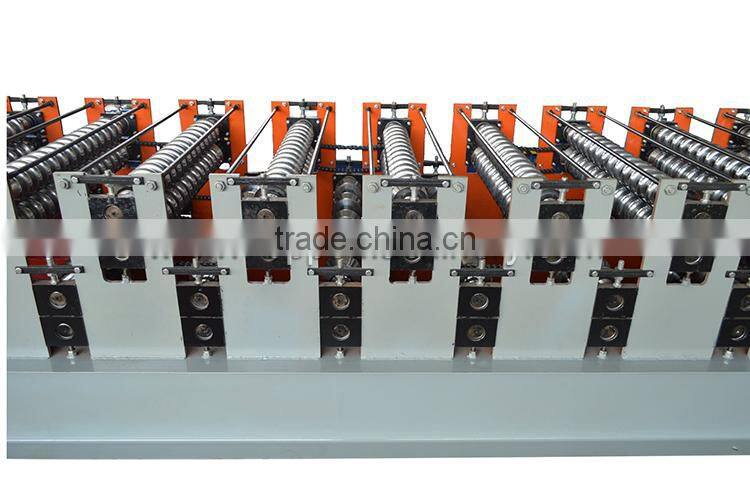

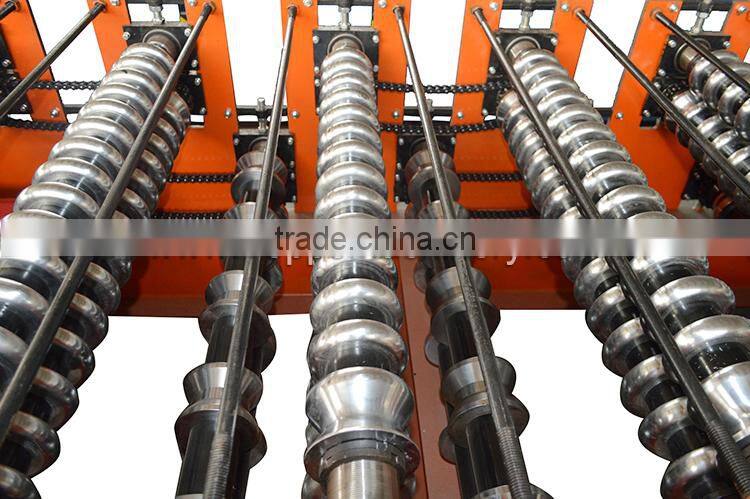

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel.
Shaft Material	Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62.
Cutting Blade Material	Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power	380V, 50 Hz, 3 phase or according to your need.
Screen	7 inch touch screen, easy to operate.
PLC	Delta DVP14ES
PLC	Well-adapted to various conditions, such as moisture, electromagnetic disturbance.
Frequency Converter	Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
Length Measurement Device	Omron, made in Japan.
Length Measurement Device	It features with high accuracy and stability.

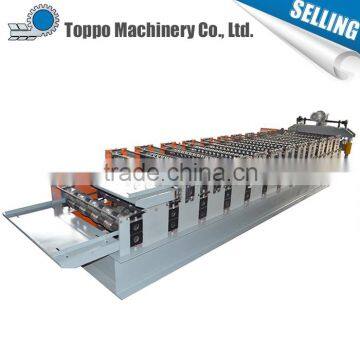

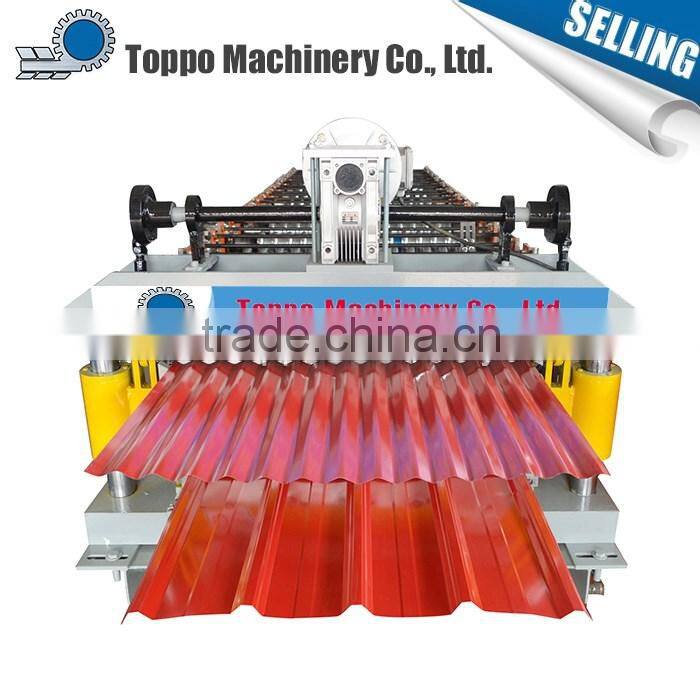

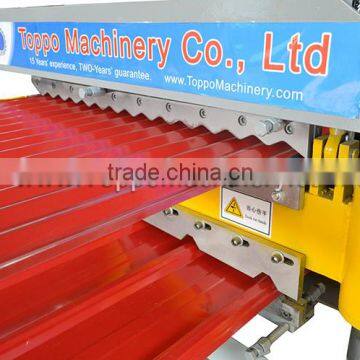

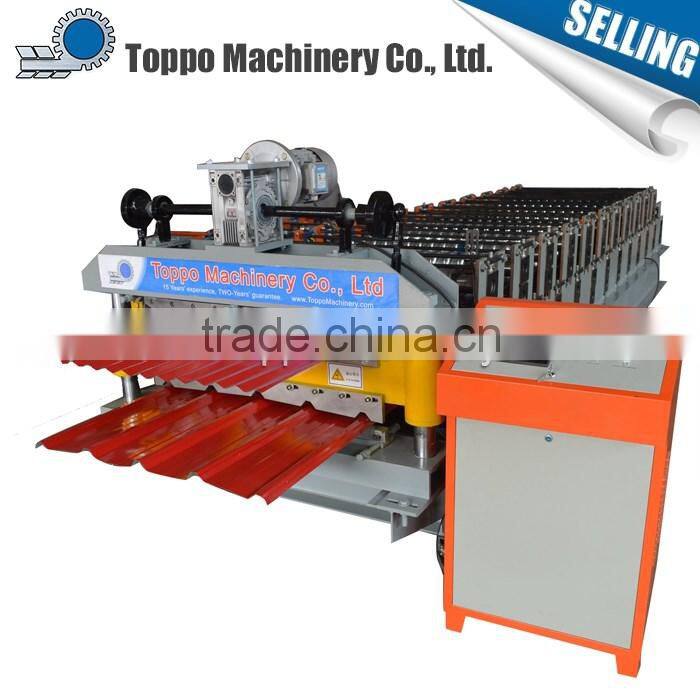

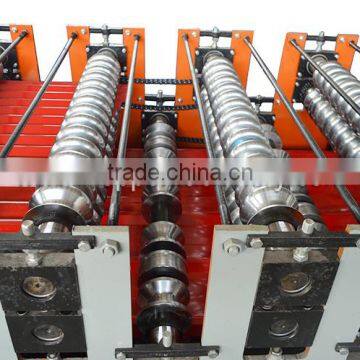

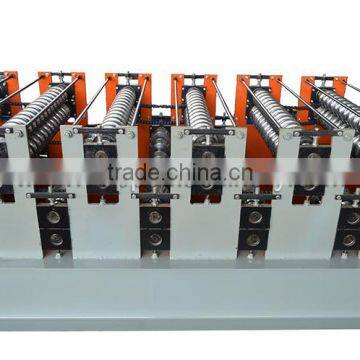

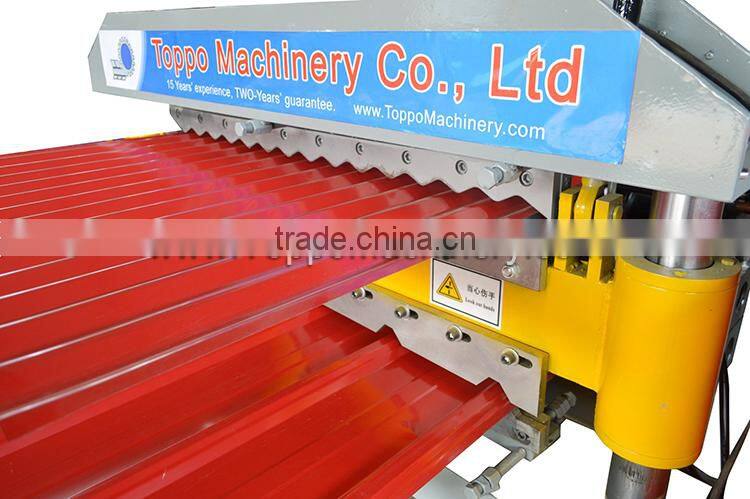

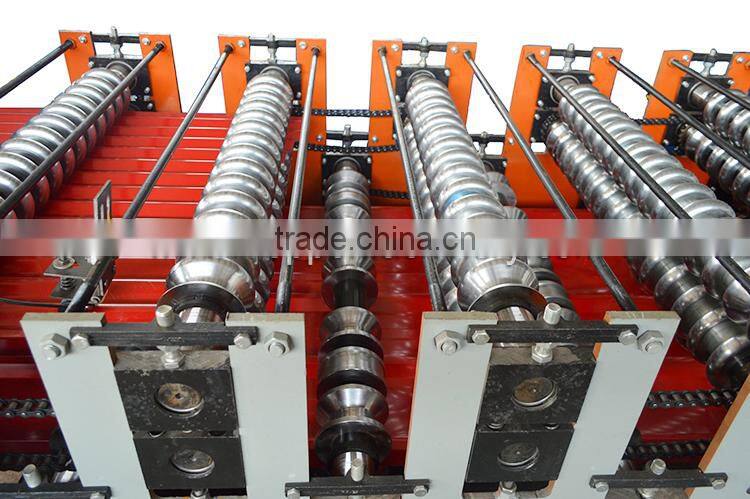

2. More Pictures of Roll Forming Machine

3. The Application of Roll Forming Machine

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

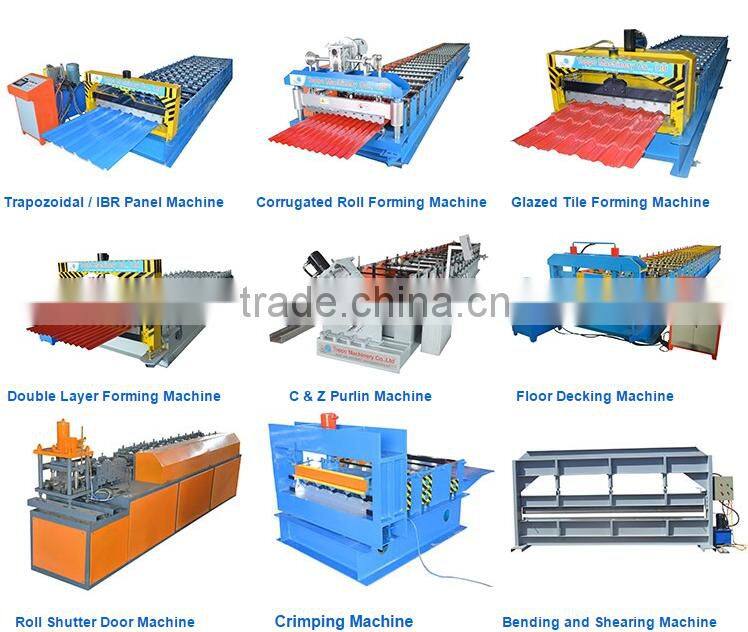

4. Other Products for Choosing

Toppo Machinery Co.,Ltd. is a professional supplier for roll forming machine.

We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,

shutter door machine, floor decking machine and other associated equipment.

Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.

Company Information

5. About Our Company

Toppo Machinery Co., Ltd. is a professional roll forming machine manufacturer.

We provide an extensive line of products, including roof and wall panel machine, tile roof machine,

purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Toppo Machinery offer excellent service in addition to quality products, which have made us

get a great number of satisfied clients all over the world. Roll former service and parts availability

are all critical items to the purchase of a new roll forming machine.Our products(except wearing parts)

come with one -year warranty. Within the one-year period, for any parts damaged due to quality problems,

we offer the replacement parts to the client free of charge.We offer technical support for the entire

life of our machines.

Technicians can be sent to install and train the workers in the clients'factories.

OEM /ODM service is available upon request.

1. Professional	*15 years' rich experience!* a.Specialized in roll forming machine since 1998. b.Keeping improving the quality.
2. Low price	*Save your money from every part!* a. Low labor cost; b. Convenient transportation; c. Complete supporting industries.
3. PLC	*Ensuring high accuracy and easy to operate!* Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM	*Customers’design, color & logo are also accepted!* Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service	*Keep troubles far away from you!* *Within the One-YEAR period,* we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

Packaging & Shipping

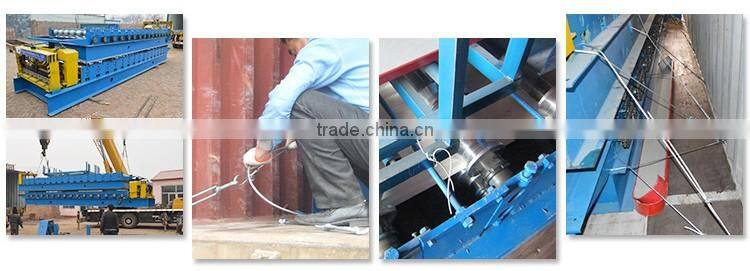

6. Loading into container for Roll Forming Machine

A.Need one 40ft container.

B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered

with anti-rust oil.

C.Spare parts in carton box.

7. Our Customers

Turkish Vietnam Thai Spanish Portugue German French Italian Russian Arabic Korean Japanese

8. Our Services

A. One-Years product warranty.

B. Training and installation available.C. The technical support for the whole life.

FAQ

9. FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

10. Contact Us

If you have need any more inforamtion, be free to contact us. we will reply within in 12 hours.
