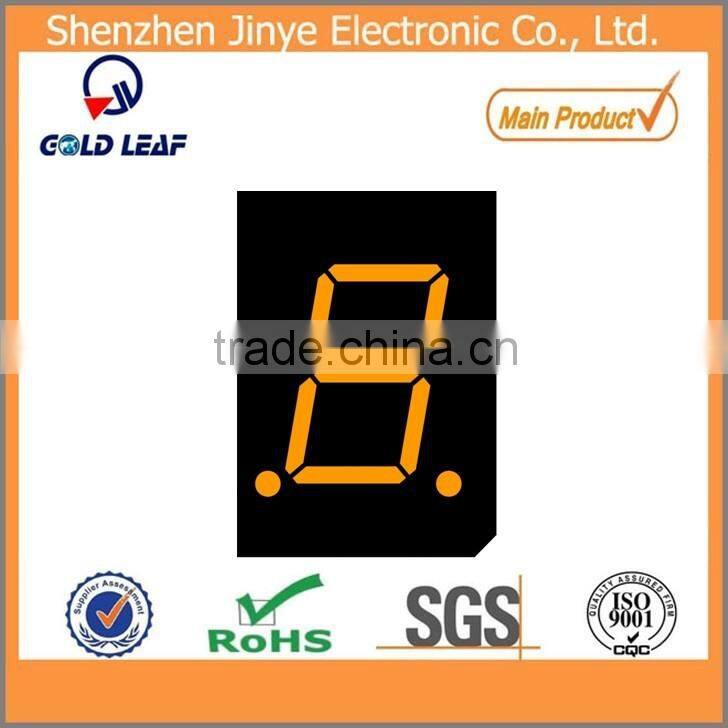

Help CenterSingle Digit 7 Segment Led Display Orange Color Numeric Display
Related Products
-
0.56" 7 Segment White ColorUS$ 0.1 - 1MOQ: 1000 Pieces -
0.5" Single Digital Led Display Blue ColorUS$ 0.1 - 0.36MOQ: 1000 Pieces
-
Super Bright 7 Segment Led DisplayUS$ 0.1 - 1MOQ: 1000 Pieces
-
Display Seven SegmentUS$ 0.1 - 0.31MOQ: 1000 Pieces
-
Led Single Digit DisplayUS$ 0.1 - 0.25MOQ: 1000 Pieces
0.6" single digit 7 segment led display
Specification
1. Description
Emitting color: green, red, blue, yellow, orange and white
Lens color: black or gray
Size: 0.28~8 inch(1 digit) , for other sizes, we can do OEM for you!
PCB Polarity: common anode/cathode upon your requirement
2. (Ta=25°C)Absolute Maximum Ratings:
Power Dissipation……………………………………….. 50mW
Peak Forward Current………………………................... 100mA
Reverse Voltage……………………………………....... .. 5V
Operating Temperature……………………………........ -25°C~+85°C
Storage Temperature………………………………........ -30°C~+85°C
Storage Humidity……………………………………..... 45~85%
3. (Ta=25°C)Electrical-Optical Characteristics:
Parameter |
Test CONDITING |
Symbol |
Min |
Type |
Max |
Unit |
Luminous Intensity |
IF=20mA |
IV |
- |
10 |
- |
mcd |
DC Forward Voltage |
IF=20mA |
VF |
2.9 |
3.2 |
3.6 |
V |
DC Reverse Current |
VR = 5V |
IR |
- |
- |
100 |
uA |
Wavelength Characteristic |
IF=20mA |
λp |
- |
465 |
- |
nm |
|
Suggestion Forward Current
|
- |
IF(Sug) |
5 |
10 |
20 |
mA |
We guarantee:
1. Your inquiry related to our products will be replied in 24 hours
2. Experienced staffs to answer your inquiries in fluent English
3. Providing OEM and ODM service for more than 10 years
4. Protection of your sales area, ideas of design and all your private information
5. No matter big order or small order, we will serve you with best quality and best service
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin
7. Life span: 100,000 hours
we offer sample for test.
