0.56" 7 Segment White Color

0.56" 7 Segment White Color photo-1
US$ 0.1 - 1 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JY
Model Number:
JYB5611W-B7-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JY
Model Number JYB5611W-B7-2
Usage Indoor
Tube Chip Color Other, white
Display Function Other, numbers
Pixels 20mm

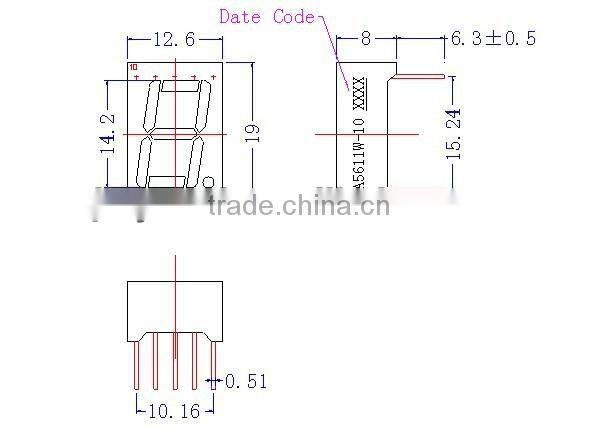

Screen Dimension 19.0*12.6mm

0.56 inch single digit 7 segment led display



Specification



1. Description
Emitting color: green, red, blue, yellow, orange and white

Lens color: black or gray
Size: upon your requirement

0.28~8 inch(1 digit) , for other sizes, we can do OEM for you!

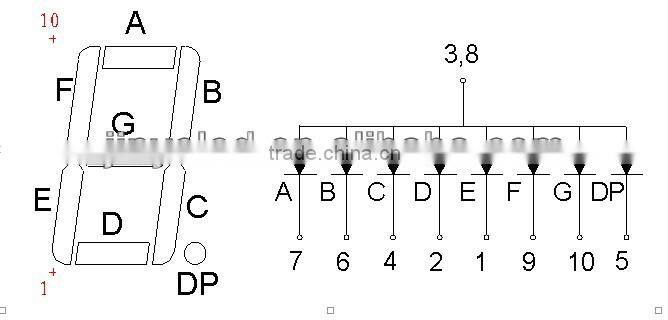

PCB Polarity: common anode/cathode upon your requirement



2. (Ta=25°C)Absolute Maximum Ratings:



Power Dissipation………………………………………..   50mW



Peak Forward Current………………………................... 100mA



Reverse Voltage……………………………………....... ..   5V



Operating Temperature……………………………........  -25°C~+85°C



Storage Temperature………………………………........  -30°C~+85°C



Storage Humidity…………………………………….....    45~85%





3. (Ta=25°C)Electrical-Optical Characteristics:



Parameter

Test CONDITING

Symbol

Min

Type

Max

Unit

 Luminous Intensity

IF=20mA

IV

-

10

-

mcd

DC Forward Voltage

IF=20mA

VF

2.9

3.2

3.6

V

DC Reverse Current

VR = 5V

IR

-

-

100

uA

Wavelength Characteristic

IF=20mA

λp

-

465

-

nm

Suggestion Forward Current



-

IF(Sug)

5

10

20

mA

 0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color



0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color0.56" 7 segment white color



We guarantee:

1. Your inquiry related to our products will be replied in 24 hours
2. Experienced staffs to answer your inquiries in fluent English
3. Providing OEM and ODM service for more than 10 years
4. Protection of your sales area, ideas of design and all your private information
5. No matter big order or small order, we will serve you with best quality and best service
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin

7. Life span100,000 hours



We offer samples for test.
