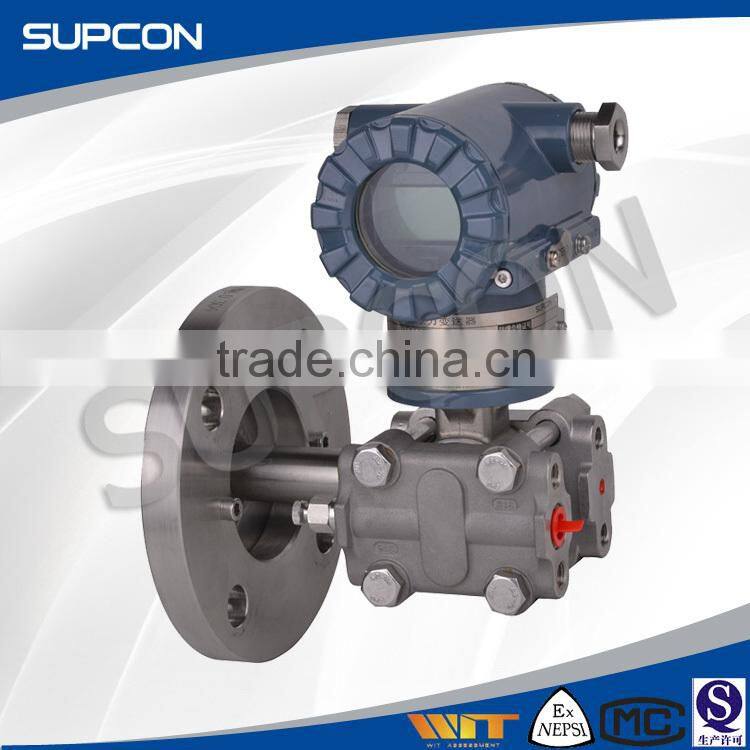

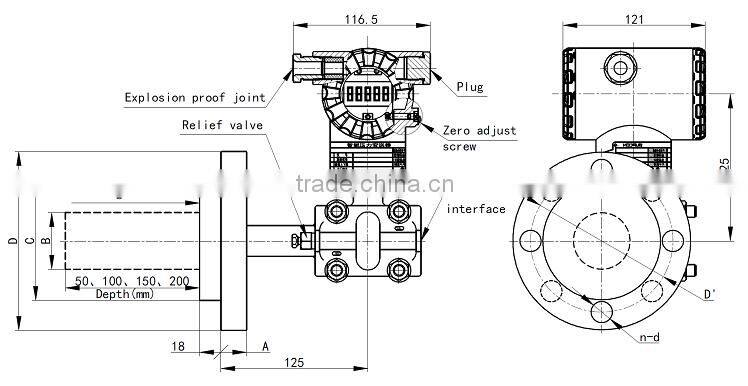

The mounting flange of CJT FL flanged level transmitter adopts ANSI2-, 3-, 4-in. (with the flange rating Class 150 lb, Class 300 lb and Class 600 lb) or DN50, 80 or 100mm (with the flange rating PN1.6, PN6.4MPa and PN10MPa). Other special mounting flange can also be offered according to your requirement.

(Zero-based calibrated ranges, reference conditions, silicone oil fill, 316L SST isolating diaphragms and 4 to 20mA analog output in linear mode.)

Range, Sensor Limits and Overpressure/Static Pressure Limits

Note1: LRL= Lower Range Limit; URL= Upper Range Limit.

Note2: Range code 7 is for pressure measurement, and the minimum in both of the URL and the flange rating is taken as its overpressure limit.

Accuracy

±0.2% of span

Stability

±0.2% of URL for 12 months

Span Turn-down Capacity

Up to 6:1

Temperature Effect

±0.4%URL/10℃

Static Pressure Effect

±0.3% of URL

Wetted Materials

Isolating diaphragms:

316L SST, Hastelloy C, tantalum, titanium

Drain/Vent valves:

316 SST

Process flanges and adapters:

316 SST

Wetted o-rings:

Nitrile rubber

Flange:HG 20592(DIN), HG 20615(ANSI)

Non-wetted Materials

Fill fluid:

Silicone oil

Nuts and bolts:

Stainless steel

Electronics housing:

Low-copper aluminum

Cover o-rings:

Nitrile rubber

Process Connections

High pressure side:

ANSI2-, 3- or 4-in., Class 150 lb, 300 lb or 600 lb flange; DN50, 80 or 100mm, PN1.6, 6.4MPa or PN10MPa flange

Low pressure side:

¼-18NPT on flange ½-14NPT on adapter

Connector (Optional)

Oval flange:

½-14 NPT female thread oval flange

T-shaped adapter:

M20×1.5 T-shaped male thread connecting block with ø14 induced pressure tube welded behind
