Performance Specifications |
(Zero-based calibrated ranges, reference conditions, silicone oil fill, 316L SST isolating diaphragms and 4 to 20mA analog output in linear mode.)
Range, Sensor Limits and Static Pressure
Range Code |
Span (kPa) |
Range (kPa) |
Static Pressure(MPa) |
||
Min. |
Max. |
LRL |
URL |
||
4 |
0.935 |
37.4 |
-37.4 |
37.4 |
25 or 32 |
5 |
4.67 |
186.8 |
-186.8 |
186.8 |
25 or 32 |
6 |
17.24 |
690 |
-690 |
690 |
25 or 32 |
7 |
51.7 |
2068 |
-2068 |
2068 |
25 or 32 |
Accuracy
For spans not greater than 10:1 of URL: ±0.1% of span
For spans greater than 10:1 of URL: ± [0.1+ 0.1 × (URL / span -10)] % of span
Stability
±0.1% of URL for 12 months
Span Turn-down Capacity
Up to 40:1, less than 10:1 is recommended.
Temperature Effect
For spans not greater than 10:1 of URL: ±0.1%URL/10℃
For spans greater than 10:1 of URL: ±0.2%URL/10℃
Static Pressure Effect
±2% of URL/32MPa
Physical Specifications |
Wetted Materials
Isolating diaphragms:
316L SST, Hastelloy C
Drain/Vent valves:
316 SST
Process flanges and adapters:
316 SST
Wetted o-rings:
Nitrile rubber
Non-wetted Materials
Fill fluid:
Silicone oil
Nuts and bolts:
Stainless steel
Electronics housing:
Low-copper aluminum
Cover o-rings:
Nitrile rubber
Process Connections
Flanged process connection: ¼-18NPT
Weight
About 3.5kg (Excluding options)
Connector (Optional)
Oval flange:
½-14 NPT female thread oval flange
T-shaped adapter:
M20×1.5 T-shaped male thread connecting block with ø14 induced pressure tube welded behind
Mounting bracket: Bend Bracket, Pipe Mounted (2 in.), Flat Bracket, Pipe Mounted (2 in.)

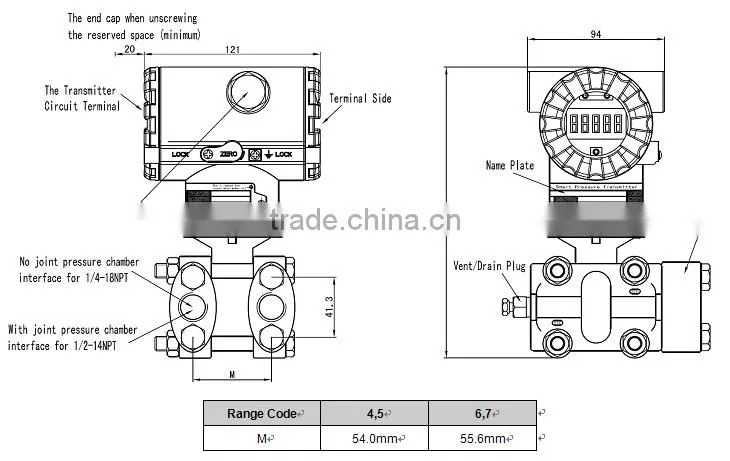

Dimensions |
Typical Mounting |
Flat bracket, pipe mounted
Bend bracket, pipe mounted
Bend bracket, panel mounted
Q: Are you a manufacture or a trading company?
A: We are a 20-year-manufacturer engaged in the field of cleaning products, and we have got the permit of import and export as well.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou, China. 25 Minutes by car far away from Xiaoshan Airport.
Q: How can I get the With quality warrantee factory directly pressure transmitter for air and water applications samples? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days..
Q: Do you provide With quality warrantee factory directly pressure transmitter for air and water applications ODM/OEM service?
A: OEM/ODM is welcome, there are 25 persons in our R&D team, and customized colours is optional. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
