Home > Instruments & Meters > Test Instrument > Test Machine > HD5573 TEMPERATURE CONVERTER Isolated Barrier

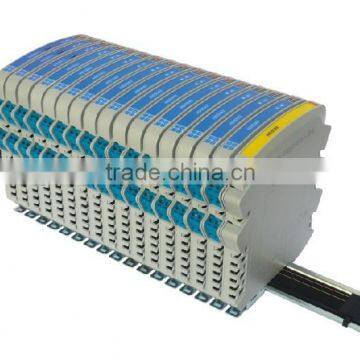

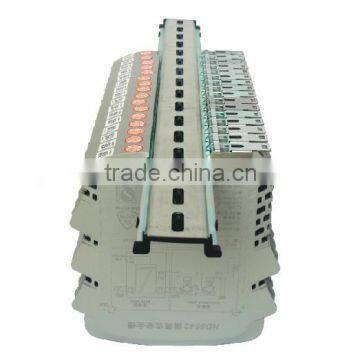

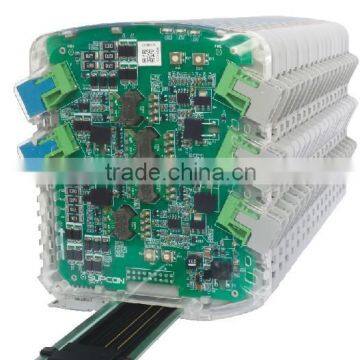

HD5573 TEMPERATURE CONVERTER Isolated Barrier
US$ 150 - 151
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SUPCON
Model Number:
HD5573
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD5575 Temperature Converter Signal Isolator With 4~20mA OutputUS$ 80 - 100MOQ: 20 Pieces -
SUPCON Single Anolog Input Signal Isolator SB3041EX 4~20mAUS$ 50 - 60MOQ: 10 Pieces
-
HD5542US$ 150 - 151MOQ: 20 Pieces
-
SUPCON SB3041 Isolated BarrierUS$ 135 - 136MOQ: 20 Pieces
-
SUPCON HD5544US$ 150 - 151MOQ: 20 Pieces
Place of Origin
Zhejiang, China
Brand Name
SUPCON
Model Number
HD5573
| HD5573 TEMPERATURE CONVERTER | ||||||||||||||
| 1 | Number of channels 1 Location of switches Zone0, IIC, T4-T6 hazardous area Div 1, Group A, hazardous location Power supply (20~35)VDC Max current consumption 40mA at 24VDC Signal source 3-wire Pt100, Pt1000 or Cu50 RTDs to BS1904/DIN 43760; Types J, K, T, E, R, S, B or N THCs to IEC58; (-75~75)mV (0~2200) RTD excitation current 500μA nominal Output range 4 to 20mA nominal into 450Ù max Response time About 500ms |
|||||||||||||
| 2 | Cold junction compensation Automatic, with error of 1.0 Over range output Bottom limit: 3.6mA Top limit: 21.6mA Sensor burnout indication Downscale default, upscale selectable Upscale valve: 22mA Downscale valve:3.2mA Common mode rejection 120dB for 240V at 50Hz Series mode rejection 40dB for 50Hz Calibration accuracy Inputs: mV/THC: ±15μV or ±0.05% of input value (whichever is greater) Cu50/ Pt100: ±80m Pt1000: ±400m Output: ±11ìA |
|||||||||||||
| 3 | Temperature drift Inputs: MV/THC: 0.003% of input value/ Cu50/Pt100: ±7m / Pt1000: ±40m / Output: ±0.6ìA/ LED indicators PWR green for power on indication STS green for normal working indication, blinking green for over range indication, red for error indication |
|||||||||||||
| 4 | Isolation 250V AC/DC between safe and hazardous area circuits NEPSI max approval parameters Terminals 1~4: U =7.1V I =16mA C =14.6ìF O O O L =100mH P =29mW O O Environmental Limits Operation temperature: (-20~60) Storage temperature: (-40~80) Relative humidity: (5~95)%RH Application Pt100, Pt1000 or Cu50 RTDs; Types J, K, T, E, R, S, B or N THCs. |
|||||||||||||
| Item Name | HD5573 TEMPERATURE CONVERTER | |||||||||
| Material | Plastics | |||||||||
| Size | 127.5mm×118.9mm×12.7mm | |||||||||
| Color | Gray/Blue | |||||||||
| Process |
Casting,Stamping,Polishing,Filling Silicon Oil, Painting,Assembly,Calibrating,Packaging |
|||||||||
| Custom Desigh | Welcome | |||||||||
| Service | OEM&ODM | |||||||||
| MOQ | 20 pcs | |||||||||
| Sample | Available | |||||||||
|
Sample Cost,The cost will be returned after placing an order |
USD130 | |||||||||
| Sample Lead Time | 7-15 Days | |||||||||
| Payment Terms | T/T, LC at sight,west union,paypal | |||||||||
| Packing | carton package with protection material | |||||||||
| Production Time | 15-30 Days | |||||||||
| Delivery Port | Ningbo or Shanghai | |||||||||
